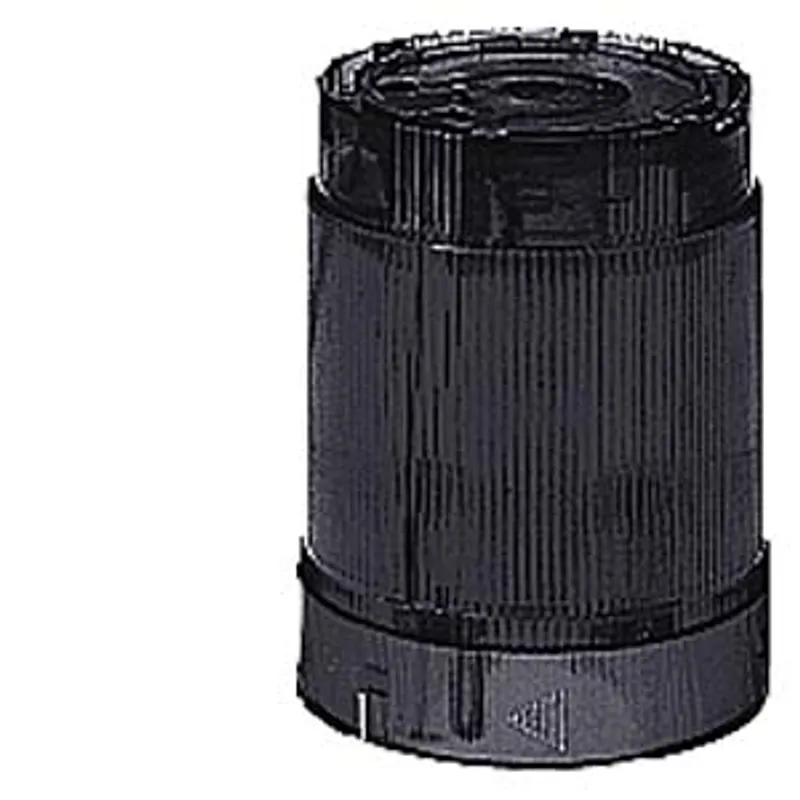

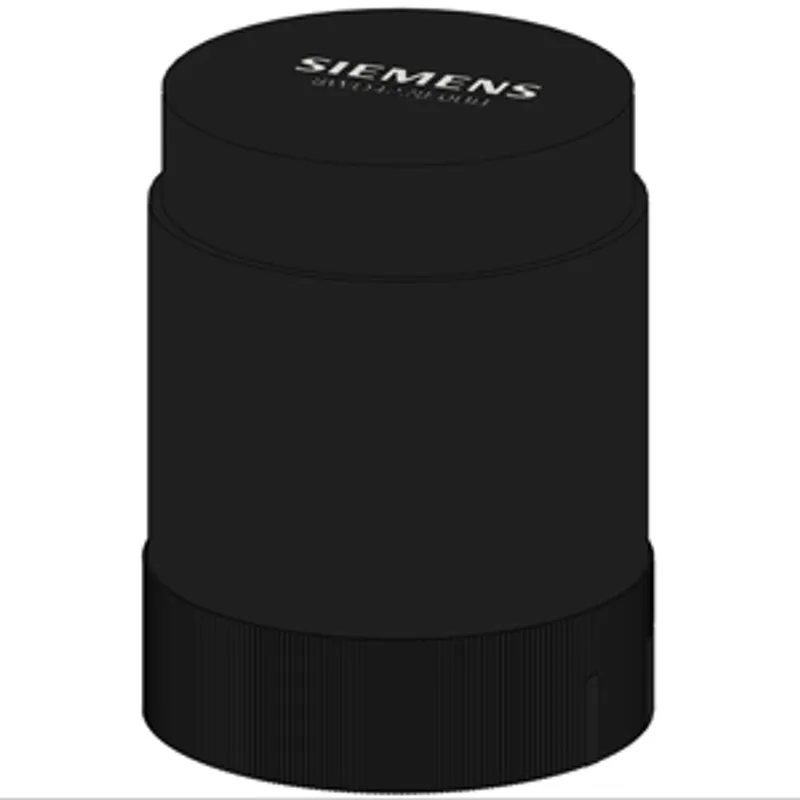

Siemens 8WD4228-0BB
AS-Interface adapter element, black, with external auxiliary voltage, for 4 signaling elements, 24 V DC
- MPN
- 8WD4228-0BB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WD4228-0BB?
AS-Interface adapter element, black, with external auxiliary voltage, for 4 signaling elements, 24 V DC
Specifications
General
| product brand name | SIRIUS |
| product designation | AS-Interface module |
General technical data
| type of voltage of the operating voltage | DC |
| operating voltage — at DC rated value | 18.5 ... 31.6 V |
| operating voltage — 1 at DC rated value | 24 V |
| consumed current maximum | 50 mA |
| reference code according to EN 61346-2 | B |
Communication
| design of the interface AS-Interface protocol | Yes |

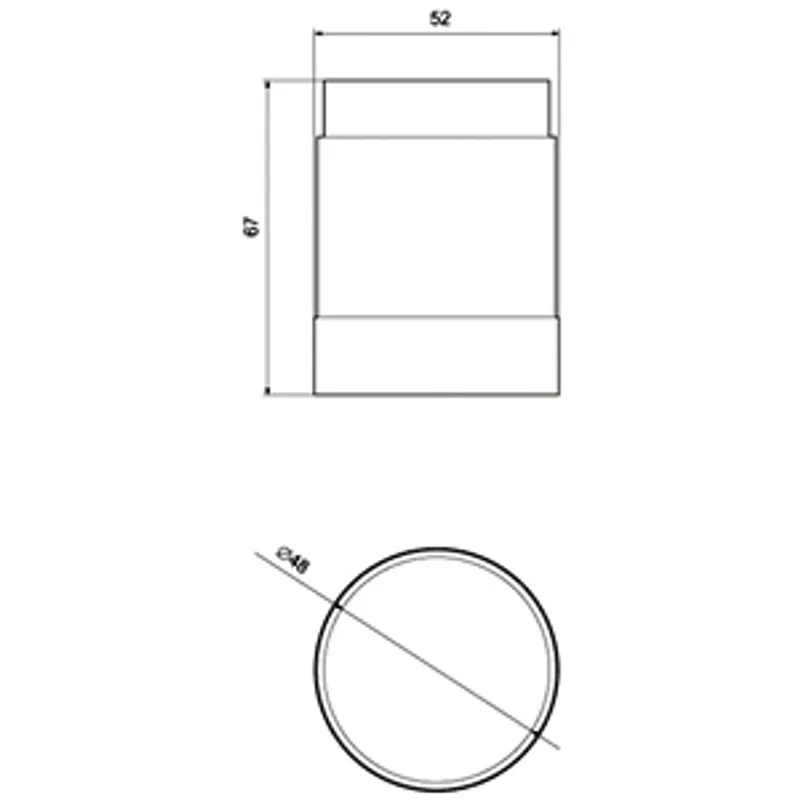

Enclosure
| height | 67 mm |
| width | 52 mm |
| outer diameter of the signal column element | 50 mm |
| material | PC |
| color | black |
| fastening method | Bayonet |
| protection class IP | IP54 |
Ambient conditions
| ambient temperature during operation | -20 ... +50 °C |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| Siemens eco profile (SEP) | Siemens EcoTech |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8WD4228-0BB: frequently asked questions
When can 8WD4228-0BB be shipped?
8WD4228-0BB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8WD4228-0BB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8WD4228-0BB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8WD4228-0BB, subject to availability and destination.
