Siemens 8WD4240-5AB
Continuous light element, with integrated LED, red, 115 V AC, Diameter 50 mm
- MPN
- 8WD4240-5AB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WD4240-5AB?
Continuous light element, with integrated LED, red, 115 V AC, Diameter 50 mm
Specifications
General
| product brand name | SIRIUS |
| product designation | Continuous light element |
| design of the product | including light sources |
General technical data
| type of voltage of the operating voltage | AC |
| operating voltage — 1 at AC at 50 Hz rated value | 115 V |
| operating voltage — 1 at AC at 60 Hz rated value | 115 V |
| relative positive tolerance of the operating voltage | 10 % |
| relative negative tolerance of the operating voltage | -10 % |
| consumed current maximum | 25 mA |

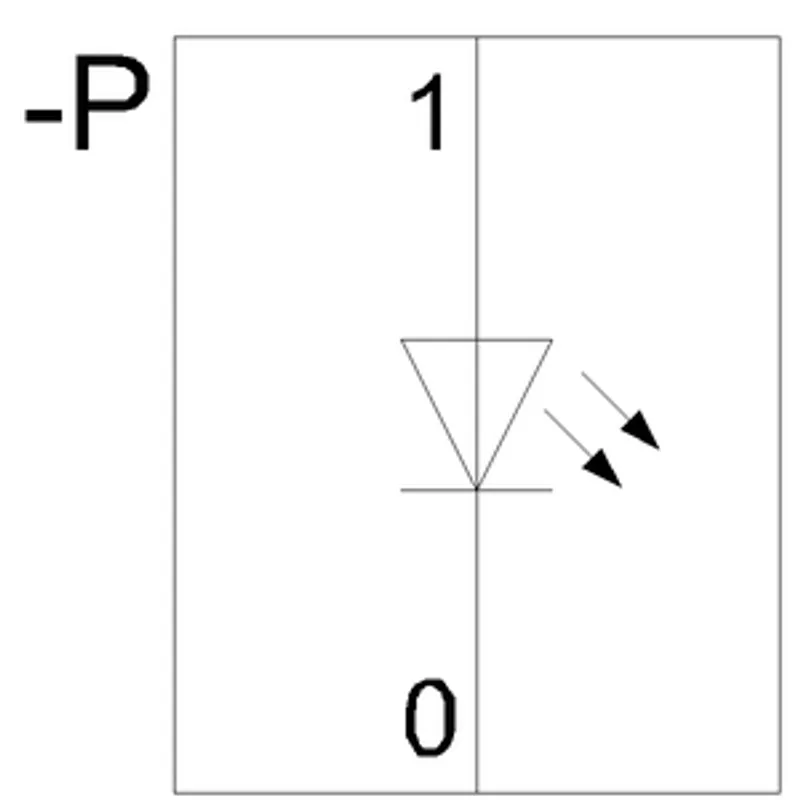

| reference code according to EN 61346-2 | P |
Lamp
| type of light source | LED |
| light intensity | 0.89 cd |
| light intensity | 0.55 ... 1.39 cd |
| design of the reflection body | Drum lens |
| product component light source | Yes |
| service life of LED | 100 000 h |
| design of the optical signal | continuous light |

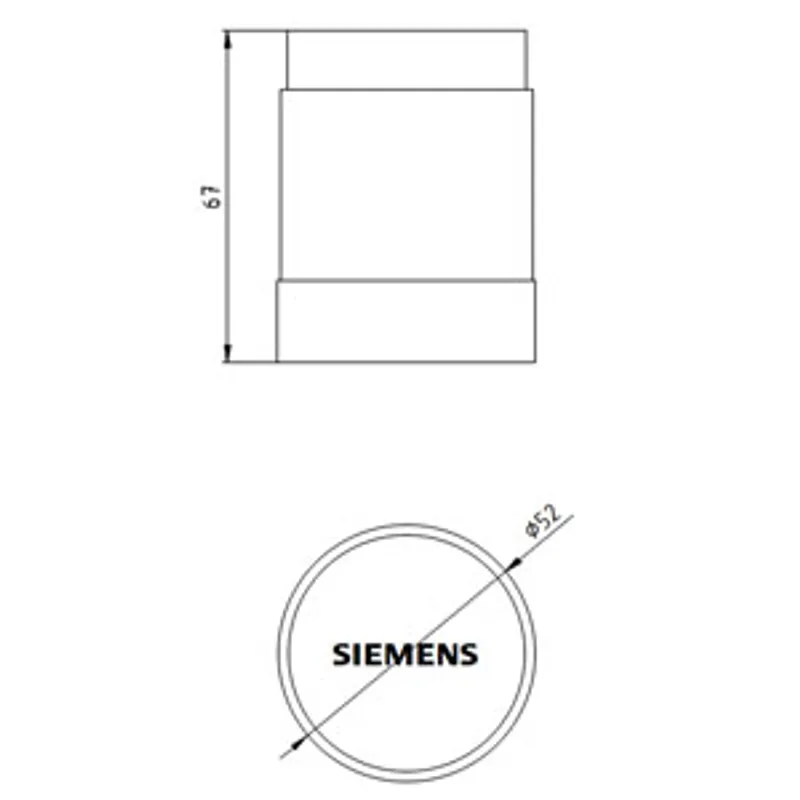

Enclosure
| height | 67 mm |
| width | 52 mm |
| outer diameter of the signal column element | 50 mm |
| material | PC |
| color | red |
| fastening method | Bayonet |
| protection class IP | IP54 |
Ambient conditions
| ambient temperature during operation | -20 ... +50 °C |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| Siemens eco profile (SEP) | Siemens EcoTech |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8WD4240-5AB: frequently asked questions
When can 8WD4240-5AB be shipped?
8WD4240-5AB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8WD4240-5AB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8WD4240-5AB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8WD4240-5AB, subject to availability and destination.
