8WD42 signaling columns, 50 mm diameter Parts















Compare 8WD42 signaling columns, 50 mm diameter
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | type of voltage of the operating voltage | consumed current maximum | light intensity | color |
|---|---|---|---|---|---|
| 8WD4240-5AE | Continuous light element | AC | 25 mA | 3.02 cd | clear |
| 8WD4240-5AD | Continuous light element | AC | 25 mA | 2.16 cd | yellow |

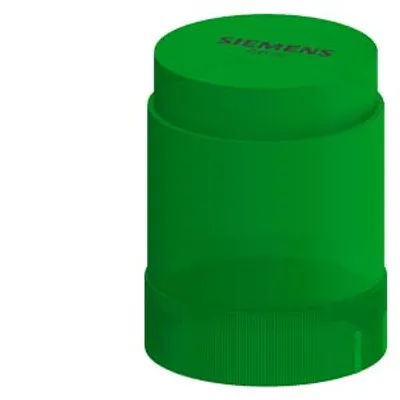

| 8WD4240-5AC | Continuous light element | AC | 25 mA | 0.96 cd | green |

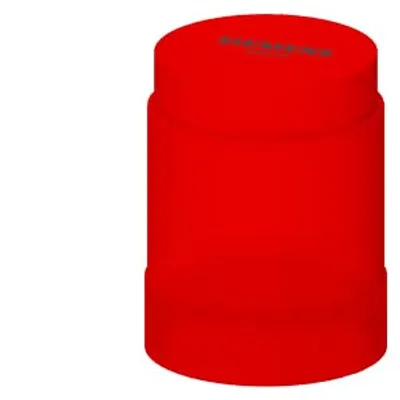

| 8WD4240-5AB | Continuous light element | AC | 25 mA | 0.89 cd | red |

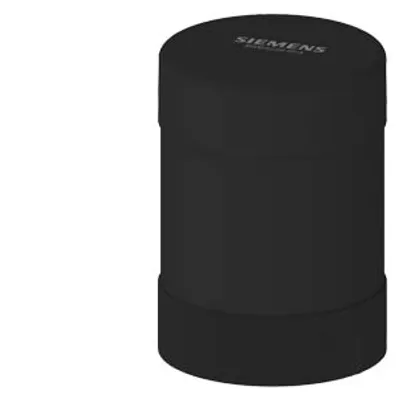

| 8WD4240-0FA | Buzzer element | AC/DC | 35 mA | — | black |

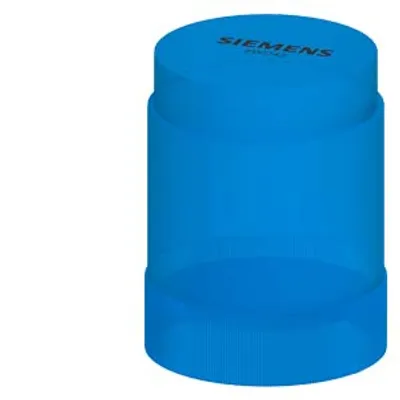

| 8WD4220-0CF | Flashlight element | DC | 40 mA | 72 cd | blue |

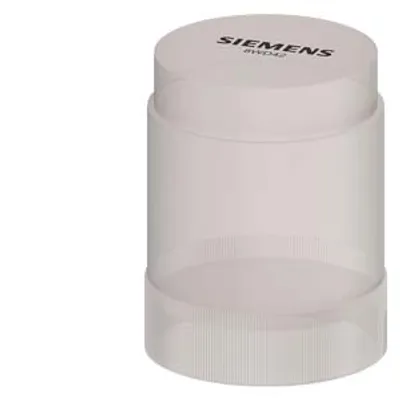

| 8WD4220-0CE | Flashlight element | DC | 40 mA | 210 cd | clear |

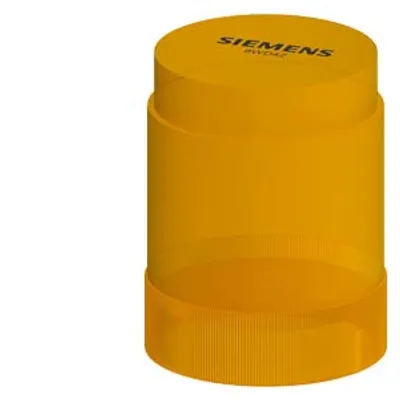

| 8WD4220-0CD | Flashlight element | DC | 45 mA | 70 cd | yellow |
| 8WD4250-5AD | Continuous light element | AC | 35 mA | 2.74 cd | yellow |
| 8WD4250-5AC | Continuous light element | AC | 35 mA | 1.13 cd | green |

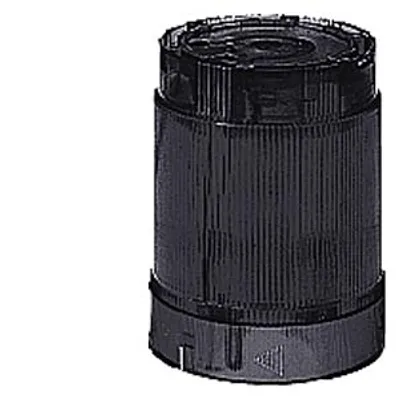

| 8WD4228-0BB | AS-Interface module | DC | 50 mA | — | black |
| 8WD4220-5BF | Repeated-flash light element | AC/DC | 30 mA | 0.12 cd | blue |
| 8WD4220-5BE | Repeated-flash light element | AC/DC | 35 mA | 6.68 cd | clear |
| 8WD4220-5BD | Repeated-flash light element | AC/DC | 35 mA | 4.96 cd | yellow |
| 8WD4220-5BC | Repeated-flash light element | AC/DC | 30 mA | 1.62 cd | green |
Common to all listed parts
| width | 52 mm |
| outer diameter of the signal column element | 50 mm |
| material | PC |
| fastening method | Bayonet |
| protection class IP | IP54 |
| ambient temperature during operation | -20 ... +50 °C |
| Environmental Product Declaration(EPD) | Yes |
| Siemens eco profile (SEP) | Siemens EcoTech |
