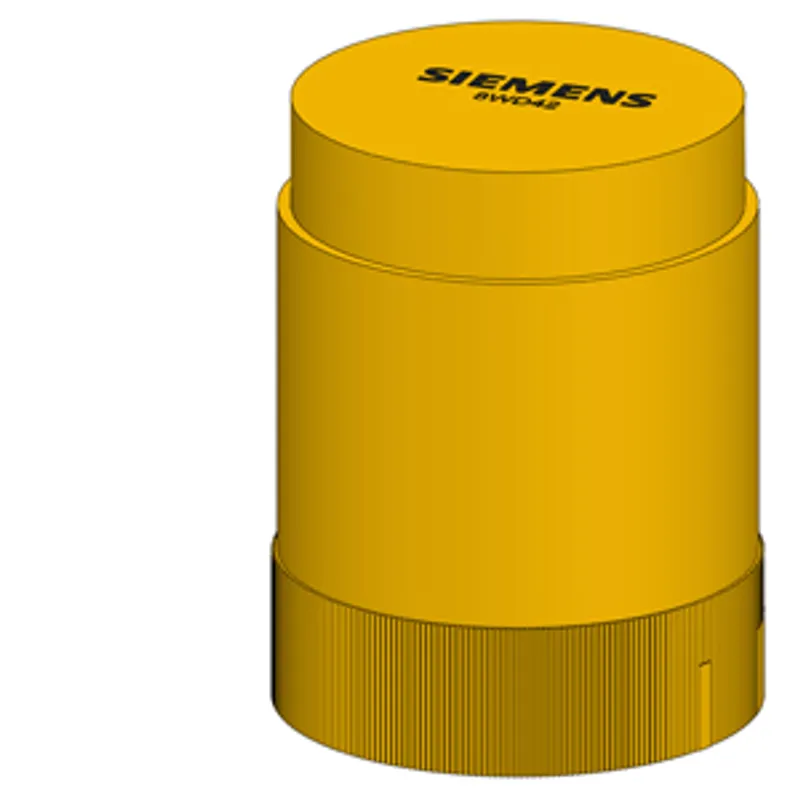

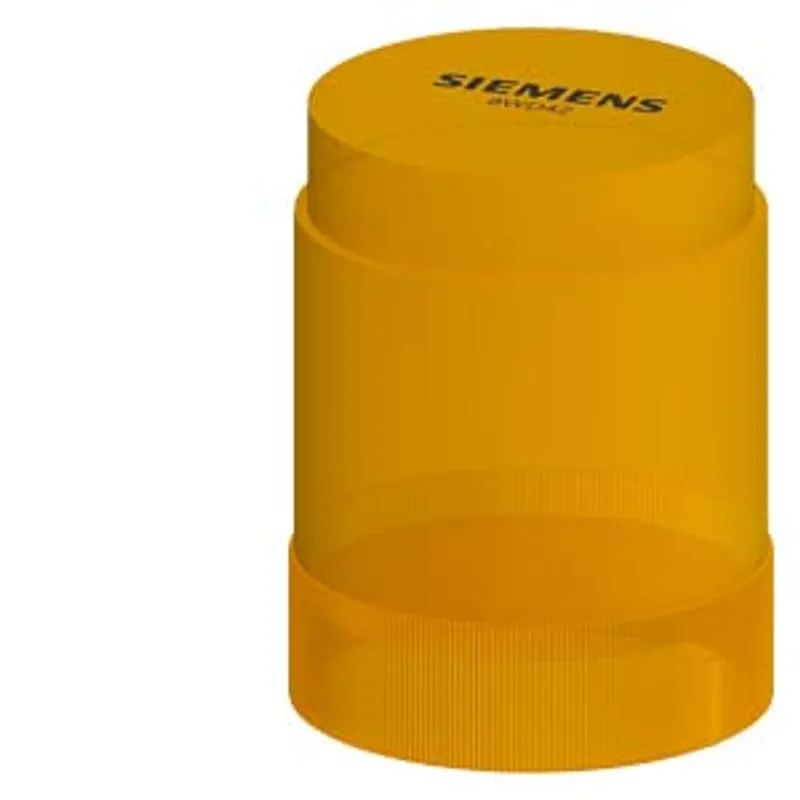

Siemens 8WD4220-5BD
Flashlight element, with integrated LED, yellow, 24 V AC/DC, Diameter 50 mm
- MPN
- 8WD4220-5BD
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WD4220-5BD?
Flashlight element, with integrated LED, yellow, 24 V AC/DC, Diameter 50 mm
Specifications
General
| product brand name | SIRIUS |
| product designation | Repeated-flash light element |
| design of the product | including light sources |
General technical data
| type of voltage of the operating voltage | AC/DC |
| operating voltage — 1 at DC rated value | 24 V |
| operating voltage — 1 at AC at 50 Hz rated value | 24 V |
| operating voltage — 1 at AC at 60 Hz rated value | 24 V |
| relative positive tolerance of the operating voltage | 10 % |
| relative negative tolerance of the operating voltage | -10 % |
| consumed current maximum | 35 mA |

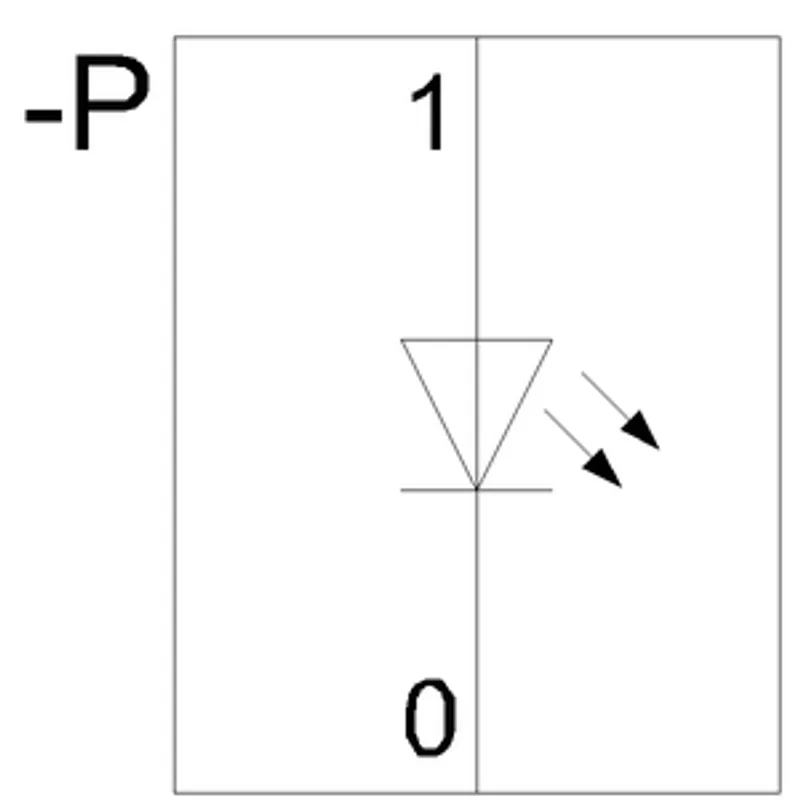

| reference code according to EN 61346-2 | P |
Safety related data
| MTTFd | 2 152 a |
Lamp
| type of light source | LED |
| light intensity | 4.96 cd |
| light intensity | 2.99 ... 6.98 cd |
| design of the reflection body | Drum lens |
| flashing frequency | 1 Hz |
| product component light source | Yes |
| service life of LED | 100 000 h |
| design of the optical signal | blinklight |

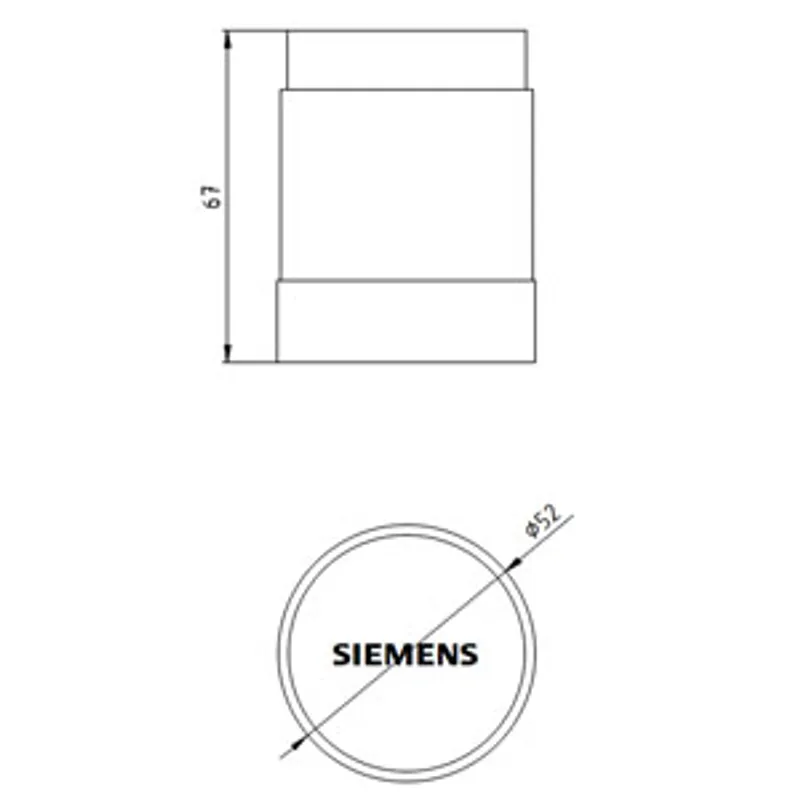

Enclosure
| height | 67 mm |
| width | 52 mm |
| outer diameter of the signal column element | 50 mm |
| material | PC |
| color | yellow |
| fastening method | Bayonet |
| protection class IP | IP54 |
Ambient conditions
| ambient temperature during operation | -20 ... +50 °C |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| Siemens eco profile (SEP) | Siemens EcoTech |
