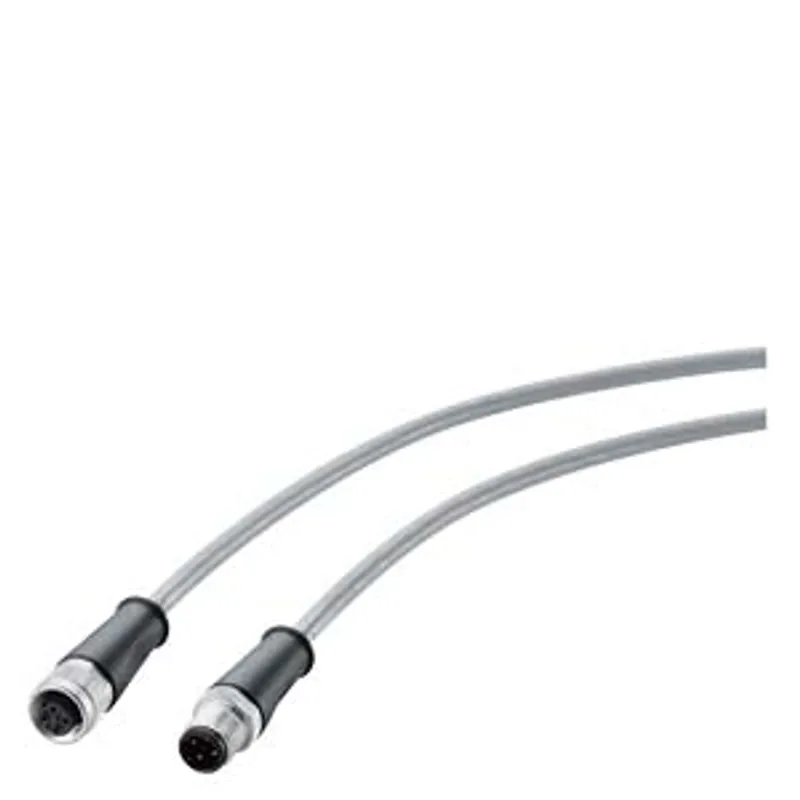

Siemens 6XV1801-5AH10
Robust Power Connecting Cable M12-180/M12-180, IP69, for Power supply of the ET 200
- MPN
- 6XV1801-5AH10
- Category
- Energy cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1801-5AH10?
Robust Power Connecting Cable M12-180/M12-180, IP69, for Power supply of the ET 200, pre-assembled cable with M12 plug and M12 socket, A-coded, 4-pole, 1.0 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1801-5AH10 |
| suitability for use | For connecting Industrial Ethernet stations with degree of protection IP65/67/69. Cable with FEP jacket (fluorinated plastic, perfluoroethylene propylene) for use in the food, beverage and tobacco industry (IP69 resistant). Cable is water-repellent, weather-proof, resistant to microbes, and extremely resistant to many cleaning agents and disinfectants (such as hypochlorite, chlorine dioxide, peroxyacetic acid, and quaternary ammonium cations). |
| cable designation | LI9YY6Y 4X1X0.75 GY |
| wire length | 1 m |
electrical data
| insulation resistance coefficient | 20 GΩ·m |
| operating voltage / RMS value | 300 V |
| conductor cross section / of the power line | 0.75 mm² |
| continuous current / of the power lines | 6.5 A; at 40°C according to DIN VDE 0891-1 (8 A at 20°C according to DIN VDE 0891-1) |
mechanical data
| number of electrical cores | 4 |
| outer diameter — of inner conductor | 1.15 mm |
| outer diameter — of the wire insulation | 1.7 mm |
| outer diameter — of cable sheath | 5.7 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| conductor class | 5 |
| material — of the conductor | CU, blank |
| material — of the wire insulation | PP |
| material — of cable sheath | PVC/FEP; FEP transparent |
| product component / PE connection | No |
| marking / of cores | Color |
| color — of the power line insulation | brown / blue, white / black |
| color — of cable sheath | gray |
| bending radius — with single bend / minimum permissible | 23 mm |
| bending radius — with multiple bends / minimum permissible | 46 mm |
| bending radius — with continuous bending | 100 mm |
| number of bending cycles | 1000000; acceleration 4 m/s² |
| number of torsion cycles / with torsion by ± 180° on 1 m cable length | 1000000 |
| tensile load / maximum | 150 N |
| weight per length | 53 kg/km |
ambient conditions
| ambient temperature — during operation | -40 ... +90 °C |
| ambient temperature — during storage | -40 ... +90 °C |
| ambient temperature — during transport | -40 ... +90 °C |
| ambient temperature — during installation | -40 ... +90 °C |
| fire behavior | Flame-resistant acc. to IEC 60332-1-2 |
| chemical resistance — to mineral oil | oil resistant according to DIN EN 60811-404 (7x24h/90°C) |
| chemical resistance — to grease | resistant |
| chemical resistance — to water | resistant |
| radiological resistance / to UV radiation | resistant according to UL 2556 Sec. 4.2.8.5 |
| protection class IP | IP69 |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
standards, specifications, approvals
| certificate of suitability | UL: E337822 PROCESSED WIRE COMPONENT |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — RoHS conformity | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
