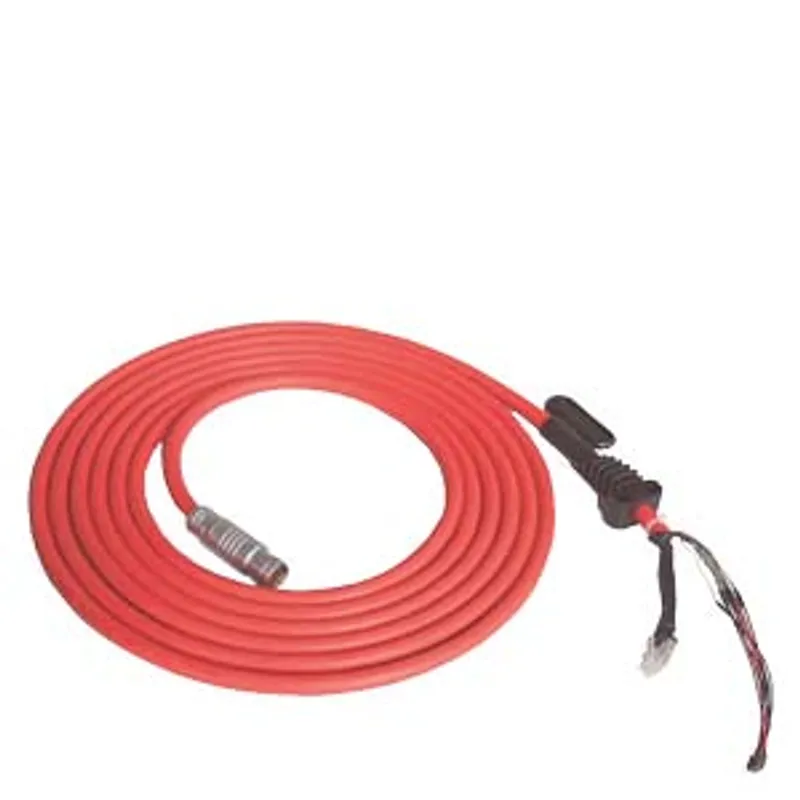

Siemens 6XV1440-4AH80
Connection cable DP for Mobile Panels (MPI/PROFIBUS), length: 8 m, scope of supply: 1 connection cable
- MPN
- 6XV1440-4AH80
- Category
- Connecting cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1440-4AH80?
connection cable DP for Mobile Panels (MPI/PROFIBUS), length: 8 m, scope of supply: 1 connection cable
Specifications
General information
| Product type designation | MPI/DP connecting cable |
Supply voltage
| Rated value (DC) | 24 V; DC |
Degree and class of protection
| IP (at the front) | IP65 |
| IP (rear) | IP65 |
Standards, approvals, certificates
| CE mark | Yes |
| Suitable for safety functions | Yes; e.g. emergency stop, acknowledgment button |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 55 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Relative humidity — Operation, max. | 85 % |
Cables
| Cable length | 8 m |
| smallest bending radius | 45 mm |
| Color of cable sheath | red |
| Oil resistance of outer sheath | Yes; Hydrolysis-resistant and oil-resistant acc. to VDE 0472 Part 803/B, also resistant to commercially available lubricants and hydraulic oils |
| Resistance to MEK, xylene, toluene, isopropanol | Yes |
Mechanics/material
| Material of cable sheath | Special PUR, flame-resistant acc. to VDE 0472 Part 804 Test Type B, Shore A 88 Flame-Retardant UR Style 20963 |
Dimensions
| Thickness | 9 mm |
Scope of supply
| Delivery quantity in pieces | 1 |
Other
| Merchandise | No |
| Manufacturer name | SIEMENS AG |
| Manufacturer's address | Gleiwitzerstraße 555, 90475 Nuremberg, Germany |
| contacting the manufacturer | Email: simatic_hmi_panel_helpdesk.i-ia@siemens.com |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6XV1440-4AH80: frequently asked questions
When can 6XV1440-4AH80 be shipped?
6XV1440-4AH80 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6XV1440-4AH80 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6XV1440-4AH80 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6XV1440-4AH80, subject to availability and destination.
