Siemens 6XV1801-5DE30
Power connecting cable M12-180/M12-180 for the power supply of the ET 200
- MPN
- 6XV1801-5DE30
- Category
- Energy cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1801-5DE30?

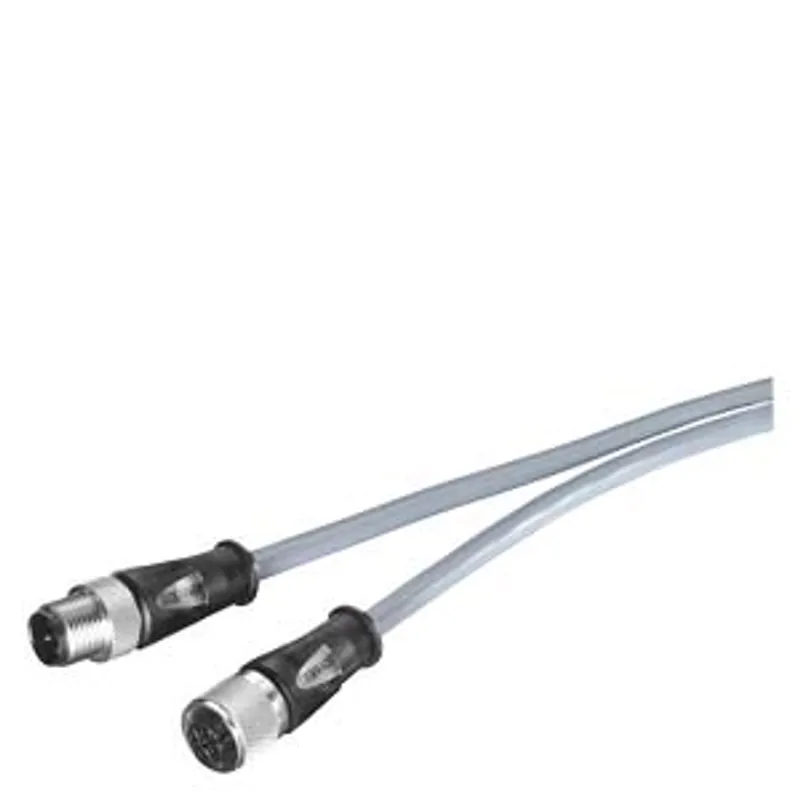

Power connecting cable M12-180/M12-180 for the power supply of the ET 200, pre-assembled cable with M12 plug and M12 socket, A-coded, 4-pole 0.3 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1801-5DE30 |
| suitability for use | Plug-in cable for connecting 24 V power supply to ET 200 & XP-200 with IP 65/67 degree of protection |
| cable designation | LI9YH-Y 4x0.75 |
| wire length | 0.3 m |
electrical data
| operating voltage / RMS value | 300 V |
| conductor cross section / of the power line | 0.75 mm² |
mechanical data
| number of electrical cores | 4 |
| type of electrical connection | M12-180 |
| outer diameter — of inner conductor | 1.1 mm |
| outer diameter — of the wire insulation | 1.7 mm |
| outer diameter — of cable sheath | 5.7 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| design of stranding element | Pairs |
| conductor class | 5 |
| material — of the conductor | CU, blank |
| material — of the wire insulation | PP |
| material — of cable sheath | PVC |
| product component / PE connection | No |
| marking / of cores | Color |
| color — of the power line insulation | brown / white / blue / black |
| color — of cable sheath | gray |
| bending radius — with single bend / minimum permissible | 57 mm |
| bending radius — with multiple bends / minimum permissible | 57 mm |
| bending radius — with continuous bending | 57 mm |
| number of bending cycles | 100000 |
| tensile load / maximum | 15 N |
| weight per length | 54 kg/km |
plug
| type of plug interlock | screwed |
| design of plug-in connection | M12-180 |
| connector coding | M12 |
| connector coding / of the M12 circular connector | A coded |
ambient conditions
| ambient temperature — during operation | -25 ... +80 °C |
| ambient temperature — during storage | -25 ... +80 °C |
| ambient temperature — during transport | -25 ... +80 °C |
| ambient temperature — during installation | 80 °C |
| ambient condition / for operation | With moving applications, the permissible operating temperature range is -5 to +80 degrees Celsius |
| fire behavior | Flame-resistant acc. to UL 758 (CSA FT 1) |
| chemical resistance — to mineral oil | Conditional resistance |
| chemical resistance — to grease | Conditional resistance |
| radiological resistance / to UV radiation | not resistant |
| protection class IP | IP65 / 67 |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | Yes; AWM 2464/10493 AWM I/II A/B 80°C 300V FT1 |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — RoHS conformity | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6XV1801-5DE30: frequently asked questions
When can 6XV1801-5DE30 be shipped?
6XV1801-5DE30 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6XV1801-5DE30 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6XV1801-5DE30 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6XV1801-5DE30, subject to availability and destination.
