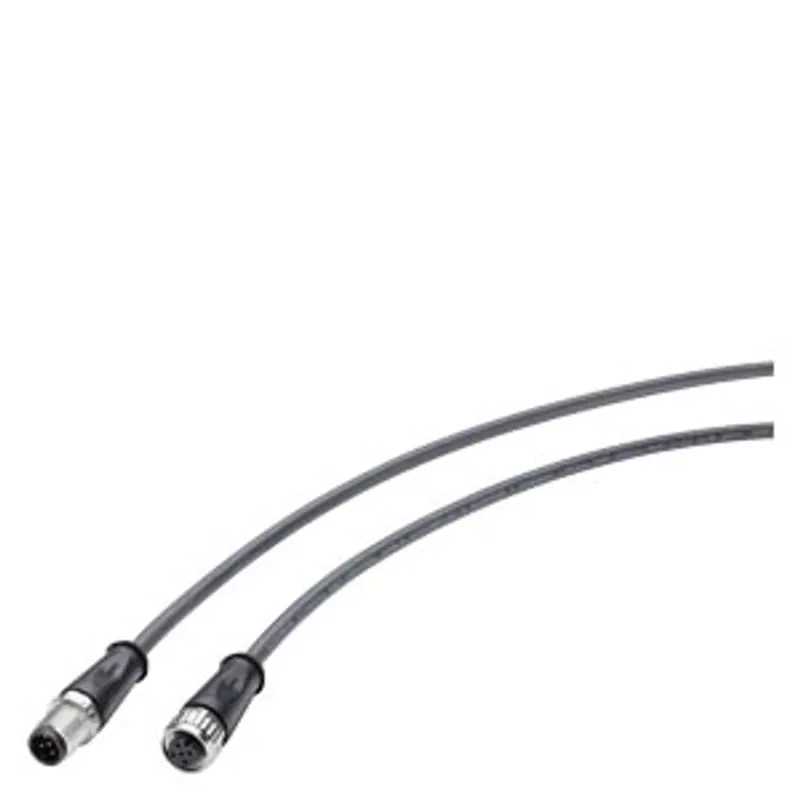

Siemens 6XV1801-2CN15
Control connecting cable M12-180/M12-180; 5-core; IO-Link port Class B
- MPN
- 6XV1801-2CN15
- Category
- Energy cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1801-2CN15?
Control connecting cable M12-180/M12-180; 5-core; IO-Link port Class B; pre-assembled with M12 plug and M12 socket (A-coded); straight cable outlet, length 15 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1801-2CN15 |
| suitability for use | Plug-in cable for connecting IO-Link components and sensing mechanisms to IO modules, degree of protection IP 65/67 |
| cable designation | LIHH11Y 5X1X0.25 SW |
| wire length | 15 m |
electrical data
| operating voltage / RMS value | 300 V |
| conductor cross section / of the power line | 0.4 mm² |
| continuous current / of the power lines | 2.5 A |
mechanical data
| number of electrical cores | 5 |
| type of electrical connection | M12-180 |
| AWG number | 24 |
| outer diameter — of inner conductor | 0.7 mm |
| outer diameter — of the wire insulation | 1.2 mm |
| outer diameter — of cable sheath | 5.3 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.3 mm |
| conductor class | 6 |
| material — of the conductor | CU, blank |
| material — of the wire insulation | FRNC |
| material — of cable sheath | PUR |
| product component / PE connection | No |
| marking / of cores | Color |
| color — of the power line insulation | Brown / white / blue / black / gray |
| color — of cable sheath | Black |
| bending radius — with single bend / minimum permissible | 21 mm |
| bending radius — with multiple bends / minimum permissible | 42 mm |
| tensile load / maximum | 10 N |
| weight per length | 40 kg/km |
plug
| type of plug interlock | screwed |
| design of plug-in connection | M12-180 |
| connector coding | M12 |
| connector coding / of the M12 circular connector | A coded |
ambient conditions
| ambient temperature — during operation | -15 ... +80 °C |
| ambient temperature — during storage | -25 ... +80 °C |
| ambient temperature — during transport | -25 ... +80 °C |
| ambient temperature — during installation | -15 ... +80 °C |
| fire behavior | Flame-resistant according to IEC 60332-1-2, UL 2556, Sec. 9.3 (FT1), CSA C22.2 No.2556, UL 1581, Sec. 1061 (cable flame) |
| class of burning behaviour / according to EN 13501-6 | Fca |
| chemical resistance — to mineral oil | Conditional resistance |
| chemical resistance — to grease | Conditional resistance |
| chemical resistance — to water | Conditional resistance |
| radiological resistance / to UV radiation | sunlight resistant acc. to UL 2556 sec. 4.2.8.5 (720h) |
| protection class IP | IP65 / 67 |
product features, product functions, product components / general
| product feature — halogen-free | Yes |
| product feature — silicon-free | Yes |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | Yes; UL Style 20233 (80°C/300V) CSA C22.2 No. 210 I/II A/B FT1 |
| certificate of suitability | UL2238 E300110 |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — RoHS conformity | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
