Siemens 6XV1801-2F

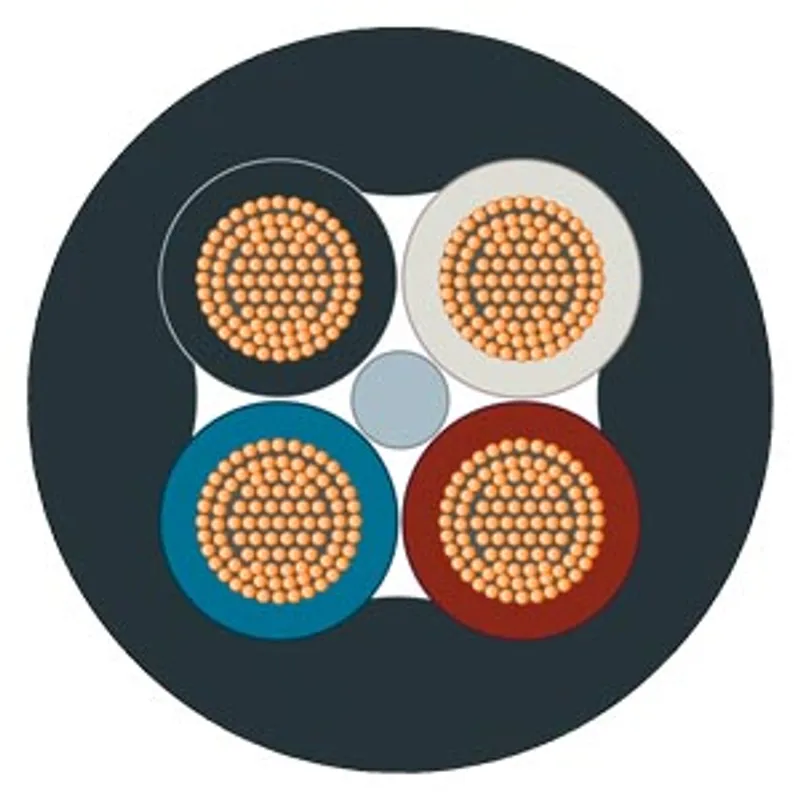

FRNC Energy Cable 4x 1.5 power line; 4-core stranded wire 1.5 mm2; delivery unit: max. 1000 m

MPN: 6XV1801-2F
Category: Energy cables

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6XV1801-2F?

FRNC Energy Cable 4x 1.5 power line; 4-core stranded wire 1.5 mm2; delivery unit: max. 1000 m, minimum order quantity 20 m Sold by the meter

Specifications

General

product brand name	SIMATIC NET
Technical Product Detail Page	https://i.siemens.com/1P6XV1801-2F
suitability for use	connection of 24 V power supply

electrical data

operating voltage / RMS value	600 V
conductor cross section / of the power line	1.5 mm²
continuous current / of the power lines	6.5 A; at 40°C according to DIN VDE 0891-1 (8 A at 20°C according to DIN VDE 0891-1)

mechanical data

number of electrical cores	4
outer diameter — of inner conductor	1.6 mm
outer diameter — of the wire insulation	2.3 mm
outer diameter — of cable sheath	7.7 mm
symmetrical tolerance of the outer diameter / of cable sheath	0.3 mm
conductor class	5
material — of the conductor	CU, blank
material — of the wire insulation	FRNC
material — of cable sheath	FRNC
product component / PE connection	No
marking / of cores	Color
color — of the power line insulation	brown / white / blue / black
color — of cable sheath	Black
bending radius — with single bend / minimum permissible	31 mm
bending radius — with multiple bends / minimum permissible	62 mm
bending radius — with continuous bending	62 mm
tensile load / maximum	100 N
weight per length	109 kg/km

ambient conditions

ambient temperature — during operation	-40 ... +105 °C
ambient temperature — during storage	-40 ... +105 °C
ambient temperature — during transport	-40 ... +105 °C
ambient temperature — during installation	-30 ... +105 °C
fire behavior	Flame-resistant acc. to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6	Eca
chemical resistance — to mineral oil	resistant to fuel
chemical resistance — to grease	Conditional resistance
chemical resistance — to water	Conditional resistance
radiological resistance / to UV radiation	resistant according to UL 2556 Sec. 4.2.8.5 (720h)

product features, product functions, product components / general

product feature — halogen-free	Yes; halogen-free according to IEC 60754-1/2
product feature — low-emission according to IEC 61034-2	Yes
product feature — silicon-free	Yes

standards, specifications, approvals

UL/ETL listing / 300 V Rating	Yes; c(ETL)us 3047254 CM 75°C
UL/ETL style / 600 V Rating	Yes; E502506 AWM STYLE 21216 105°C
certificate of suitability — EAC approval	Yes
certificate of suitability — RoHS conformity	Yes

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6XV1801-2FPDF
