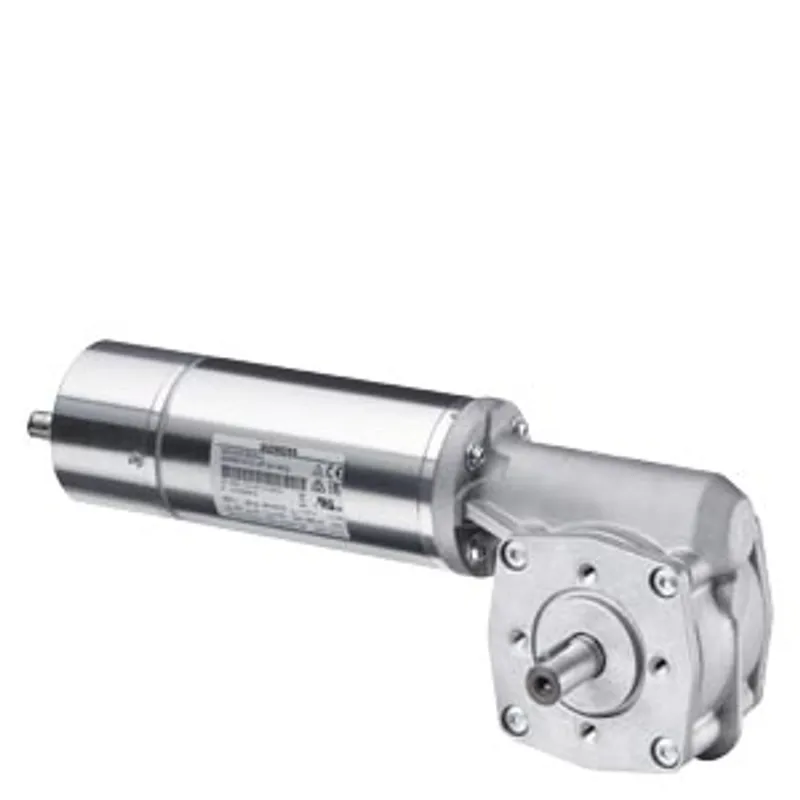

Siemens 6FB1103-0AT14-3MC2
SIDOOR MDG4 L geared motor, shaft on the left with slot and fitted key A5x5 according to DIN 6885
- MPN
- 6FB1103-0AT14-3MC2
- Category
- Geared motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6FB1103-0AT14-3MC2?
SIDOOR MDG4 L geared motor, shaft on the left with slot and fitted key A5x5 according to DIN 6885, max. 400 kg of mass to be moved, IP56, 2x M12 for separate motor connection cable, 30 V DC, -20 to +50 °C
Specifications
General information
| Product type designation | MDG4 L |
Supply voltage
| Rated value (DC) | 30 V |
Input current
| Operational current (rated value) | 4 A |
Power
| Active power input | 120 W |
Mechanical data
| Torque of the rotary operating mechanism (rated value) | 3 N·m |
| Speed, max. | 0.75 m/s |
| Mass to be moved, max. | 400 kg |
| Gear unit | Yes |
| Gear ratio | 15 |
| Fixed output gear | No |
Degree and class of protection
| IP degree of protection — of the motor | IP56 |
| IP degree of protection — of the gear unit | IP56 |
Standards, approvals, certificates
| CE mark | Yes |
| UL approval | Yes |
| EAC (formerly Gost-R) | Yes |
| China RoHS compliance | Yes |
Ambient conditions
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — max. | 50 °C |
| Ambient temperature during storage/transportation — Storage, min. | -40 °C |
| Ambient temperature during storage/transportation — Storage, max. | 85 °C |
Cables
| Fixed connecting cable | No |
Dimensions
| Diameter of output gear, min. | 28 mm |
| Diameter of output gear, max. | 122 mm |
| Height of motor | 115 mm |
| Length of motor | 303 mm |
| Diameter of motor | 63 mm |
| Width of gearbox | 106 mm |
