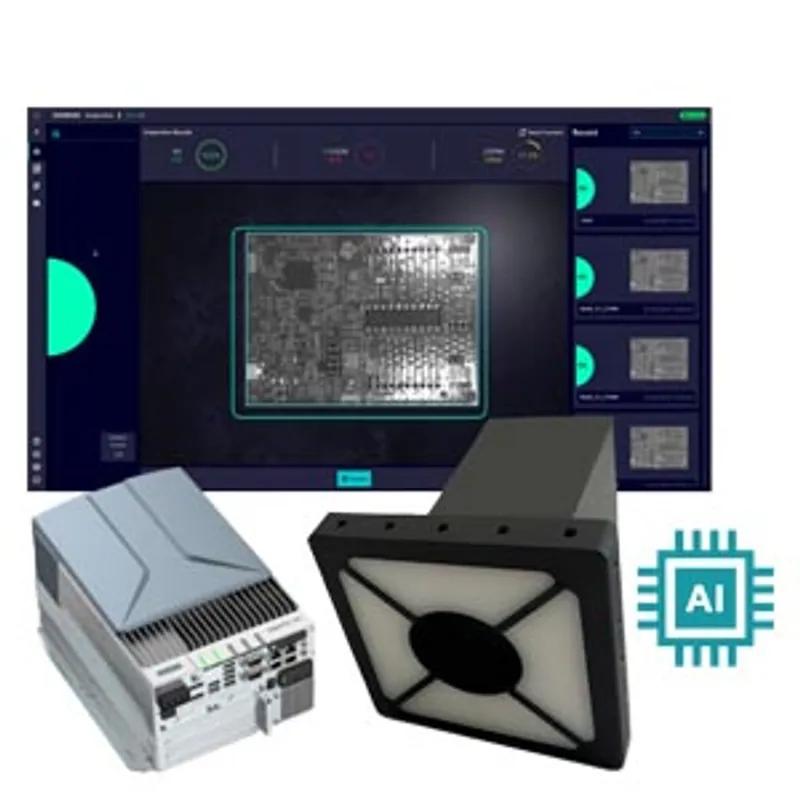

Siemens 6ET2901-1AA01-1BA0
"high performance edition" of the "Siemens Inspekto Vision inspection system" V6
- MPN
- 6ET2901-1AA01-1BA0
- Category
- Inspekto
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ET2901-1AA01-1BA0?
"high performance edition" of the "Siemens Inspekto Vision inspection system" V6, one AI-supported overall system for optical quality inspection; suitable for presence and deviation analysis - no limitation of the number of profiles
Specifications
General information
| Product function — Visual inspection — inspection cycle | 100 ms |
| Product function — Visual inspection — object speed, max. | 2.25 m/s |
| Product function — Visual inspection — installation clearance, min. | 2 cm |
| Product function — Visual inspection — installation clearance, max. | 100 cm |
| Product function — Visual inspection — smallest fault size | 0.33 mm at 10 cm distance without optical zoom |
| Product function — Visual inspection — optical magnification | 17 |
| Product function — Visual inspection — optical settings | autonomous embedded anti-reflection adaptive lighting |
| Product function — Visual inspection — image detection | autonomous |
| Product function — Visual inspection — positioning | autonomous |
| Product function — Visual inspection — trigger type | auto / manual / PLC / trigger-in |
| Product function — Visual inspection — color range of sensor | grayscale |
| Product function — Visual inspection — number of inspection profiles | 6 |
| Product function — Visual inspection — number of possible inspection areas | unlimited (limited only by hardware resources) |
| Product function — Camera — vision standard | GigE Vision |
| Product function — Camera — dynamic range | 12 bit |
| Product function — Camera — frame rate | 36 1/s |
| Product function — Camera — Image resolution | 2 048 x 1 536 |
| Product function — Camera — focal length, min. | 6 800 µm; Wide |
| Product function — Camera — focal length, max. | 136 000 µm; tele |
| Product function — Camera — object width, min. | 1 cm; Wide |
| Product function — Camera — object width, max. | 90 cm; tele |
| Product function — Camera — iris | F1.5 (wide) to F3.4 (tele) |
| Product function — Camera — sensor format | 1/1.8" |
| Product function — Camera — pixel format | 3 450 nm |
| Product function — Camera — sensor type | Sony IMX26LLR-C |
| Product function — Camera — shutter type | global |
| Product function — Camera — pixel size | 3.45 µm |
| Product function — Camera — IR cut filter | Yes (removable) |
| Product function — Camera — shutter | 20 ms up to 30 s |
| Product function — Camera — gain | 0 dB to 48 dB |
| Product function — illumination — light color | white 5 700 K (CRI80) |
| Product function — illumination — LED technology | SMD LEDs |
| Product function — illumination — width of light-emitting surface | 100 mm |
| Product function — illumination — length of light-emitting surface | 100 mm |
| Product function — illumination — illuminance | 40 000 lx; at 0.1 m |
| Product function — illumination — electrical power at the light field, max. | 16.8 W; normal mode |
| Product function — illumination — Operating mode | continuous and switching operation; 4 separately controllable segments |
| Product function — illumination — ON-delay | 10.5 µs |
| Product function — illumination — illumination controller | integrated illumination controller |
| Product function — illumination — continuous operation | with no firmware activated, light operates in continuous mode only, red status LED lights up (with firmware activated red status LED turns off) |
| Product function — illumination — PLC switching input | low level ≤ 8 V DC; high level = 12 to 30 V DC; internally limited to 6 mA Switch-on delay 2.5 μs to MCU |
| Product function — illumination — Boost mode | brings 33.4 W to light field for illumination increase, max. switch-on time 500 ms with duty factor 50 % |
| Product function — illumination — risk group | Exempt Group (DIN EN 62471) |
Installation type/mounting
| Mounting accessories | including |
Supply voltage
| Design of the power supply | DC |
| permissible range, lower limit (DC) | 24 V |
| permissible range, upper limit (DC) | 24 V |
Interfaces
| Ethernet interface | Yes |
Protocols
| PROFINET | Yes |
| EtherNet/IP | Yes |
| Protocols (Ethernet) — TCP/IP | Yes |
Degree and class of protection
| IP degree of protection | IP20 control cabinet installation / open type |
Ambient conditions
| Suited for indoor use | Yes |
| Suited for outdoor use | No |
| Ambient temperature during operation — min. | 10 °C |
| Ambient temperature during operation — max. | 38 °C |
| Ambient temperature during operation — min. [°F] | 50 °F |
| Ambient temperature during operation — max. [°F] | 100 °F |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Relative humidity — Operation, min. | 20 % |
| Relative humidity — Operation, max. | 80 % |
Operating systems
| pre-installed operating system | LINUX |
Connection method
| Type of connection | plugged, screwed |
Dimensions
| width of controller | 79 mm; 85 mm base module |
| height of controller | 194 mm |
| depth of controller | 237 mm; 237 mm base module without fan module and with / without extension module 1 slot, 307 mm base module with fan module and with / without extension module 1/2 slots, 400 mm with extension module 4 slots |
| camera width | 71 mm |
| camera height | 71 mm |
| camera depth | 147 mm |
| lighting width | 130 mm |
| lighting height | 130 mm |
| lighting depth | 20.5 mm |
Weights
| weight of controller | 6 kg |
