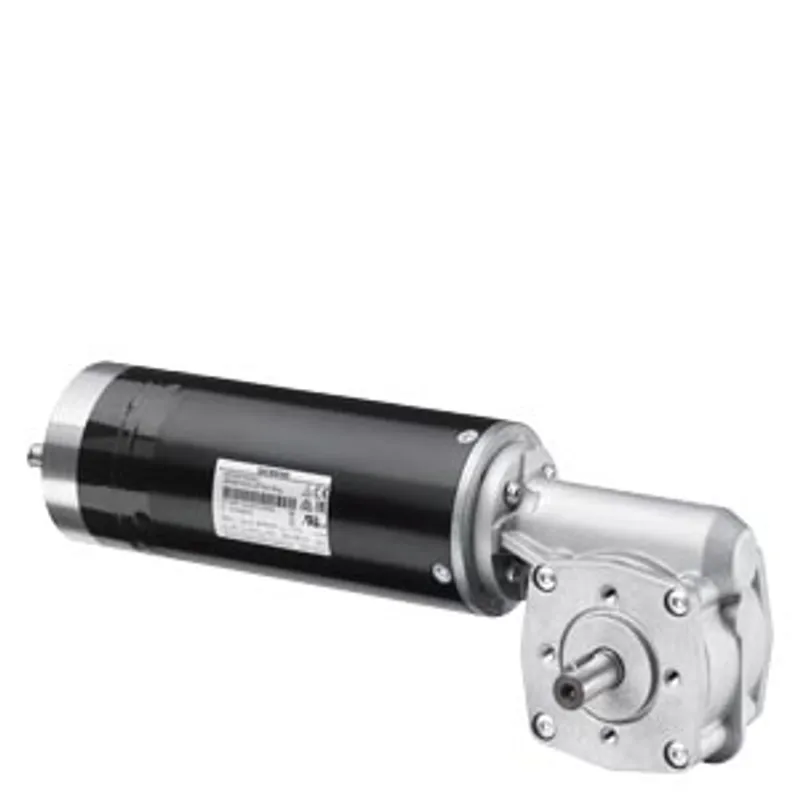

Siemens 6FB1103-0AT14-3MG2

SIDOOR MDG5 L Geared motor, shaft left hand with groove and feather key A5X5 according to DIN 6885

MPN: 6FB1103-0AT14-3MG2
Category: Geared motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6FB1103-0AT14-3MG2?

SIDOOR MDG5 L Geared motor, shaft left hand with groove and feather key A5X5 according to DIN 6885, max. 700kg mass to be moved, IP56, 2x M12 for separate motor cable, 30VDC, -20- +50 degree celsius

Specifications

General information

Product type designation

MDG5 L

Supply voltage

Rated value (DC)

30 V

Input current

Operational current (rated value)

7.5 A

Power

Active power input

225 W

Mechanical data

Torque of the rotary operating mechanism (rated value)	6 N·m
Speed, max.	0.5 m/s
Mass to be moved, max.	700 kg
Gear unit	Yes
Gear ratio	15
Fixed output gear	No

Degree and class of protection

IP degree of protection — of the motor	IP56
IP degree of protection — of the gear unit	IP56

Standards, approvals, certificates

CE mark	Yes
UL approval	Yes
EAC (formerly Gost-R)	Yes
China RoHS compliance	Yes

Ambient conditions

Ambient temperature during operation — min.	-20 °C
Ambient temperature during operation — max.	50 °C
Ambient temperature during storage/transportation — Storage, min.	-40 °C
Ambient temperature during storage/transportation — Storage, max.	85 °C

Cables

Fixed connecting cable

Dimensions

Diameter of output gear, min.	28 mm
Diameter of output gear, max.	122 mm
Height of motor	124 mm
Length of motor	348 mm
Diameter of motor	80 mm
Width of gearbox	109 mm
