Geared motors Parts
Compare Geared motors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | Speed, max. | Mass to be moved, max. | Height of motor | Length of motor |
|---|---|---|---|---|---|

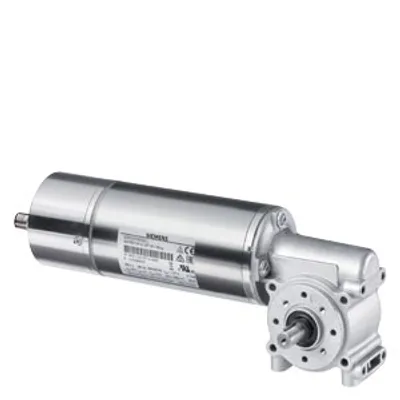

| 6FB1103-0AT14-4MB1 | MDG3 L | 0.65 m/s | 180 kg | 98 mm | 264 mm |

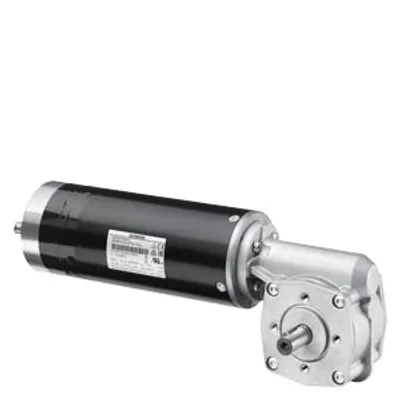

| 6FB1103-0AT14-3MG2 | MDG5 L | 0.5 m/s | 700 kg | 124 mm | 348 mm |

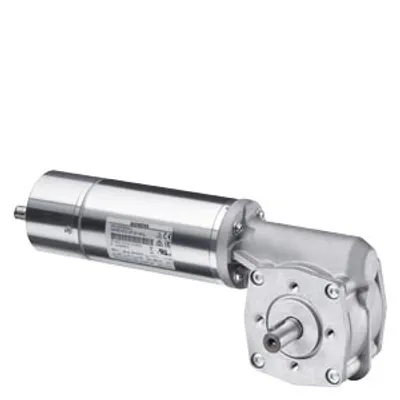

| 6FB1103-0AT14-3MC2 | MDG4 L | 0.75 m/s | 400 kg | 115 mm | 303 mm |
Common to all listed parts
| Rated value (DC) | 30 V |
| Gear unit | Yes |
| Gear ratio | 15 |
| Fixed output gear | No |
| IP degree of protection — of the motor | IP56 |
| IP degree of protection — of the gear unit | IP56 |
| CE mark | Yes |
| UL approval | Yes |
