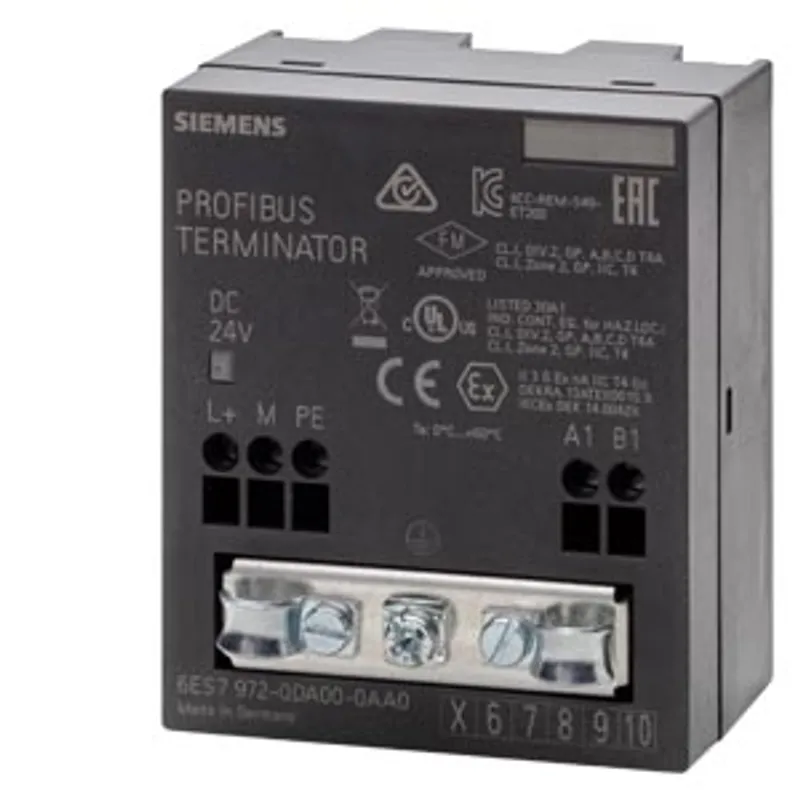

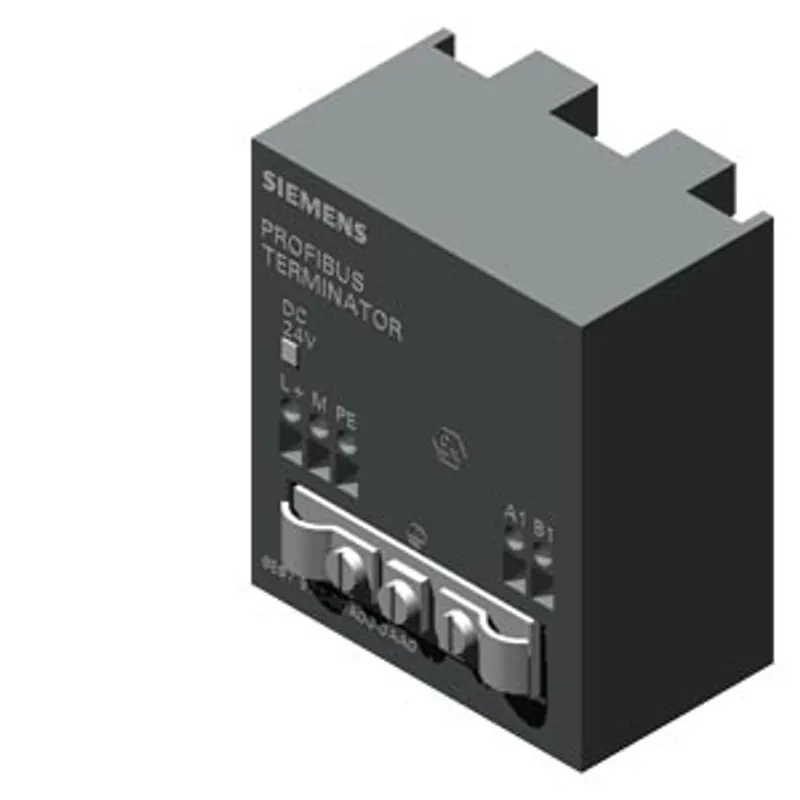

Siemens 6ES7972-0DA00-0AA0
SIMATIC DP, RS485 terminating resistor for terminating PROFIBUS/MPI networks
- MPN
- 6ES7972-0DA00-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7972-0DA00-0AA0?
SIMATIC DP, RS485 terminating resistor for terminating PROFIBUS/MPI networks
Specifications
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption, typ. | 30 mA |
Power loss
| Power loss, max. | 0.72 W |
Interfaces
| PROFIBUS DP — Transmission rate, max. | 12 Mbit/s; 9.6 kbit/s to 12 Mbit/s |
Degree and class of protection
| IP degree of protection | IP20 |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Relative humidity — Operation, max. | 95 %; at +25 °C |
Connection method
| Design of electrical connection for supply voltage | Screw terminal block |
| Design of electrical connection for PROFIBUS cables | Screw terminal block |

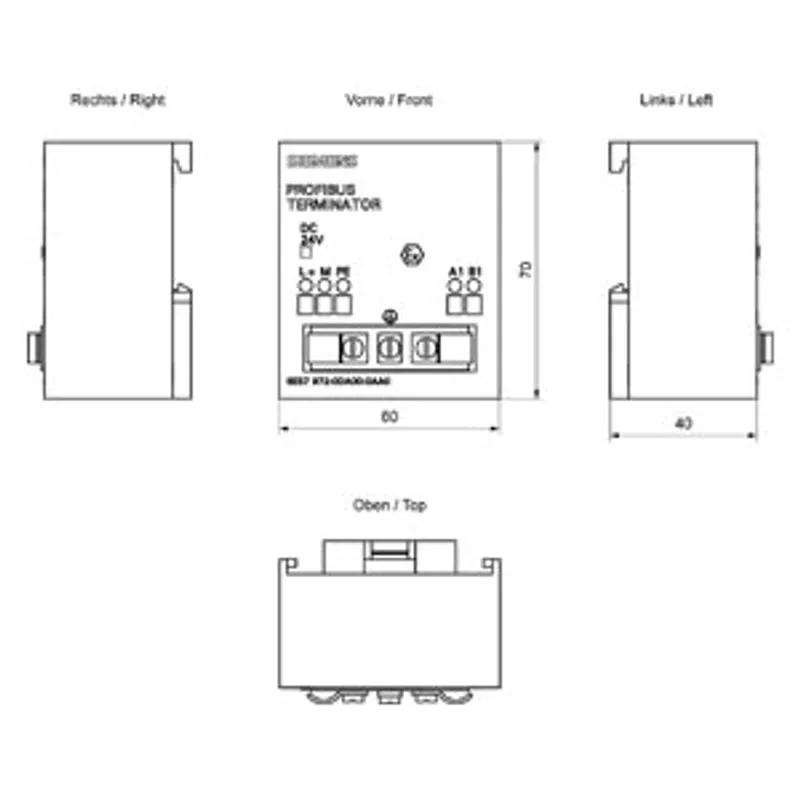

Dimensions
| Width | 60 mm |
| Height | 70 mm |
| Depth | 43 mm |
Weights
| Weight, approx. | 95 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7972-0DA00-0AA0: frequently asked questions
When can 6ES7972-0DA00-0AA0 be shipped?
6ES7972-0DA00-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7972-0DA00-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7972-0DA00-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7972-0DA00-0AA0, subject to availability and destination.
