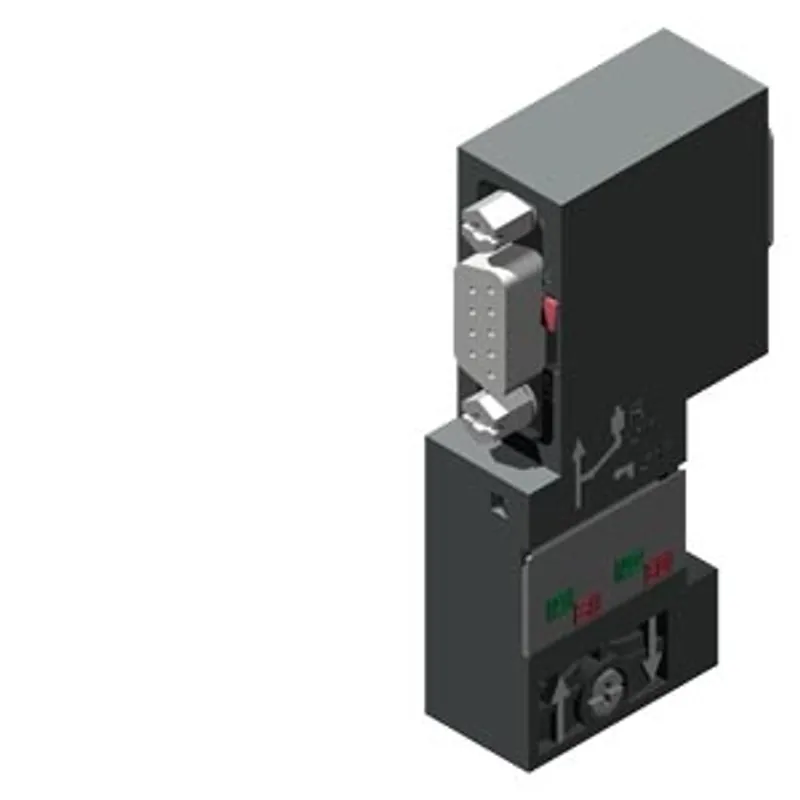

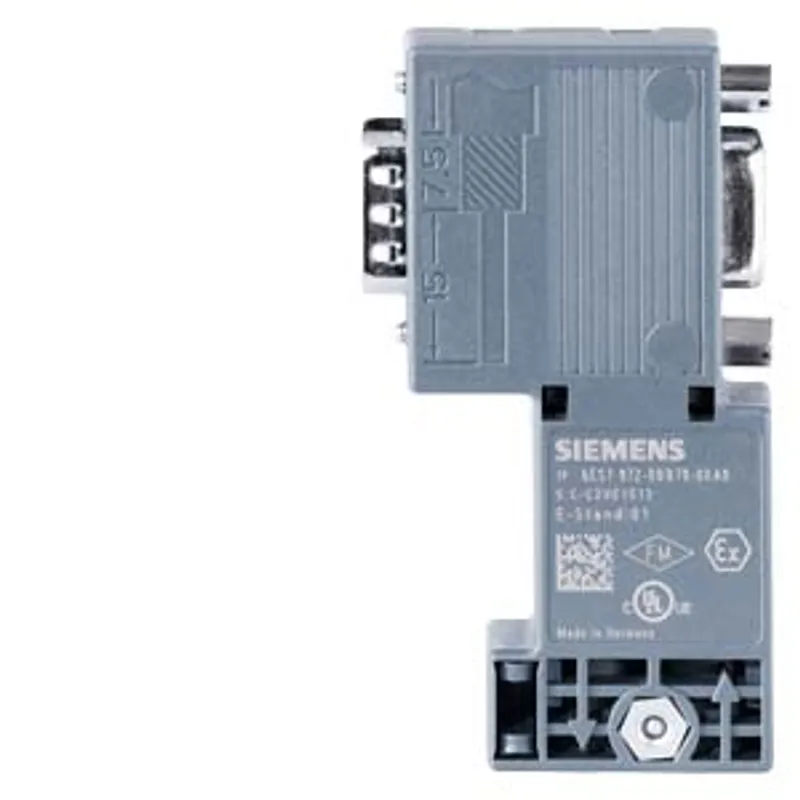

Siemens 6ES7972-0BB70-0XA0
SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, 15.8x 72.2x 36.4 mm (WxHxD)
- MPN
- 6ES7972-0BB70-0XA0
- Category
- RS485 bus connector
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7972-0BB70-0XA0?
SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, 15.8x 72.2x 36.4 mm (WxHxD), Insulation displacement method FastConnect, With PG receptacle
Specifications
General
| product brand name | SIMATIC |
| Technical Product Detail Page | https://i.siemens.com/1P6ES7972-0BB70-0XA0 |
| suitability for use | for connecting PROFIBUS stations to the PROFIBUS bus cable |
transfer rate
| transfer rate / with PROFIBUS DP | 9.6 kbit/s ... 12 Mbit/s |
interfaces
| number of electrical connections — for PROFIBUS cables | 2 |
| number of electrical connections — for network components or terminal equipment | 1 |
| type of electrical connection — for PROFIBUS cables | Integrated insulation displacement terminals for 2-core PB FC installation cables |
| type of electrical connection — for network components or terminal equipment | 9-pin sub D connector |
| type of electrical connection / FastConnect | Yes |
mechanical data
| design of terminating resistor | Resistor combination integrated and connectable via slide switch |
| material / of the enclosure | plastic |
| locking mechanism design | Screwed joint |

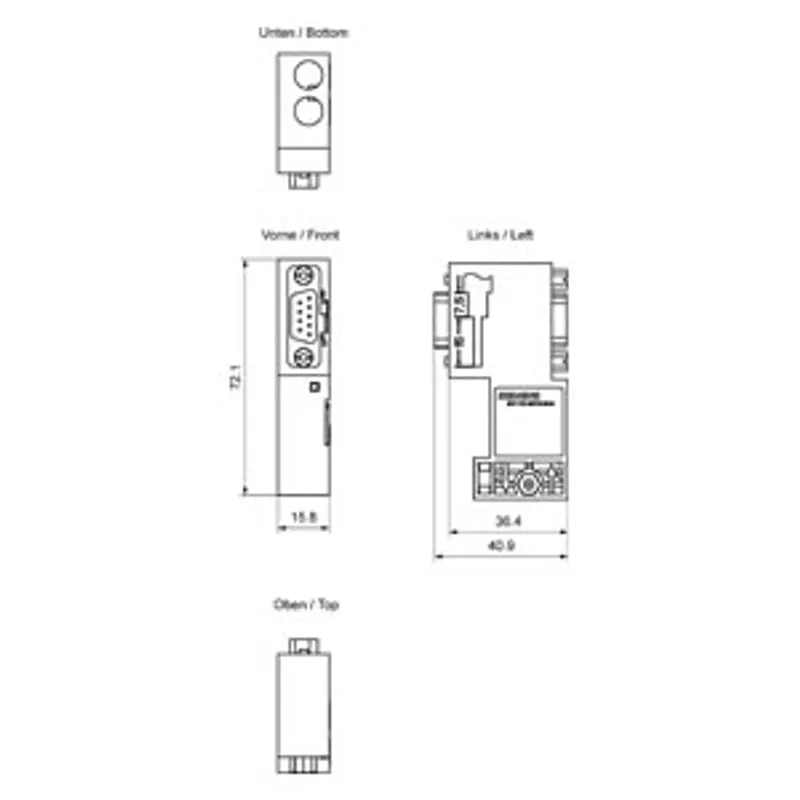

design, dimensions and weights
| type of cable outlet | 90 degree cable outlet |
| width | 15.8 mm |
| height | 72 mm |
| depth | 36.4 mm |
| net weight | 45 g |
ambient conditions
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| protection class IP | IP20 |
product features, product functions, product components / general
| product feature — silicon-free | Yes |
| product component — PG connection socket | Yes |
| product component — strain relief | Yes |
standards, specifications, approvals
| certificate of suitability — RoHS conformity | Yes |
| certificate of suitability — UL approval | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
