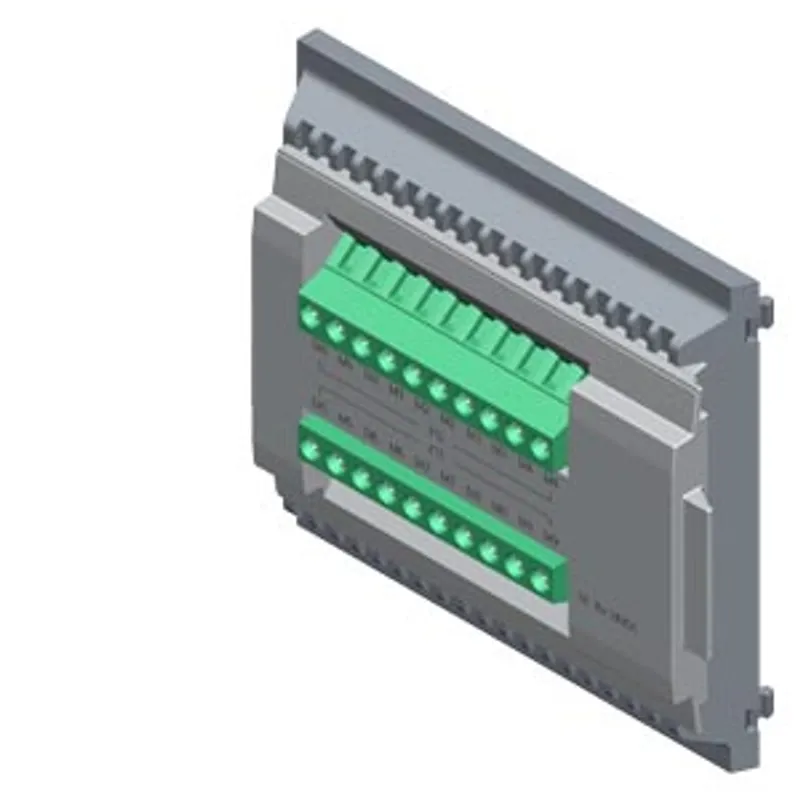

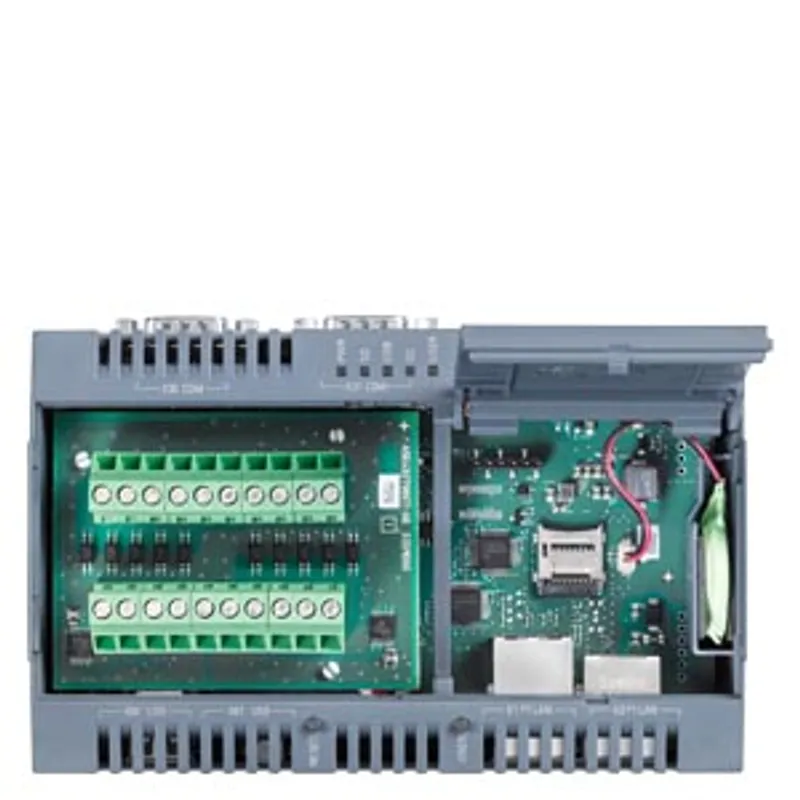

Siemens 6ES7647-0KA02-0AA2
SIMATIC IoT2000, input module sink/source, 10x DI, ARDUINO Shield for SIMATIC IoT2020 and IoT2040
- MPN
- 6ES7647-0KA02-0AA2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7647-0KA02-0AA2?
SIMATIC IoT2000, input module sink/source, 10x DI, ARDUINO Shield for SIMATIC IoT2020 and IoT2040
Specifications
General information
| Product type designation | IOT2000 |
Installation type/mounting
| Mounting | On Arduino interface |
| Design | Plug-in card |
Supply voltage
| Type of supply voltage | 24 V DC |

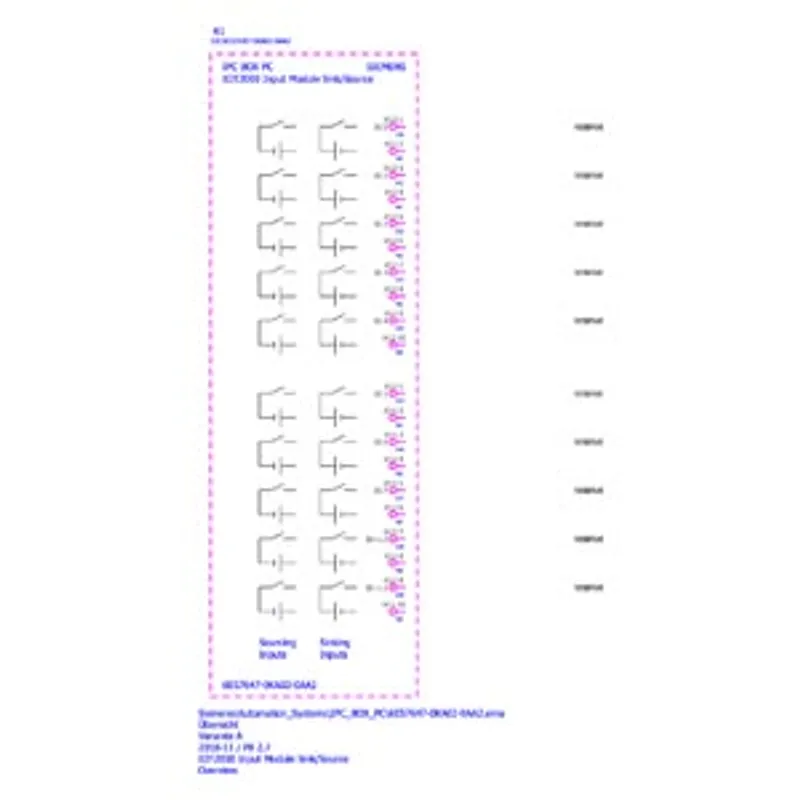

Digital inputs
| Number of digital inputs | 10 |
| Input voltage — for signal "0" | < 5 V DC |
| Input voltage — for signal "1" | > 12 V DC |
| Input current — for signal "0", max. (permissible quiescent current) | 0.9 mA |
| Input current — for signal "1", typ. | 2.1 mA |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max. | 1.5 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max. | 1.5 ms |
Digital outputs
| Type of digital output | without |
Degree and class of protection
| IP (at the front) | 20 |
Standards, approvals, certificates
| CE mark | Yes |
| UL approval | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| FCC | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
Mechanics/material
| Enclosure material (front) | plastic |
| Enclosure material (front) — plastic | Yes |
| Enclosure material (front) — Aluminum | No |
| Enclosure material (front) — Stainless steel | No |
| Enclosure material (front) — Glass | No |

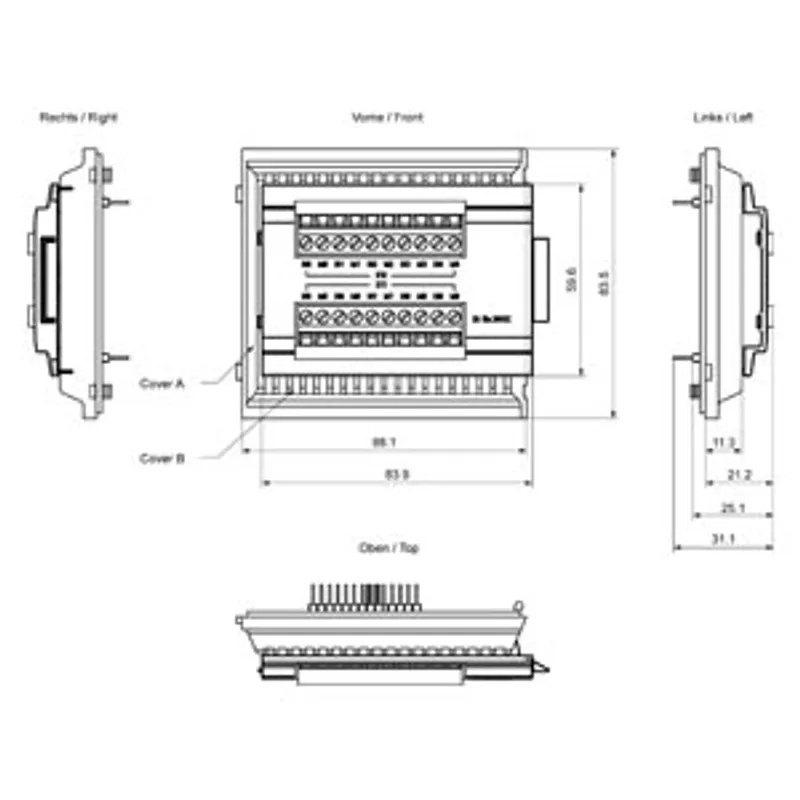

Dimensions
| Width | 75 mm |
| Height | 57 mm |
| Depth | 32 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7647-0KA02-0AA2: frequently asked questions
When can 6ES7647-0KA02-0AA2 be shipped?
6ES7647-0KA02-0AA2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7647-0KA02-0AA2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7647-0KA02-0AA2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7647-0KA02-0AA2, subject to availability and destination.
