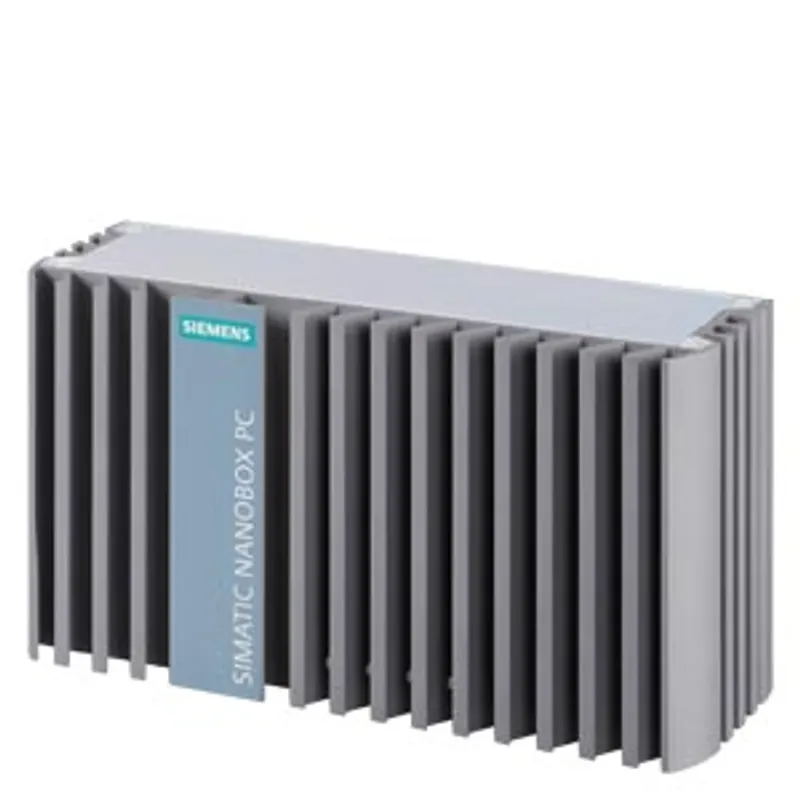

Siemens 6ES7647-8CE21-2AC3

SIMATIC IPC227G 2x display port; 3x 10/100/1000 Mbps Ethernet; 4x USB3.0; 2x M.2 extension slot

MPN: 6ES7647-8CE21-2AC3
Category: SIMATIC IPC227G

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7647-8CE21-2AC3?

SIMATIC IPC227G 2x display port; 3x 10/100/1000 Mbps Ethernet; 4x USB3.0; 2x M.2 extension slot; DC 24 V industrial power supply

Specifications

General information

Product type designation

IPC227G

Installation type/mounting

Mounting	book mounting
Design	Box PC, built-in unit

Supply voltage

Type of supply voltage	24 V DC
Rated value (DC)	24 V
Mains buffering — Mains/voltage failure stored energy time	20 ms

Input current

Current consumption (rated value)	0.7 A
Current consumption, max.	1.9 A
Inrush current, max.	2.5 A

Processor

Processor type	Intel Atom X6413E
Chipset	SoC

Graphic

Graphics controller

Integrated

Drives

SSD	Yes; 256 Eco

Storage

Type of memory	DDR4 SO-DIMM
Main memory	8 GB RAM
Capacity of main memory, max.	8 Gbyte

Interfaces

Number of industrial Ethernet interfaces	3; 3x Ethernet (RJ45)
Video interfaces — Graphics interface	2x DisplayPort
Industrial Ethernet — Industrial Ethernet interface — 100 Mbps	Yes
Industrial Ethernet — Industrial Ethernet interface — 1000 Mbps	Yes

Protocols

Protocols (Ethernet) — TCP/IP

Yes

Interrupts/diagnostics/status information

LED status display

1x power, 3x user

Integrated Functions

Monitoring functions — Temperature monitoring	Yes
Monitoring functions — Fan	No
Monitoring functions — Monitoring function via network	Optional

Degree and class of protection

IP degree of protection

IP40

Standards, approvals, certificates

CE mark	Yes
cULus	Yes
RCM (formerly C-TICK)	Yes
KC approval	Yes
EAC (formerly Gost-R)	Yes
FCC	Yes
Dust protection	Protection against foreign bodies > 1 mm

Ambient conditions

Ambient temperature during operation — min.	0 °C
Ambient temperature during operation — max.	55 °C
Ambient temperature during storage/transportation — min.	-20 °C
Ambient temperature during storage/transportation — max.	60 °C
Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6	tested according to IEC 60068-2-6: 5 Hz to 8.4 Hz: 3.5 mm, 8.4 Hz to 200 Hz : 9.8m/s² (1 g) (except DIN Rail) 10 Hz to 58 Hz: 0.0375 mm, 58 Hz to 500 Hz: 4.9 m/s² (0.5 g) (DIN Rail)

Operating systems

pre-installed operating system	Windows 10 IoT Enterprise 2021 LTSC
pre-installed operating system — Windows 10	Yes; Windows 10 IoT Enterprise 2021 LTSC
pre-installed operating system — Windows 10 Enterprise	Yes; Windows 10 IoT Enterprise 2021 LTSC

Dimensions

Width	191 mm
Height	100 mm
Depth	64 mm

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7647-8CE21-2AC3PDF

6ES7647-8CE21-2AC3: frequently asked questions

When can 6ES7647-8CE21-2AC3 be shipped?

6ES7647-8CE21-2AC3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7647-8CE21-2AC3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7647-8CE21-2AC3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7647-8CE21-2AC3, subject to availability and destination.
