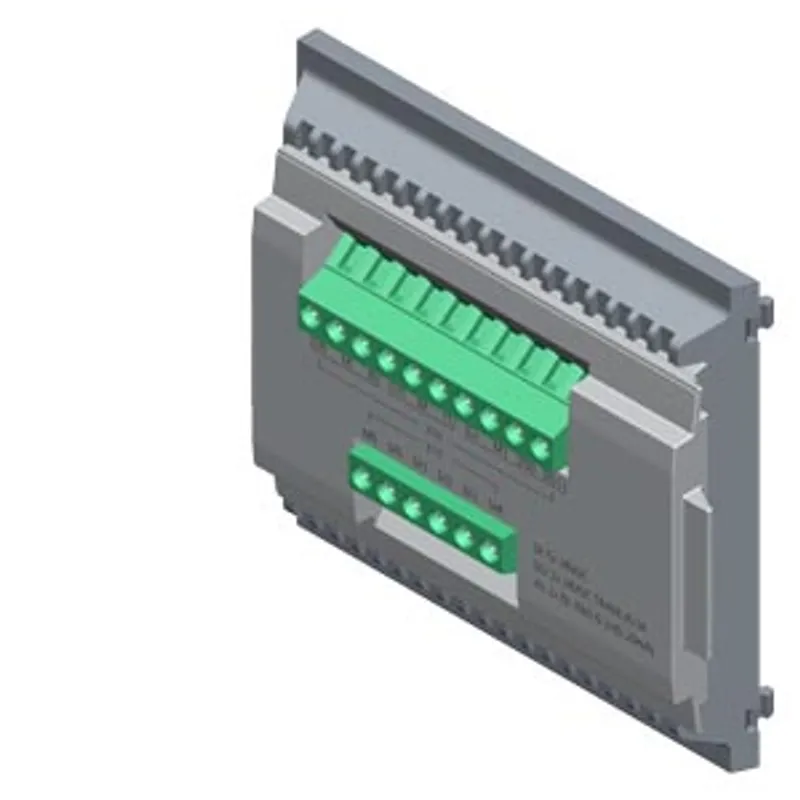

Siemens 6ES7647-0KA01-0AA2
SIMATIC IoT2000 input/output module, 5x DI 2x AI 2x DQ, ARDUINO Shield for SIMATIC IoT2040 and IoT2050
- MPN
- 6ES7647-0KA01-0AA2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7647-0KA01-0AA2?
SIMATIC IoT2000 input/output module, 5x DI 2x AI 2x DQ, ARDUINO Shield for SIMATIC IoT2040 and IoT2050
Specifications
General information
| Product type designation | IOT2000 |
Installation type/mounting
| Mounting | On Arduino interface |
| Design | Plug-in card |
Supply voltage
| Type of supply voltage | 24 V DC |
Digital inputs
| Number of digital inputs | 5 |
| Input voltage — Type of input voltage | DC |
| Input voltage — for signal "0" | < 5 V DC |
| Input voltage — for signal "1" | > 12 V DC |
| Input current — for signal "0", max. (permissible quiescent current) | 0.9 mA |
| Input current — for signal "1", typ. | 2.1 mA |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max. | 1.5 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max. | 1.5 ms |
Digital outputs
| Type of digital output | transistor |
| Number of digital outputs | 2 |
| Short-circuit protection | Yes |
| Output voltage — Type of output voltage | DC |
| Output voltage — permissible voltage at output, min. | 0 V |
| Output voltage — permissible voltage at output, max. | 28.8 V |
| Output current — for signal "1" rated value | 0.3 A |
| Parallel switching of two outputs — for uprating | No |
| Switching frequency — with resistive load, max. | 10 Hz |
| Switching frequency — with inductive load, max. | 0.5 Hz |
Analog inputs
| Number of analog inputs | 2 |
| Input ranges — Voltage | Yes; 0 to 10V |
| Input ranges — Current | Yes; 0 to 20 mA |
| Input ranges — Thermocouple | No |
| Input ranges — Resistance thermometer | No |
| Input ranges — Resistance | No |
| Input ranges (rated values), voltages — 0 to +10 V | Yes |
| Input ranges (rated values), currents — 0 to 20 mA | Yes |
Analog value generation for the inputs
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 9 bit |
Interrupts/diagnostics/status information
| LED status display | No |
Integrated Functions
| Monitoring functions — Temperature monitoring | No |
| Monitoring functions — Fan | No |
Degree and class of protection
| IP (at the front) | n.a. |
Standards, approvals, certificates
| CE mark | Yes |
| UL approval | Yes |
| cULus | Yes |
| KC approval | Yes; For use inside SIMATIC IoT2040 |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 50 °C |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | Tested according to IEC 60068-2-6: 5 Hz to 9 Hz: 3.5 mm; 9 Hz to 200 Hz: 9.8 m/s² |
Operating systems
| without operating system | Yes |
Dimensions
| Width | 75 mm |
| Height | 57 mm |
| Depth | 32 mm |
