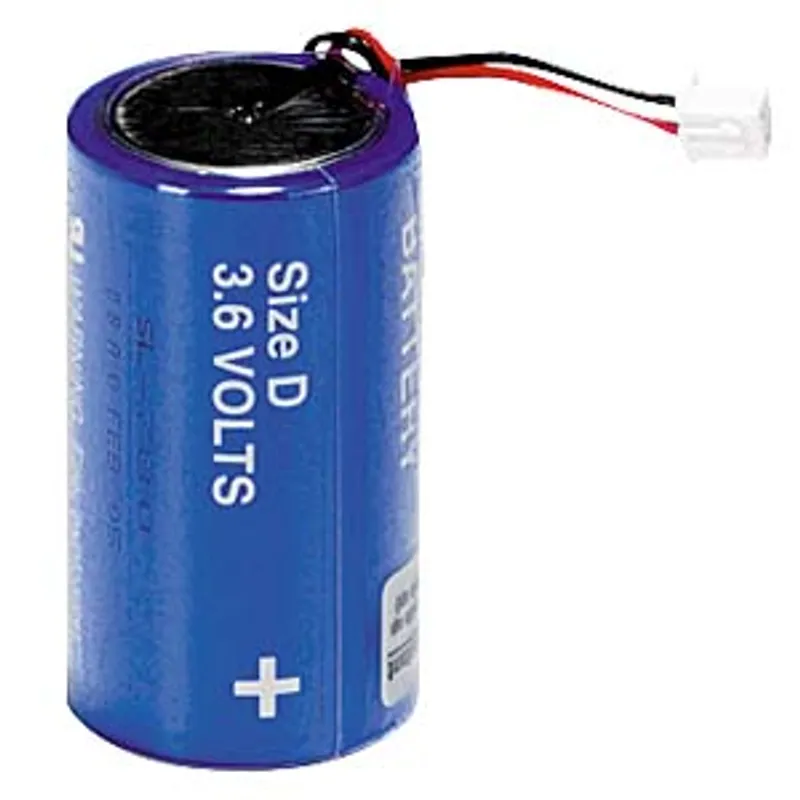

Siemens 6ES7623-1AE01-5AA0
Lithium battery SIMATIC HMI, C7, S7 and PG, scope of supply: 1 lithium battery, with 450 mm connection cable
- MPN
- 6ES7623-1AE01-5AA0
- Category
- CPU & Controllers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7623-1AE01-5AA0?
lithium battery SIMATIC HMI, C7, S7 and PG, scope of supply: 1 lithium battery, with 450 mm connection cable, 1 210 mm extension, 2 cable ties
Specifications
General information
| Product type designation | Lithium battery |
Installation type/mounting
| Wall mounting/direct mounting | Yes; in HMI devices, battery compartment |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 3.6 V |
Accumulator
| Charge status display | No |
| Rechargeable | No |
| Capacity | 1.6 A·h |
| Lithium-ion | Yes; SL-361 |
| Special design | Yes; 2/3 AA |
Standards, approvals, certificates
| RoHS conformity | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 55 °C |
| Ambient temperature during storage/transportation — min. | -20 °C; shelf life at room temperature is 10 years with a capacity loss of 1 % per year |
| Ambient temperature during storage/transportation — max. | 70 °C; shelf life at room temperature is 10 years with a capacity loss of 1 % per year |
| Relative humidity — Operation, max. | 90 % |
Accessories
| belongs to product | SIMATIC C7 |
Dimensions
| Length | 33 mm |
| Diameter | 14.7 mm |
Weights
| Weight (without packaging) | 14 g |
| Weight (with packaging) | 16 g |
Scope of supply
| Delivery quantity in pieces | 1; Incl. 45 mm + 210 mm connecting cable |
Other
| Merchandise | Yes; SL-361 PGHK |
| Manufacturer name | Tadiran Batteries GmbH |
| Manufacturer's address | Industriestr. 22, 63654 Büdingen, Germany |
| contacting the manufacturer | Email: anfrage@distrelec.de |
| Target devices | for TD17, OP17, OP25, OP27, OP35, OP37, TP27, TP37, OP/TP270, MP270, MP270B, MP370, C7-621, C7-623, C7-624, C7-626 and PG 7xx |
| Note: | Dispose of battery (lithium) properly; hazardous product! |
