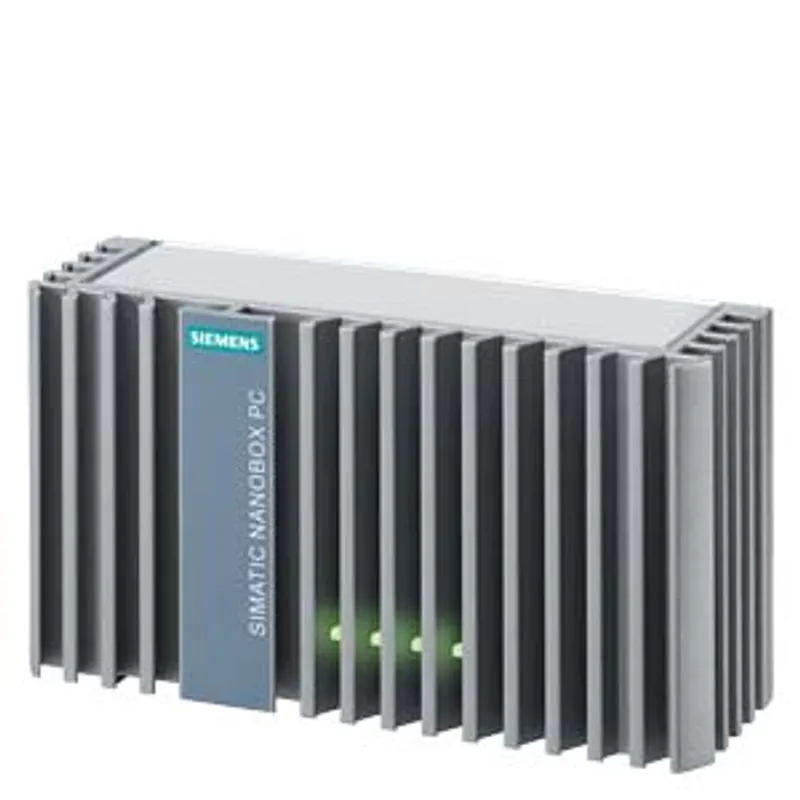

Siemens 6ES7647-8BD31-0CW1
SIMATIC IPC227E (Nanobox PC); 1x display port; 2x 10/100/1000 Mbps Ethernet RJ45; 1x USB3.0, 3x USB2.0
- MPN
- 6ES7647-8BD31-0CW1
- Category
- SIMATIC IPC227E
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7647-8BD31-0CW1?
SIMATIC IPC227E (Nanobox PC); 1x display port; 2x 10/100/1000 Mbps Ethernet RJ45; 1x USB3.0, 3x USB2.0; CFast slot; 24 V DC industrial power supply Industrial Edge (Simatic)
Specifications
General information
| Product type designation | IPC227E |
Installation type/mounting
| Mounting | DIN rail, wall mounting, portrait mounting |
| Design | Box PC, built-in unit |
Supply voltage
| Type of supply voltage | 24 V DC |
| Mains buffering — Mains/voltage failure stored energy time | 20 ms |
Processor
| Processor type | Intel Celeron N2930 |
| Chipset | SoC |
Graphic
| Graphics controller | Integrated |
Drives
| SSD | Yes; 240 GB |
Storage
| Type of memory | DDR3L SO-DIMM |
| Main memory | 8 GB RAM |
| Capacity of main memory, max. | 8 Gbyte |
Hardware configuration
| Slots — Number of compact flash slots | 1; CFast |
Interfaces
| Number of industrial Ethernet interfaces | 2; 2x Ethernet (RJ45) |
| serial interface | No |
| Video interfaces — Graphics interface | 1x DisplayPort |
| Industrial Ethernet — Industrial Ethernet interface — 100 Mbps | Yes |
| Industrial Ethernet — Industrial Ethernet interface — 1000 Mbps | Yes |
Interrupts/diagnostics/status information
| LED status display | 1x power, 3x user |
Integrated Functions
| Monitoring functions — Temperature monitoring | Yes |
| Monitoring functions — Fan | No |
| Monitoring functions — Monitoring function via network | Optional |
Degree and class of protection
| IP degree of protection | IP40 |
Standards, approvals, certificates
| CE mark | Yes |
| UL approval | Yes |
| UL approval — UL 508 | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| FCC | Yes |
| Dust protection | Protection against foreign bodies > 1 mm |
| Use in hazardous areas — ATEX Zone 2 | Yes; Optional |
| Use in hazardous areas — IECEx Zone 2 | Yes; Optional |
| Use in hazardous areas — cULus Class I Zone 2, Division 2 | Yes; Optional |
| Marine approval — Germanischer Lloyd (GL) | Yes |
| Marine approval — American Bureau of Shipping (ABS) | Yes |
| Marine approval — Bureau Veritas (BV) | Yes |
| Marine approval — Det Norske Veritas (DNV) | Yes |
| Marine approval — Korean Register of Shipping (KRS) | Yes |
| Marine approval — Lloyds Register of Shipping (LRS) | Yes |
| Marine approval — Nippon Kaiji Kyokai (Class NK) | Yes |
| Marine approval — Chinese Classification Society (CCS) | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
Operating systems
| pre-installed operating system | SIMATIC Industrial OS |
Dimensions
| Width | 191 mm |
| Height | 100 mm |
| Depth | 60 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7647-8BD31-0CW1: frequently asked questions
When can 6ES7647-8BD31-0CW1 be shipped?
6ES7647-8BD31-0CW1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7647-8BD31-0CW1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7647-8BD31-0CW1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7647-8BD31-0CW1, subject to availability and destination.
