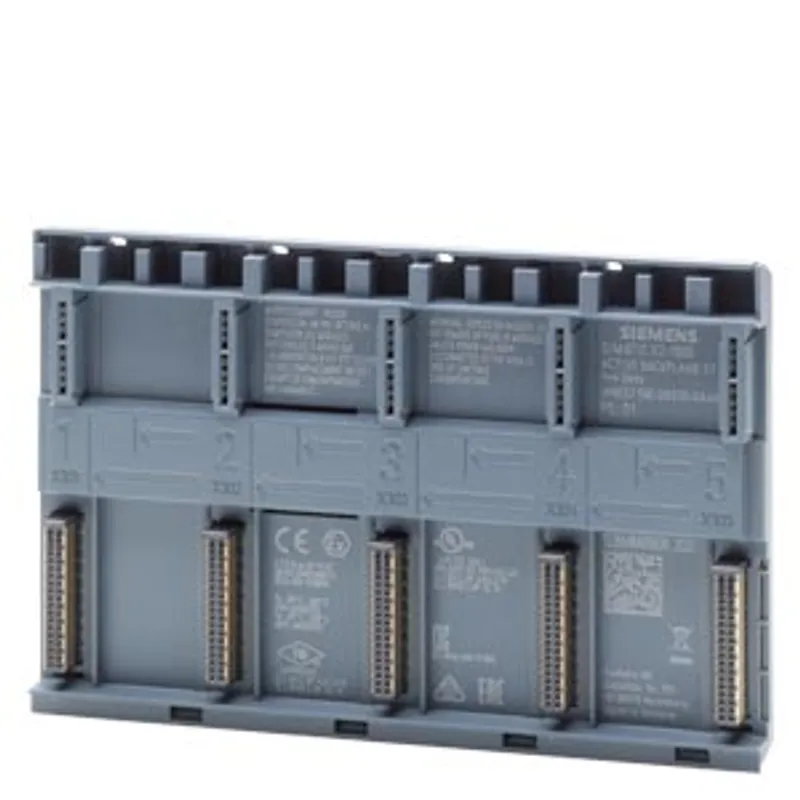

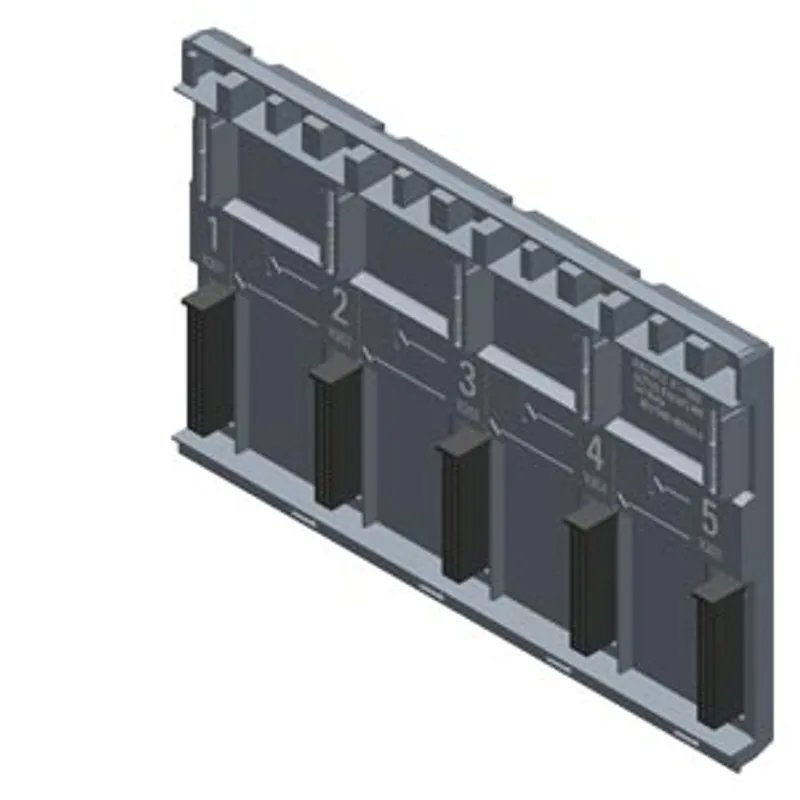

Siemens 6ES7590-0BD00-0AA0
SIMATIC S7-1500 / ET 200MP active backplane bus 4 slots for inserting S7-1500 I/O modules for hot swapping…
- MPN
- 6ES7590-0BD00-0AA0
- Category
- Active backplane bus
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7590-0BD00-0AA0?
SIMATIC S7-1500 / ET 200MP active backplane bus 4 slots for inserting S7-1500 I/O modules for hot swapping for use in the ET 200MP with IM 155-5 PN HF (from FW V4.4.1); S7-1500 mounting rail and slot covers to be ordered separately
Specifications
General information
| Product type designation | Active Backplane ST 1+4 Slot |
| HW functional status | from FS01 |
| Firmware version | from V1.0.0 |
| Firmware version — FW update possible | Yes |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Isochronous mode | Yes |
| Product function — Prioritized startup | Yes |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V16 / V17 |
| Engineering with — STEP 7 configurable/integrated from version | V5.6 and higher |
| Engineering with — PROFINET from GSD version/GSD revision | V2.35 / - |
Power
| Power consumption from the backplane bus | 2 W |
Power loss
| Power loss, typ. | 2 W |
Hardware configuration
| Slots — Grid size | 35 mm; Utilization of 25 mm-wide modules possible |
| Slots — Number of slots | 5 |
| Slots — Number of slots — of which for CPU, max. | 1; for S7-1500H CPU with CPU firmware V3.1 or higher; interface modules up to V1.1.0 only (active backplane bus) |
| Slots — Number of slots — of which for IM, max. | 1 |
| Slots — Number of slots — of which for PS, max. | 4; Max. 2 PS per station |
| Slots — Number of slots — of which for IO/CM/CP/TM, max. | 4 |
| Slots — Number of slots — of which for F-IO, max. | 4 |
| Slots — Number of single-width slots, max. | 4 |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -30 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -30 °C |
| Ambient temperature during operation — vertical installation, max. | 40 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |

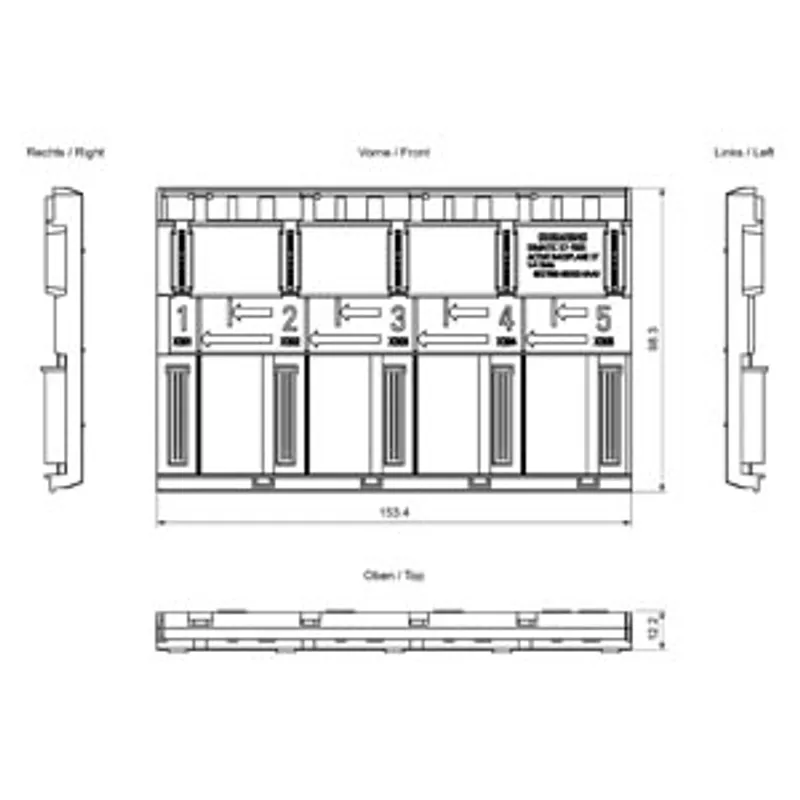

Dimensions
| Width | 154 mm |
| Height | 99 mm |
| Depth | 14 mm |
Weights
| Weight, approx. | 128 g |
