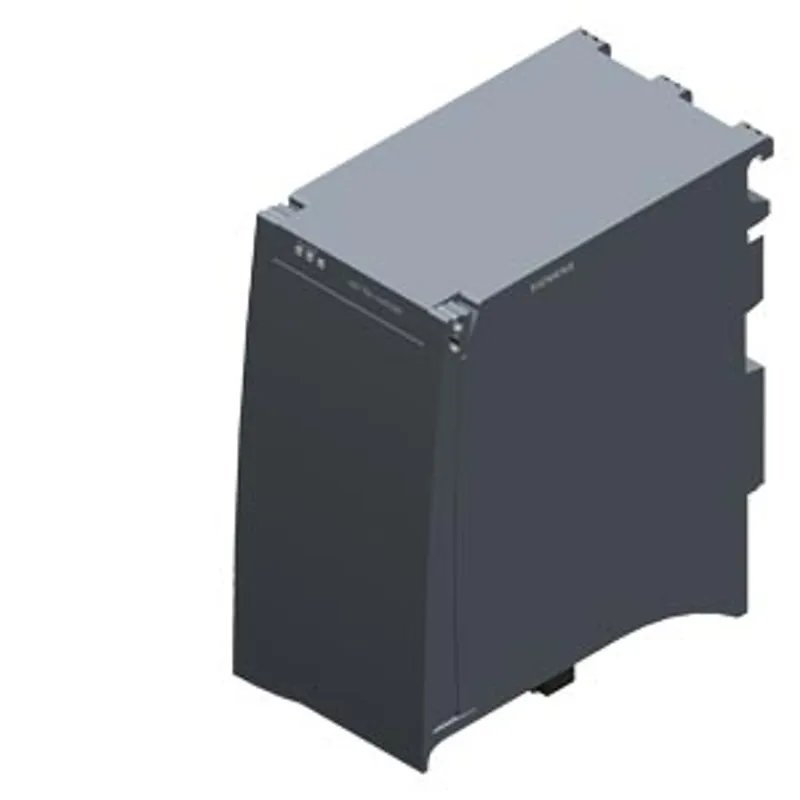

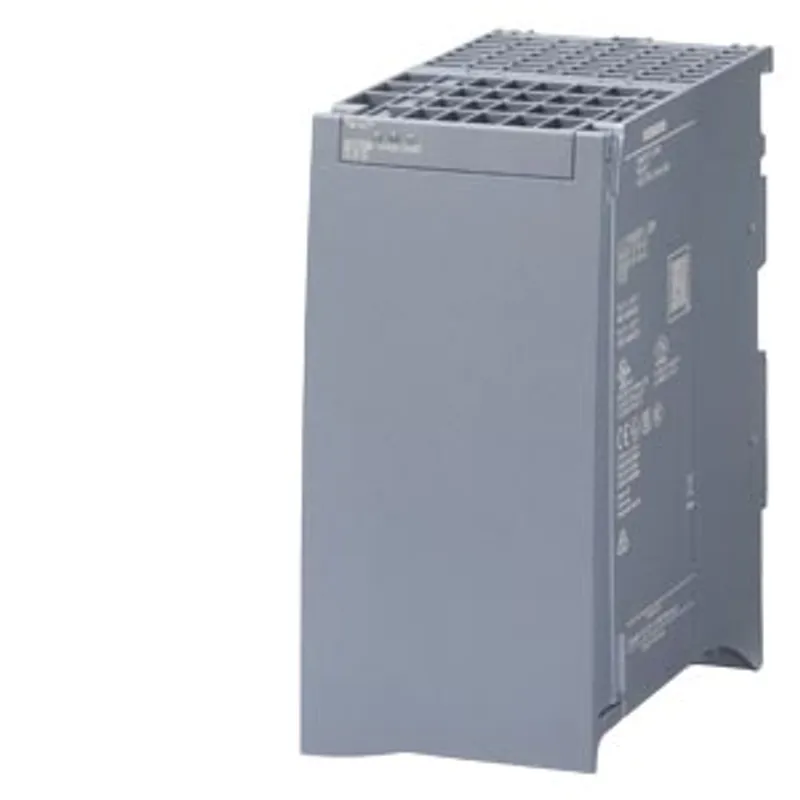

Siemens 6ES7558-1AA00-0AB0
SIMATIC S7-1500, TM MFP, Technology module Multi functional platform incl. 2 x Ethernet 2 x USB 1 x DPP…
- MPN
- 6ES7558-1AA00-0AB0
- Category
- CPU & Controllers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7558-1AA00-0AB0?
SIMATIC S7-1500, TM MFP, Technology module Multi functional platform incl. 2 x Ethernet 2 x USB 1 x DPP Operating system: Industrial OS
Specifications
General information
| Product type designation | TM MFP |
| Firmware version | V1.1 |
| Firmware version — FW update possible | Yes |
| Product function — I&M data | Yes; I&M0 to I&M4 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | integrated as of V19 with HSP or as of V20 |
| Engineering with — STEP 7 configurable/integrated from version | - / - |
| Engineering with — PROFIBUS from GSD version/GSD revision | - / - |
| Engineering with — PROFINET from GSD version/GSD revision | - / - |
Installation type/mounting
| Mounting position | Horizontal, vertical |
| Rail mounting | Yes |
| Control cabinet installation | Yes |
Power
| Power consumption from the backplane bus | 25 W |
Power loss
| Power loss, typ. | 10.5 W |
Drives
| SSD | Yes; 128 GB |
Address area
| Address space per module — Inputs | 256 byte |
| Address space per module — Outputs | 256 byte |
Interfaces
| Number of Ethernet interfaces | 2 |
| Number of USB interfaces | 2 |
| SD card slot | No |
| Video interfaces — Graphics interface | 1x DisplayPort |
Interface types
| RJ 45 (Ethernet) — 1000 Mbps | Yes |
| USB port — USB specification | USB 3.0 |
| USB port — Design of the USB ports | USB type A socket |
Protocols
| Protocols (Ethernet) — GigE Vision | No |
| Web server — supported | No |
Interrupts/diagnostics/status information
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED — RUN LED | Yes |
| Diagnostics indication LED — ERROR LED | Yes |
| Diagnostics indication LED — MAINT LED | Yes |
| Diagnostics indication LED — LINK LED | Yes |
| Diagnostics indication LED — ACT LED | Yes |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | 0 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | 0 °C |
| Ambient temperature during operation — vertical installation, max. | 40 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
Operating systems
| pre-installed operating system — Industrial OS | Yes |
Decentralized operation
| to SIMATIC S7-300 | No |
| to SIMATIC S7-400 | No |
| to SIMATIC S7-1200 | No |
| to SIMATIC S7-1500 | No |
| to standard PROFIBUS master | No |
| to standard PROFINET controller | No |

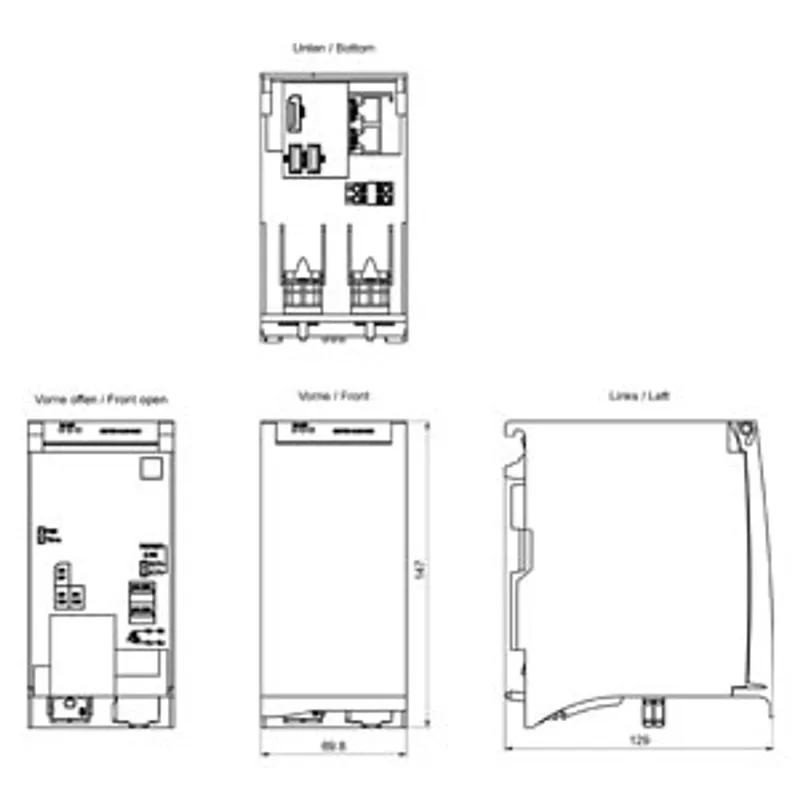

Dimensions
| Width | 70 mm |
| Height | 147 mm |
| Depth | 129 mm |
Weights
| Weight, approx. | 645 g |
