Active backplane bus Parts
Compare Active backplane bus
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | Slots — Number of slots | Slots — Number of slots — of which for PS, max. | Slots — Number of slots — of which for IO/CM/CP/TM, max. | Slots — Number of slots — of which for F-IO, max. |
|---|---|---|---|---|---|

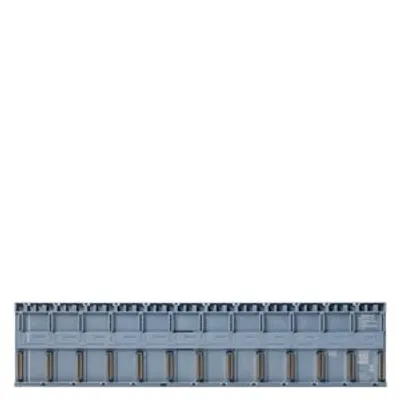

| 6ES7590-0BL00-0AA0 | Active backplane ST 1+12 slot | 13 | 12; Max. 2 PS per station | 12 | 12 |

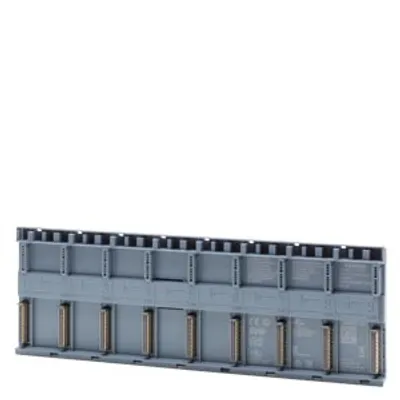

| 6ES7590-0BH00-0AA0 | Active Backplane ST 1+8 Slot | 9 | 8; Max. 2 PS per station | 8 | 8 |

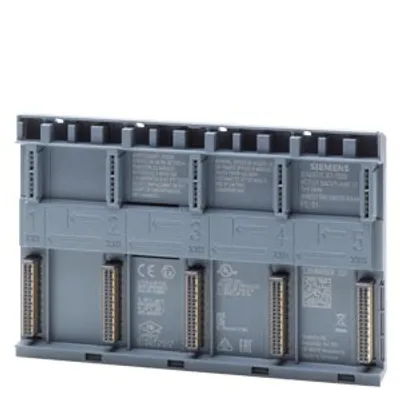

| 6ES7590-0BD00-0AA0 | Active Backplane ST 1+4 Slot | 5 | 4; Max. 2 PS per station | 4 | 4 |
Common to all listed parts
| Firmware version — FW update possible | Yes |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Isochronous mode | Yes |
| Product function — Prioritized startup | Yes |
| Engineering with — STEP 7 configurable/integrated from version | V5.6 and higher |
| Power consumption from the backplane bus | 2 W |
| Power loss, typ. | 2 W |
| Slots — Grid size | 35 mm; Utilization of 25 mm-wide modules possible |
