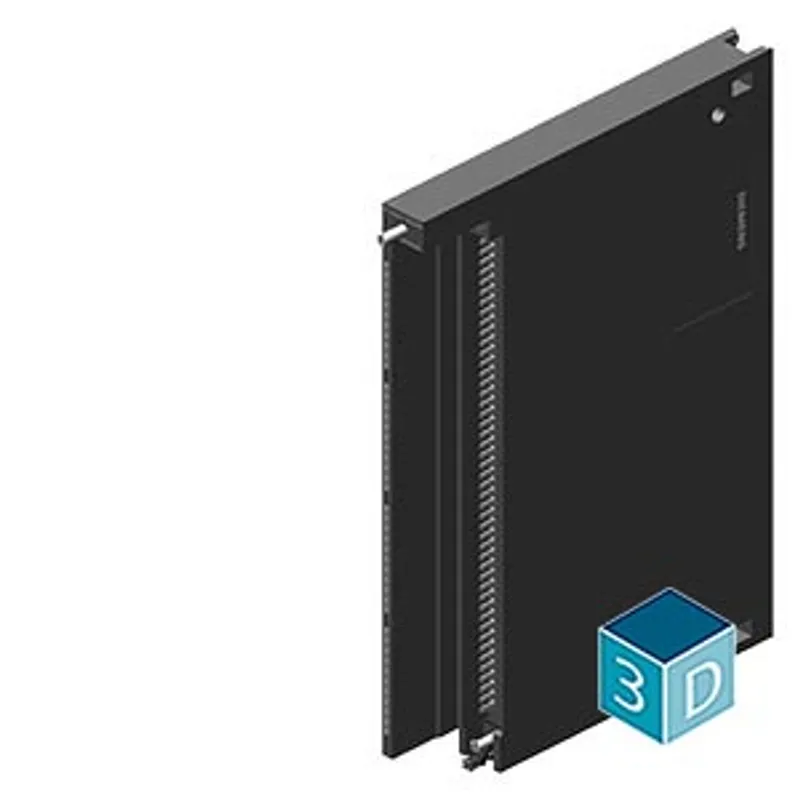

Siemens 6ES7421-1FH20-0AA0

SIMATIC S7-400, digital input SM 421, isolated 16 DI; UC 120/230V Inputs according to IEC1131-2 Type 2

MPN
6ES7421-1FH20-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7421-1FH20-0AA0?

SIMATIC S7-400, digital input SM 421, isolated 16 DI; UC 120/230V Inputs according to IEC1131-2 Type 2

Specifications

Input current

from backplane bus 5 V DC, max.80 mA

Power loss

Power loss, typ.12 W

Digital inputs

Number of digital inputs16
Input characteristic according to IEC 61131Type 2
Number of simultaneously controllable inputs — Number of simultaneously controllable inputs16
Input voltage — Type of input voltageAC/DC
Input voltage — Rated value (UC)230 V; 120/230 V UC (47 ... 63 Hz)
Input voltage — for signal "0"0 to 40 V AC/ -40 to +40 V DC
Input voltage — for signal "1"74 to 264 V AC; 80 to 264 V DC, -80 to -264 V
Input current — for signal "0", min.0 mA; AC: 0 mA; DC: 0 mA
Input current — for signal "0", max. (permissible quiescent current)6 mA; AC: 6 mA; DC: 2 mA
Input current — for signal "1", typ.10 mA; at 120 V: 10 mA AC, 1.8 mA DC; at 230 V: 14 mA AC, 2 mA DC
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max.20 ms; AC: 20 ms; DC: 15 ms
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max.30 ms; AC: 30 ms; DC: 25 ms
Cable length — shielded, max.1 000 m
Cable length — unshielded, max.600 m

Encoder

Connectable encoders — 2-wire sensorYes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.5 mA; AC: 5 mA

Interrupts/diagnostics/status information

Diagnostics functionNo
Diagnostics indication LED — Status indicator digital input (green)Yes

Potential separation

Potential separation digital inputs — between the channelsYes
Potential separation digital inputs — between the channels, in groups of4
Potential separation digital inputs — between the channels and backplane busYes

Isolation

Isolation tested with1 500 V AC

Dimensions

Width25 mm
Height290 mm
Depth210 mm

Weights

Weight, approx.650 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

6ES7421-1FH20-0AA0: frequently asked questions

When can 6ES7421-1FH20-0AA0 be shipped?

6ES7421-1FH20-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7421-1FH20-0AA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7421-1FH20-0AA0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7421-1FH20-0AA0, subject to availability and destination.
