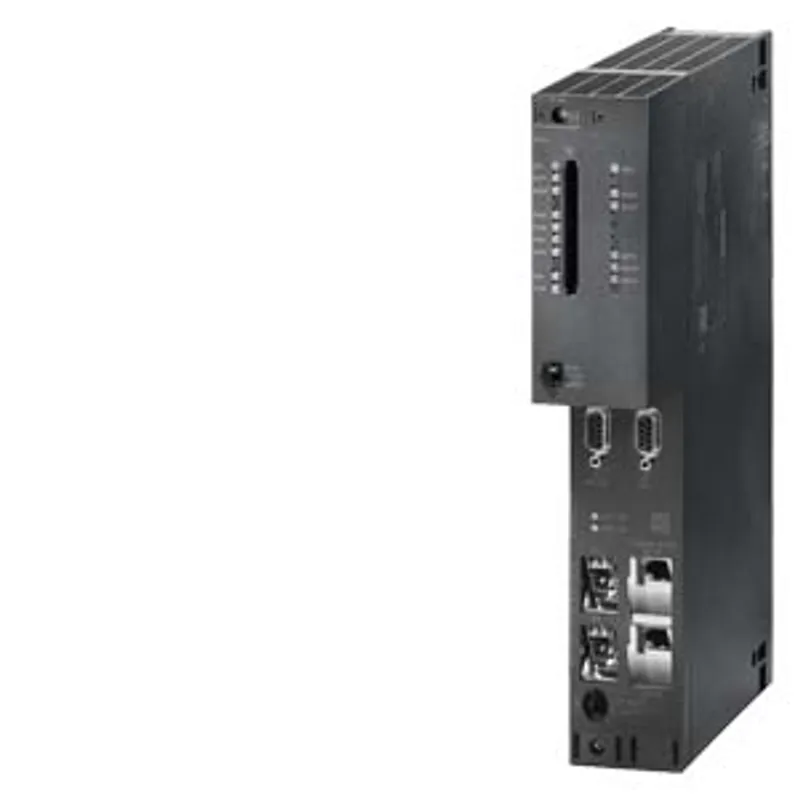

Siemens 6ES7416-5HS06-0AB0

SIMATIC S7-400H, CPU 416-5H, central processing unit for S7-400H and S7-400F/FH, 5 interfaces: 1x MPI/DP

MPN: 6ES7416-5HS06-0AB0
Category: CPU 416H

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7416-5HS06-0AB0?

SIMATIC S7-400H, CPU 416-5H, central processing unit for S7-400H and S7-400F/FH, 5 interfaces: 1x MPI/DP, 1x DP, 1x PN and 2 for sync modules, 16 MB memory (10 MB data/6 MB program)

Specifications

General information

Product type designation	CPU 416-5H PN/DP
HW functional status	1
Firmware version	V6.0
Product function — Isochronous mode	No
Engineering with — Programming package	As of STEP 7 V5.5 SP2 with HF1

CiR - Configuration in RUN

CiR synchronization time, basic load	100 ms
CiR synchronization time, time per I/O byte	0 µs

Supply voltage

Rated value (DC)

Power supply via system power supply

Input current

from backplane bus 5 V DC, typ.	1.6 A
from backplane bus 5 V DC, max.	1.9 A
from backplane bus 24 V DC, max.	150 mA; 150 mA per DP interface
from interface 5 V DC, max.	90 mA; At each DP interface

Power loss

Power loss, typ.

7.5 W

Storage

Type of memory	RAM
Work memory — integrated	16 Mbyte
Work memory — integrated (for program)	6 Mbyte
Work memory — integrated (for data)	10 Mbyte
Work memory — expandable	No
Load memory — expandable FEPROM	Yes; with Memory Card (FLASH)
Load memory — expandable FEPROM, max.	64 Mbyte
Load memory — integrated RAM, max.	1 Mbyte
Load memory — expandable RAM	Yes
Load memory — expandable RAM, max.	64 Mbyte
Backup — present	Yes
Backup — with battery	Yes; all data
Backup — without battery	No

Battery

Backup battery — Backup current, typ.	180 µA; Valid up to 40°C
Backup battery — Backup current, max.	1 000 µA
Backup battery — Backup time, max.	Dealt with in the module data manual with the secondary conditions and the factors of influence
Backup battery — Feeding of external backup voltage to CPU	5 V DC to 15 V DC

CPU processing times

for bit operations, typ.	12.5 ns
for word operations, typ.	12.5 ns
for fixed point arithmetic, typ.	12.5 ns
for floating point arithmetic, typ.	25 ns

CPU-blocks

DB — Number, max.	16 000; Number range: 1 to 16000
DB — Size, max.	64 kbyte
FB — Number, max.	8 000; Number range: 0 to 7999
FB — Size, max.	64 kbyte
FC — Number, max.	8 000; Number range: 0 to 7999
FC — Size, max.	64 kbyte
OB — Number, max.	see instruction list
OB — Size, max.	64 kbyte
OB — Number of free cycle OBs	1; OB 1
OB — Number of time alarm OBs	8; OB 10-17
OB — Number of delay alarm OBs	4; OB 20-23
OB — Number of cyclic interrupt OBs	9; OB 30-38
OB — Number of process alarm OBs	8; OB 40-47
OB — Number of DPV1 alarm OBs	3; OB 55-57
OB — Number of startup OBs	2; OB 100, 102
OB — Number of asynchronous error OBs	9; OB 80-88
OB — Number of synchronous error OBs	2; OB 121, 122
Nesting depth — per priority class	24
Nesting depth — additional within an error OB	2

Counters, timers and their retentivity

S7 counter — Number	2 048
S7 counter — Retentivity — adjustable	Yes
S7 counter — Retentivity — preset	Z 0 to Z 7
S7 counter — Counting range — lower limit	0
S7 counter — Counting range — upper limit	999
IEC counter — present	Yes
IEC counter — Type	SFB
IEC counter — Number	Unlimited (limited only by RAM capacity)
S7 timer — Number	2 048
S7 timer — Retentivity — adjustable	Yes
S7 timer — Retentivity — preset	No times retentive
S7 timer — Time range — lower limit	10 ms
S7 timer — Time range — upper limit	9 990 s
IEC timer — present	Yes
IEC timer — Type	SFB
IEC timer — Number	Unlimited (limited only by RAM capacity)

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.	Total working and load memory (with backup battery)
Flag — Size, max.	16 384 byte
Flag — Retentivity available	Yes
Flag — Retentivity preset	MB 0 to MB 15
Flag — Number of clock memories	8; in 1 memory byte
Local data — adjustable, max.	64 kbyte
Local data — preset	32 kbyte

Address area

I/O address area — Inputs	16 kbyte
I/O address area — Outputs	16 kbyte
Process image — Inputs, adjustable	16 kbyte
Process image — Outputs, adjustable	16 kbyte
Process image — Inputs, default	1 024 byte
Process image — Outputs, default	1 024 byte
Process image — consistent data, max.	244 byte
Process image — Access to consistent data in process image	Yes
Subprocess images — Number of subprocess images, max.	15
Digital channels — Inputs	131 072
Digital channels — Inputs — of which central	131 072
Digital channels — Outputs	131 072
Digital channels — Outputs — of which central	131 072
Analog channels — Inputs	8 192
Analog channels — Inputs — of which central	8 192
Analog channels — Outputs	8 192
Analog channels — Outputs — of which central	8 192

Hardware configuration

Number of expansion units, max.	21
connectable OPs	95
Multicomputing	No
Interface modules — Number of connectable IMs (total), max.	6
Interface modules — Number of connectable IM 460s, max.	6
Interface modules — Number of connectable IM 463s, max.	4; Single mode only
Number of DP masters — integrated	2
Number of DP masters — via CP	10; CP 443-5 Extended
Number of DP masters — Mixed mode IM + CP permitted	No
Number of DP masters — via interface module	0
Number of IO Controllers — Integrated	1
Number of IO Controllers — Via CP	0
Number of operable FMs and CPs (recommended) — FM	See manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections
Number of operable FMs and CPs (recommended) — CP, PtP	See manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections
Number of operable FMs and CPs (recommended) — PROFIBUS and Ethernet CPs	14; Of which max. 10 CP as DP master
Slots — required slots	2

Time of day

Clock — Hardware clock (real-time)	Yes
Clock — retentive and synchronizable	Yes
Clock — Resolution	1 ms
Clock — Deviation per day (buffered), max.	1.7 s; Power off
Clock — Deviation per day (unbuffered), max.	8.6 s; Power on
Operating hours counter — Number	16
Operating hours counter — Number/Number range	0 to 15
Operating hours counter — Range of values	SFCs 2, 3 and 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours
Operating hours counter — Granularity	1 h
Operating hours counter — retentive	Yes
Clock synchronization — supported	Yes
Clock synchronization — to MPI, master	Yes
Clock synchronization — on MPI, device	Yes
Clock synchronization — to DP, master	Yes
Clock synchronization — on DP, device	Yes
Clock synchronization — in AS, master	Yes
Clock synchronization — in AS, device	Yes
Clock synchronization — on Ethernet via NTP	Yes; As client
Time difference in system when synchronizing via — Ethernet, max.	10 ms; Via NTP
Time difference in system when synchronizing via — MPI, max.	200 ms

Interfaces

Number of RS 485 interfaces	2
Number of other interfaces	2; Fiber-optic interface
Optical interface	No

1. Interface

Interface type	MPI/PROFIBUS DP
Isolated	Yes
Interface types — RS 485	Yes
Interface types — Output current of the interface, max.	150 mA
Protocols — MPI	Yes
Protocols — PROFIBUS DP master	Yes
Protocols — PROFIBUS DP device	No
MPI — Number of connections	44; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
MPI — Transmission rate, max.	12 Mbit/s
MPI — Services — PG/OP communication	Yes
MPI — Services — Routing	Yes
MPI — Services — Global data communication	No
MPI — Services — S7 basic communication	No
MPI — Services — S7 communication	Yes
MPI — Services — S7 communication, as client	Yes
MPI — Services — S7 communication, as server	Yes
PROFIBUS DP master — Number of connections, max.	32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
PROFIBUS DP master — Transmission rate, max.	12 Mbit/s
PROFIBUS DP master — max. number of DP devices	32
PROFIBUS DP master — Services — PG/OP communication	Yes
PROFIBUS DP master — Services — Routing	Yes
PROFIBUS DP master — Services — Global data communication	No
PROFIBUS DP master — Services — S7 basic communication	No
PROFIBUS DP master — Services — S7 communication	Yes
PROFIBUS DP master — Services — S7 communication, as client	Yes
PROFIBUS DP master — Services — S7 communication, as server	Yes
PROFIBUS DP master — Services — Equidistance	No
PROFIBUS DP master — Services — Isochronous mode	No
PROFIBUS DP master — Services — SYNC/FREEZE	No
PROFIBUS DP master — Services — activation/deactivation of DP devices	No
PROFIBUS DP master — Services — Direct data exchange (slave-to-slave communication)	No
PROFIBUS DP master — Services — DPV1	Yes
PROFIBUS DP master — Address area — Inputs, max.	2 kbyte
PROFIBUS DP master — Address area — Outputs, max.	2 kbyte
PROFIBUS DP master — User data per DP device — user data per DP device, max.	244 byte
PROFIBUS DP master — User data per DP device — Inputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Outputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Slots, max.	244
PROFIBUS DP master — User data per DP device — per slot, max.	128 byte
PROFIBUS DP device — Number of connections	No configuration of CPU as DP slave

2. Interface

Interface type	PROFINET
Isolated	Yes
automatic detection of transmission rate	Yes; Autosensing
Autonegotiation	Yes
Autocrossing	Yes
Change of IP address at runtime, supported	No
Interface types — RJ 45 (Ethernet)	Yes
Interface types — Number of ports	2
Interface types — integrated switch	Yes
Protocols — PROFINET IO Controller	Yes
Protocols — PROFINET IO Device	No
Protocols — PROFINET CBA	No
Protocols — PROFIBUS DP master	No
Protocols — PROFIBUS DP device	No
Protocols — Open IE communication	Yes
Protocols — Web server	No
Protocols — Point-to-point connection	No
Protocols — Media redundancy	Yes
PROFINET IO Controller — Transmission rate, max.	100 Mbit/s
PROFINET IO Controller — Services — PG/OP communication	Yes
PROFINET IO Controller — Services — S7 communication	Yes
PROFINET IO Controller — Services — Isochronous mode	No
PROFINET IO Controller — Services — Shared device	Yes; Single mode only
PROFINET IO Controller — Services — Prioritized startup	No
PROFINET IO Controller — Services — Number of connectable IO Devices, max.	256; In redundant mode via both interfaces
PROFINET IO Controller — Services — Number of connectable IO Devices for RT, max.	256
PROFINET IO Controller — Services — of which in line, max.	256
PROFINET IO Controller — Services — Activation/deactivation of IO Devices	No
PROFINET IO Controller — Services — IO Devices changing during operation (partner ports), supported	No
PROFINET IO Controller — Services — Device replacement without swap medium	Yes
PROFINET IO Controller — Services — Send cycles	250 µs, 500 µs, 1 ms, 2 ms, 4 ms
PROFINET IO Controller — Services — Updating time	250 µs to 512 ms, minimum value depends on the number of configured user data and the configured single or redundant mode
PROFINET IO Controller — Address area — Inputs, max.	8 kbyte
PROFINET IO Controller — Address area — Outputs, max.	8 kbyte
PROFINET IO Controller — Address area — User data consistency, max.	1 024 byte
Open IE communication — Number of connections, max.	94
Open IE communication — Local port numbers used at the system end	0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Open IE communication — Keep-alive function, supported	Yes

3. Interface

Interface type	PROFIBUS DP
Interface types — RS 485	Yes
Interface types — Output current of the interface, max.	150 mA
Protocols — PROFIBUS DP master	Yes
Protocols — PROFIBUS DP device	No
PROFIBUS DP master — Number of connections, max.	32
PROFIBUS DP master — Transmission rate, max.	12 Mbit/s
PROFIBUS DP master — max. number of DP devices	125
PROFIBUS DP master — Services — PG/OP communication	Yes
PROFIBUS DP master — Services — Routing	Yes
PROFIBUS DP master — Services — Global data communication	No
PROFIBUS DP master — Services — S7 basic communication	No
PROFIBUS DP master — Services — S7 communication	Yes
PROFIBUS DP master — Services — S7 communication, as client	Yes
PROFIBUS DP master — Services — S7 communication, as server	Yes
PROFIBUS DP master — Services — Equidistance	No
PROFIBUS DP master — Services — Isochronous mode	No
PROFIBUS DP master — Services — SYNC/FREEZE	No
PROFIBUS DP master — Services — activation/deactivation of DP devices	No
PROFIBUS DP master — Services — Direct data exchange (slave-to-slave communication)	No
PROFIBUS DP master — Services — DPV0	Yes
PROFIBUS DP master — Services — DPV1	Yes
PROFIBUS DP master — Address area — Inputs, max.	8 kbyte
PROFIBUS DP master — Address area — Outputs, max.	8 kbyte
PROFIBUS DP master — User data per DP device — user data per DP device, max.	244 byte
PROFIBUS DP master — User data per DP device — Inputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Outputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Slots, max.	244
PROFIBUS DP master — User data per DP device — per slot, max.	128 byte

4. Interface

Interface type	Pluggable synchronization submodule (FO)
Plug-in interface modules	Synchronization modules 6ES7960-1AA06-0XA0 or 6ES7960-1AB06-0XA0

5. Interface

Interface type	Pluggable synchronization submodule (FO)
Plug-in interface modules	Synchronization modules 6ES7960-1AA06-0XA0 or 6ES7960-1AB06-0XA0

Protocols

Redundancy mode — Media redundancy — Switchover time on line break, typ.	200 ms
Redundancy mode — Media redundancy — Number of stations in the ring, max.	50
SIMATIC communication — S7 routing	Yes
Open IE communication — TCP/IP	Yes; via integrated PROFINET interface and loadable FBs
Open IE communication — TCP/IP — Number of connections, max.	94
Open IE communication — TCP/IP — Data length, max.	32 kbyte
Open IE communication — TCP/IP — several passive connections per port, supported	Yes
Open IE communication — ISO-on-TCP (RFC1006)	Yes; Via integrated PROFINET interface or CP 443-1 and loadable FBs
Open IE communication — ISO-on-TCP (RFC1006) — Number of connections, max.	94
Open IE communication — ISO-on-TCP (RFC1006) — Data length, max.	32 kbyte; 1 452 bytes via CP 443-1 Adv.
Open IE communication — UDP	Yes; via integrated PROFINET interface and loadable FBs
Open IE communication — UDP — Number of connections, max.	94
Open IE communication — UDP — Data length, max.	1 472 byte
Web server — supported	No

Isochronous mode

Equidistance

Communication functions

PG/OP communication	Yes
PG/OP communication — Number of connectable OPs with message processing	95; When using Alarm_S/SQ and Alarm_D/DQ
PG/OP communication — Number of connectable OPs without message processing	95
Data record routing	Yes
Global data communication — supported	No
S7 basic communication — supported	No
S7 communication — supported	Yes
S7 communication — as server	Yes
S7 communication — as client	Yes
S7 communication — User data per job, max.	64 kbyte
S7 communication — User data per job (of which consistent), max.	462 byte; 1 variable
S5 compatible communication — supported	Yes; (via CP max. 10 and FC AG_SEND and FC AG_RECV)
S5 compatible communication — User data per job, max.	8 kbyte
S5 compatible communication — User data per job (of which consistent), max.	240 byte
S5 compatible communication — Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.	64/64
Standard communication (FMS) — supported	Yes; Via CP and loadable FB
Number of connections — overall	96
Number of connections — usable for PG communication — reserved for PG communication	1
Number of connections — usable for PG communication — adjustable for PG communication, max.	0
Number of connections — usable for OP communication — reserved for OP communication	1
Number of connections — usable for OP communication — adjustable for OP communication, max.	0
Number of connections — usable for S7 basic communication — reserved for S7 basic communication	0
Number of connections — usable for S7 basic communication — adjustable for S7 basic communication, max.	0
Number of connections — usable for S7 communication — reserved for S7 communication	0
Number of connections — usable for S7 communication — adjustable for S7 communication, max.	0
Number of connections — usable for routing — reserved for routing	0
Number of connections — usable for routing — adjustable for routing, max.	0

S7 message functions

Number of login stations for message functions, max.	95; Max. 95 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 16 with Alarm, Alarm_8, Alarm_8P, Notify and Notify_8 (e.g. WinCC)
Symbol-related messages	No
SCAN procedure	No
Program alarms	Yes
Process diagnostic messages	Yes
simultaneously active Alarm_S blocks, max.	1 000; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ blocks
Alarm 8-blocks	Yes
Alarm 8-blocks — Number of instances for alarm 8 and S7 communication blocks, max.	10 000
Alarm 8-blocks — preset, max.	1 200
Process control messages	Yes
Number of archives that can log on simultaneously (SFB 37 AR_SEND)	64

Test commissioning functions

Status block	Yes
Single step	Yes
Number of breakpoints	16
Status/control — Status/control variable	Yes; Up to 16 variable tables
Status/control — Variables	Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Status/control — Number of variables, max.	70
Forcing — Forcing	Yes
Forcing — Forcing, variables	Inputs/outputs, bit memories, distributed I/Os
Forcing — Number of variables, max.	512
Diagnostic buffer — present	Yes
Diagnostic buffer — Number of entries, max.	3 200
Diagnostic buffer — Number of entries, max. — can be set	Yes
Diagnostic buffer — Number of entries, max. — preset	120
Service data — Can be read out	Yes

EMC

Emission of radio interference acc. to EN 55 011 — Limit class A, for use in industrial areas	Yes
Emission of radio interference acc. to EN 55 011 — Limit class B, for use in residential areas	No

Configuration

Configuration software — STEP 7	Yes
Programming — Command set	see instruction list
Programming — Nesting levels	7
Programming — Access to consistent data in process image	Yes
Programming — System functions (SFC)	see instruction list
Programming — System function blocks (SFB)	see instruction list
Programming — Programming language — LAD	Yes
Programming — Programming language — FBD	Yes
Programming — Programming language — STL	Yes
Programming — Programming language — SCL	Yes
Programming — Programming language — CFC	Yes
Programming — Programming language — GRAPH	Yes
Programming — Programming language — HiGraph®	Yes
Programming — Number of simultaneously active SFCs — RD_REC	8
Programming — Number of simultaneously active SFCs — WR_REC	8
Programming — Number of simultaneously active SFCs — WR_PARM	8
Programming — Number of simultaneously active SFCs — PARM_MOD	1
Programming — Number of simultaneously active SFCs — WR_DPARM	2
Programming — Number of simultaneously active SFCs — DPNRM_DG	8
Programming — Number of simultaneously active SFCs — RDSYSST	8
Programming — Number of simultaneously active SFCs — DP_TOPOL	1
Programming — Number of simultaneously active SFBs — RDREC	8
Programming — Number of simultaneously active SFBs — WRREC	8
Know-how protection — User program protection/password protection	Yes
Know-how protection — Block encryption	Yes; With S7 block Privacy

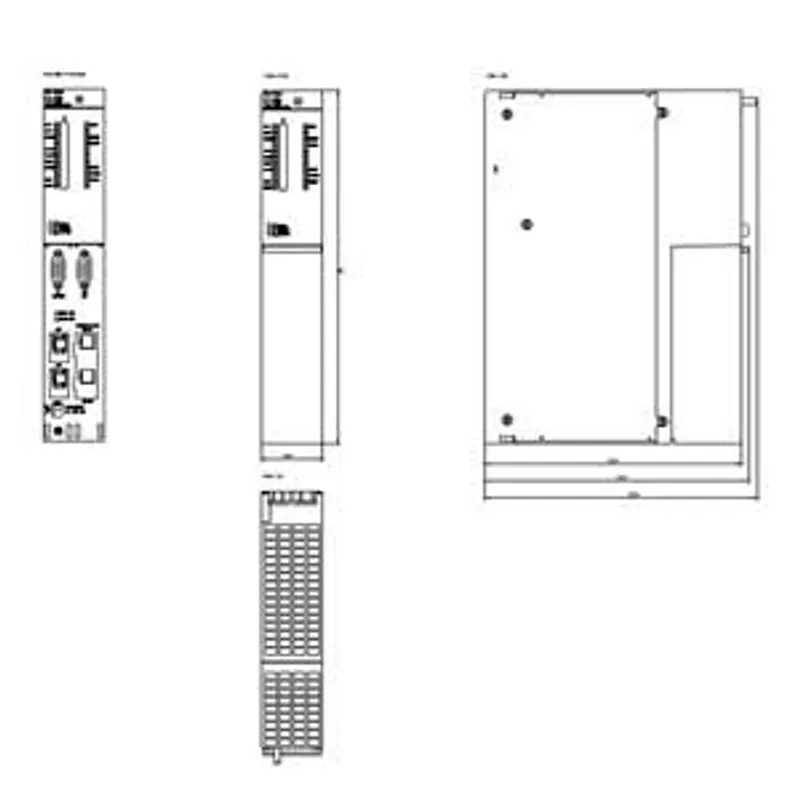

Dimensions

Width	50 mm
Height	290 mm
Depth	219 mm

Weights

Weight, approx.

995 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7416-5HS06-0AB0PDF

6ES7416-5HS06-0AB0: frequently asked questions

When can 6ES7416-5HS06-0AB0 be shipped?

6ES7416-5HS06-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7416-5HS06-0AB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7416-5HS06-0AB0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7416-5HS06-0AB0, subject to availability and destination.
