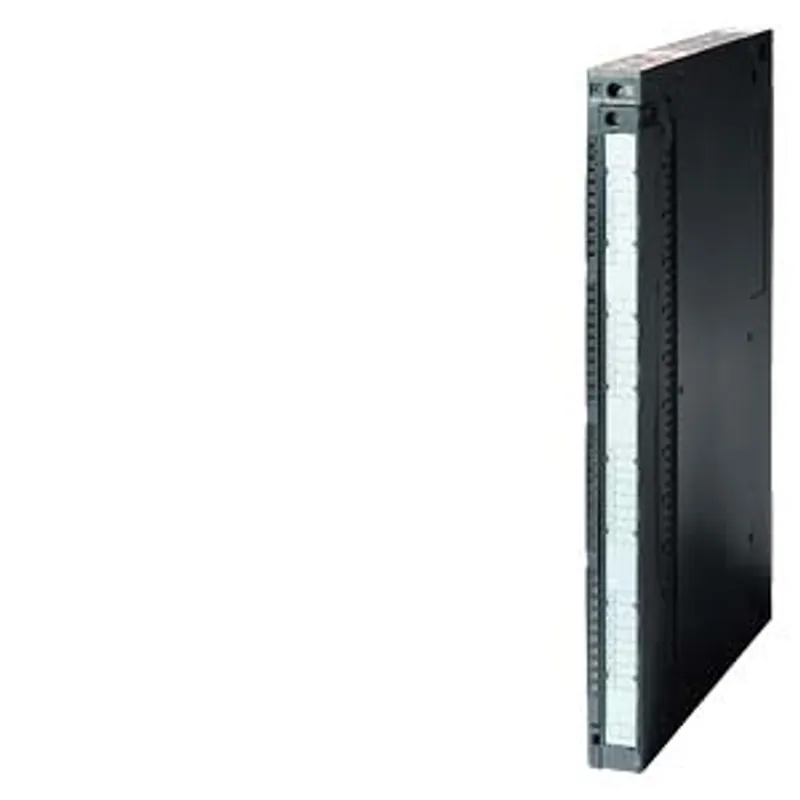

Siemens 6ES7422-1BH11-0AA0

SIMATIC S7-400, digital output SM 422, isolated 16 DO; 24 V DC, 2 A

MPN: 6ES7422-1BH11-0AA0
Category: SM 422 digital output module

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7422-1BH11-0AA0?

SIMATIC S7-400, digital output SM 422, isolated 16 DO; 24 V DC, 2 A

Specifications

Supply voltage

Load voltage L+ — Rated value (DC)	24 V
Load voltage L+ — permissible range, lower limit (DC)	20.4 V
Load voltage L+ — permissible range, upper limit (DC)	28.8 V

Input current

from load voltage L+ (without load), max.	30 mA
from backplane bus 5 V DC, max.	160 mA

Power loss

Power loss, typ.

5 W

Digital outputs

Number of digital outputs	16
Short-circuit protection	Yes; Clocked electronically
Short-circuit protection — Response threshold, typ.	2.8 to 6 A
Limitation of inductive shutdown voltage to	-30 V
Controlling a digital input	Yes; possible
Switching capacity of the outputs — on lamp load, max.	10 W
Load resistance range — lower limit	24 Ω
Load resistance range — upper limit	4 kΩ
Output voltage — for signal "1", min.	L+ (-0.5 V)
Output current — for signal "1" rated value	2 A
Output current — for signal "1" permissible range, min.	5 mA
Output current — for signal "1" permissible range, max.	2.4 A
Output current — for signal "0" residual current, max.	0.5 mA
Output delay with resistive load — "0" to "1", max.	1 ms
Output delay with resistive load — "1" to "0", max.	1 ms
Parallel switching of two outputs — for uprating	No; Not possible
Parallel switching of two outputs — for redundant control of a load	Yes; possible (only outputs of the same group)
Switching frequency — with resistive load, max.	100 Hz
Switching frequency — with inductive load, max.	0.1 Hz
Switching frequency — with inductive load (acc. to IEC 60947-5-1, DC13), max.	0.2 Hz; 0.2 Hz at 1 A; 0.1 Hz at 2 A
Switching frequency — on lamp load, max.	10 Hz
Total current of the outputs (per group) — all mounting positions — up to 40 °C, max.	3 A
Total current of the outputs (per group) — all mounting positions — up to 60 °C, max.	2 A; 2 adjacent outputs each
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Interrupts/diagnostics/status information

Diagnostics function

Potential separation

Potential separation digital outputs — between the channels	Yes
Potential separation digital outputs — between the channels, in groups of	8
Potential separation digital outputs — between the channels and backplane bus	Yes

Isolation

Isolation tested with

500 V DC

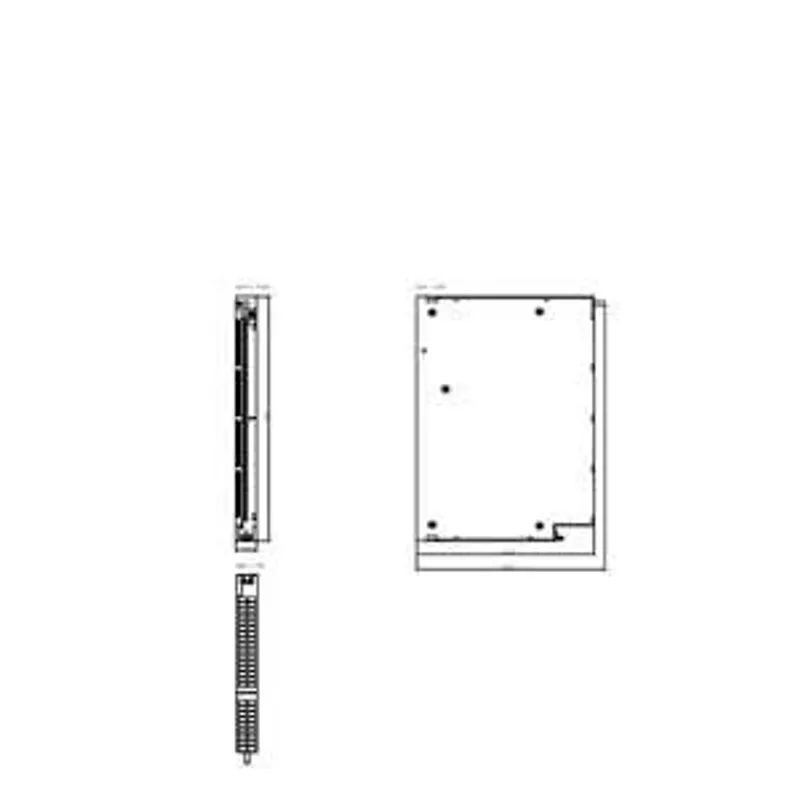

Dimensions

Width	25 mm
Height	290 mm
Depth	210 mm

Weights

Weight, approx.

600 g
