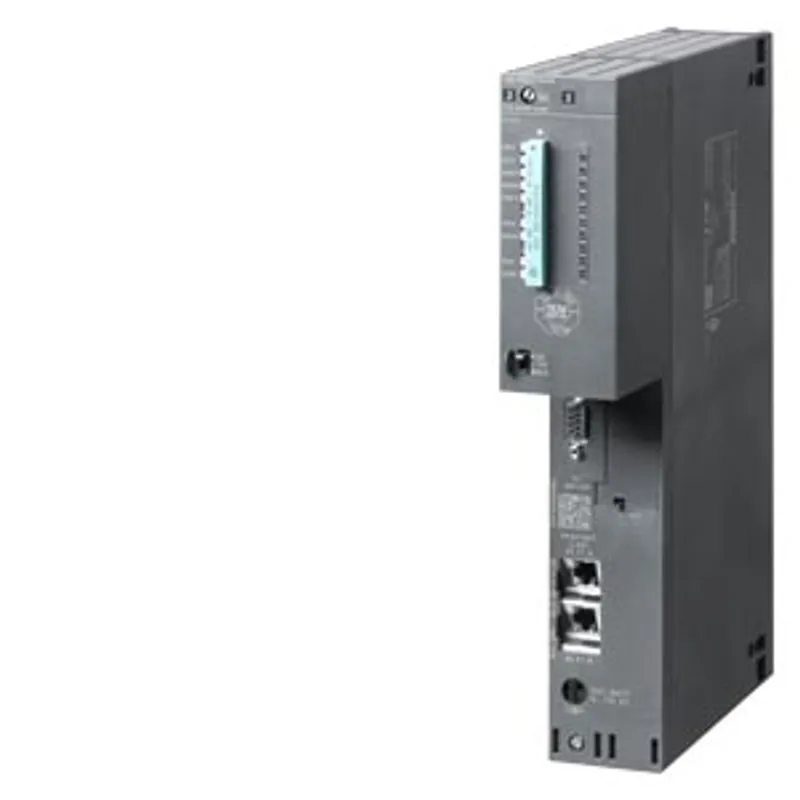

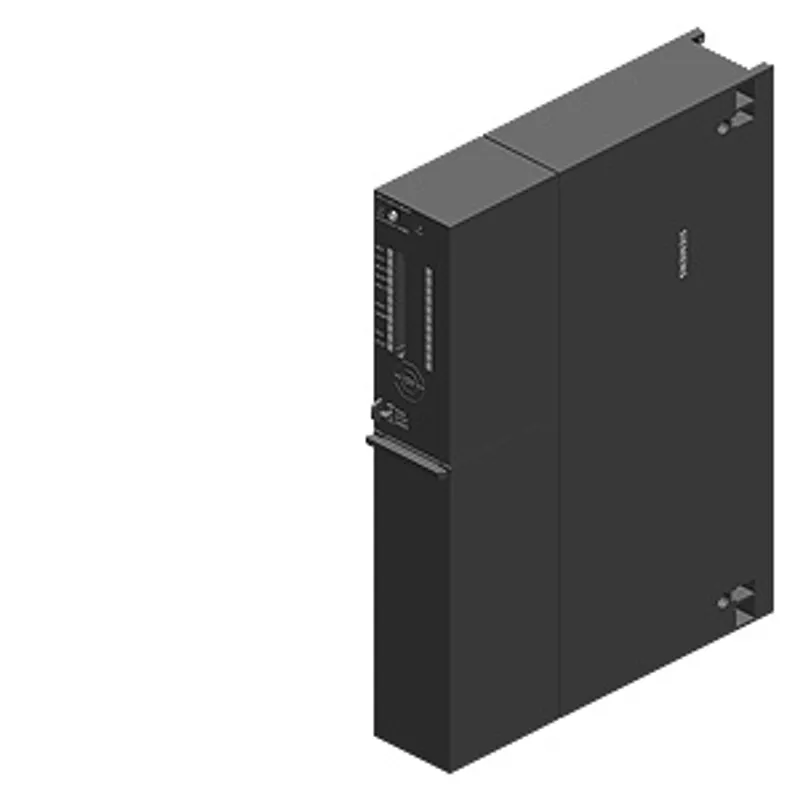

Siemens 6ES7416-3FS07-0AB0

SIMATIC S7-400, CPU416F-3 PN/DP Central processing unit with: Work memory 16 MB, (8 MB code, 8 MB data)

MPN: 6ES7416-3FS07-0AB0
Category: CPU 416F

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7416-3FS07-0AB0?

SIMATIC S7-400, CPU416F-3 PN/DP Central processing unit with: Work memory 16 MB, (8 MB code, 8 MB data), interfaces 1st interface MPI/DP 12 Mbit/s, (X1), 2nd interface Ethernet/PROFINET (X5) 3rd interface IF 964-DP plug-in (IF1)

Specifications

General information

Product type designation	CPU 416F-3 PN/DP
HW functional status	01
Firmware version	V7.0
Product function — Isochronous mode	Yes; Via PROFIBUS DP or PROFINET interface
Engineering with — Programming package	STEP 7 V5.5 or higher with HSP 262

CiR - Configuration in RUN

CiR synchronization time, basic load	100 ms
CiR synchronization time, time per I/O byte	10 µs

Supply voltage

Rated value (DC)

Power supply via system power supply

Input current

from backplane bus 5 V DC, typ.	1.3 A
from backplane bus 5 V DC, max.	1.6 A
from backplane bus 24 V DC, max.	300 mA; 150 mA per DP interface
from interface 5 V DC, max.	90 mA; At each DP interface

Power loss

Power loss, typ.

6.5 W

Storage

Type of memory	RAM
Work memory — Integrated	16 Mbyte
Work memory — integrated (for program)	8 Mbyte
Work memory — integrated (for data)	8 Mbyte
Work memory — expandable	No
Load memory — expandable FEPROM	Yes; with Memory Card (FLASH)
Load memory — expandable FEPROM, max.	64 Mbyte
Load memory — integrated RAM, max.	1 Mbyte
Load memory — expandable RAM	Yes; with Memory Card (RAM)
Load memory — expandable RAM, max.	64 Mbyte
Backup — present	Yes
Backup — with battery	Yes; all data
Backup — without battery	No

Battery

Backup battery — Backup current, typ.	180 µA; up to 40 °C
Backup battery — Backup current, max.	850 µA
Backup battery — Backup time, max.	Dealt with in the module data manual with the secondary conditions and the factors of influence
Backup battery — Feeding of external backup voltage to CPU	5 V DC to 15 V DC

CPU processing times

for bit operations, typ.	12.5 ns
for word operations, typ.	12.5 ns
for fixed point arithmetic, typ.	12.5 ns
for floating point arithmetic, typ.	25 ns

CPU-blocks

DB — Number, max.	10 000; Number range: 1 to 16000
DB — Size, max.	64 kbyte
FB — Number, max.	5 000; Number range: 0 to 7999
FB — Size, max.	64 kbyte
FC — Number, max.	5 000; Number range: 0 to 7999
FC — Size, max.	64 kbyte
OB — Number, max.	see instruction list
OB — Size, max.	64 kbyte
OB — Number of free cycle OBs	1; OB 1
OB — Number of time alarm OBs	8; OB 10-17
OB — Number of delay alarm OBs	4; OB 20-23
OB — Number of cyclic interrupt OBs	9; OB 30-38 (shortest cycle that can be set = 500 µs)
OB — Number of process alarm OBs	8; OB 40-47
OB — Number of DPV1 alarm OBs	3; OB 55-57
OB — Number of isochronous mode OBs	4; OB 61-64
OB — Number of multicomputing OBs	1; OB 60
OB — Number of background OBs	1; OB 90
OB — Number of startup OBs	2; OB 100, 102
OB — Number of asynchronous error OBs	9; OB 80-88
OB — Number of synchronous error OBs	2; OB 121, 122
Nesting depth — per priority class	24
Nesting depth — additional within an error OB	2

Counters, timers and their retentivity

S7 counter — Number	2 048
S7 counter — Retentivity — can be set	Yes
S7 counter — Retentivity — preset	Z 0 to Z 7
S7 counter — Counting range — lower limit	0
S7 counter — Counting range — upper limit	999
IEC counter — present	Yes
IEC counter — Type	SFB
IEC counter — Number	Unlimited (limited only by RAM capacity)
S7 timer — Number	2 048
S7 timer — Retentivity — can be set	Yes
S7 timer — Retentivity — preset	No times retentive
S7 timer — Time range — lower limit	10 ms
S7 timer — Time range — upper limit	9 990 s
IEC timer — present	Yes
IEC timer — Type	SFB
IEC timer — Number	Unlimited (limited only by RAM capacity)

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.	Total working and load memory (with backup battery)
Flag — Size, max.	16 kbyte; Size of bit memory address area
Flag — Retentivity available	Yes
Flag — Retentivity preset	MB 0 to MB 15
Flag — Number of clock memories	8; in 1 memory byte
Local data — adjustable, max.	32 kbyte
Local data — preset	16 kbyte

Address area

I/O address area — Inputs	16 kbyte
I/O address area — Outputs	16 kbyte
Process image — Inputs, adjustable	16 kbyte
Process image — Outputs, adjustable	16 kbyte
Process image — Inputs, default	512 byte
Process image — Outputs, default	512 byte
Process image — consistent data, max.	244 byte
Process image — Access to consistent data in process image	Yes
Subprocess images — Number of subprocess images, max.	15
Digital channels — Inputs	131 072
Digital channels — Inputs — of which central	131 072
Digital channels — Outputs	131 072
Digital channels — Outputs — of which central	131 072
Analog channels — Inputs	8 192
Analog channels — Inputs — of which central	8 192
Analog channels — Outputs	8 192
Analog channels — Outputs — of which central	8 192

Hardware configuration

Number of expansion units, max.	21
connectable OPs	95
Multicomputing	Yes; 4 CPUs max. (with UR1 or UR2)
Interface modules — Number of connectable IMs (total), max.	6
Interface modules — Number of connectable IM 460s, max.	6
Interface modules — Number of connectable IM 463s, max.	4; IM 463-2
Number of DP masters — Integrated	1
Number of DP masters — via CP	10; CP 443-5 Extended
Number of DP masters — via IM 467	4
Number of DP masters — Mixed mode IM + CP permitted	No; IM 467 cannot be used jointly with CP 443-5 Ext. or CP 443-1 in PROFINET IO mode
Number of DP masters — via interface module	1; IF 964-DP
Number of DP masters — Number of pluggable S5 modules (via adapter capsule in central device), max.	6
Number of IO Controllers — Integrated	1
Number of IO Controllers — Via CP	4; Max. 4 in the central controller; no mixed operation of different CP 443-1 types in PROFINET IO mode
Number of operable FMs and CPs (recommended) — FM	Limited by number of slots or number of connections
Number of operable FMs and CPs (recommended) — CP, PtP	CP 440: Limited by number of slots; CP 441: Limited by number of slots and number of connections
Number of operable FMs and CPs (recommended) — PROFIBUS and Ethernet CPs	14; In total max. 10 CPs as DP master and PROFINET controller, of which up to 10 IMs or CPs as DP master and up to 4 CPs as PROFINET controller
Slots — required slots	2

Time of day

Clock — Hardware clock (real-time)	Yes
Clock — retentive and synchronizable	Yes
Clock — Resolution	1 ms
Clock — Deviation per day (buffered), max.	1.7 s; Power off
Clock — Deviation per day (unbuffered), max.	8.6 s; For power On
Operating hours counter — Number	16
Operating hours counter — Number/Number range	0 to 15
Operating hours counter — Range of values	SFCs 2, 3 and 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours
Operating hours counter — Granularity	1 h
Operating hours counter — retentive	Yes
Clock synchronization — supported	Yes
Clock synchronization — to MPI, master	Yes
Clock synchronization — on MPI, device	Yes
Clock synchronization — to DP, master	Yes
Clock synchronization — on DP, device	Yes
Clock synchronization — in AS, master	Yes
Clock synchronization — in AS, device	Yes
Clock synchronization — on Ethernet via NTP	Yes; As client
Clock synchronization — to IF 964 DP	Yes
Time difference in system when synchronizing via — Ethernet, max.	10 ms
Time difference in system when synchronizing via — MPI, max.	200 ms

Interfaces

Interfaces/bus type	1 x MPI/PROFIBUS DP, 1 x PROFINET (2 ports), 1 x PROFIBUS DP (optionally pluggable)
Number of RS 485 interfaces	1; Combined MPI / PROFIBUS DP
Number of other interfaces	1; PROFIBUS DP with IF 964-DP (plug-in option; MLFB: 6ES7964-2AA04-0AB0)

1. Interface

Interface type	MPI/PROFIBUS DP
Isolated	Yes
Interface types — RS 485	Yes
Interface types — Output current of the interface, max.	150 mA
Protocols — MPI	Yes
Protocols — PROFIBUS DP master	Yes
Protocols — PROFIBUS DP device	Yes
MPI — Number of connections	44; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
MPI — Transmission rate, max.	12 Mbit/s
MPI — Services — PG/OP communication	Yes
MPI — Services — Routing	Yes
MPI — Services — Global data communication	Yes
MPI — Services — S7 basic communication	Yes
MPI — Services — S7 communication	Yes
MPI — Services — S7 communication, as client	Yes
MPI — Services — S7 communication, as server	Yes
PROFIBUS DP master — Number of connections, max.	32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
PROFIBUS DP master — Transmission rate, max.	12 Mbit/s
PROFIBUS DP master — max. number of DP devices	32
PROFIBUS DP master — Services — PG/OP communication	Yes
PROFIBUS DP master — Services — Routing	Yes; S7 routing
PROFIBUS DP master — Services — Global data communication	No
PROFIBUS DP master — Services — S7 basic communication	Yes
PROFIBUS DP master — Services — S7 communication	Yes
PROFIBUS DP master — Services — S7 communication, as client	Yes
PROFIBUS DP master — Services — S7 communication, as server	Yes
PROFIBUS DP master — Services — Equidistance	Yes
PROFIBUS DP master — Services — Isochronous mode	Yes
PROFIBUS DP master — Services — SYNC/FREEZE	Yes
PROFIBUS DP master — Services — activation/deactivation of DP devices	Yes
PROFIBUS DP master — Services — Direct data exchange (slave-to-slave communication)	Yes
PROFIBUS DP master — Services — DPV1	Yes
PROFIBUS DP master — Address area — Inputs, max.	2 kbyte
PROFIBUS DP master — Address area — Outputs, max.	2 kbyte
PROFIBUS DP master — User data per DP device — user data per DP device, max.	244 byte
PROFIBUS DP master — User data per DP device — Inputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Outputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Slots, max.	244
PROFIBUS DP master — User data per DP device — per slot, max.	128 byte
PROFIBUS DP device — Number of connections	32
PROFIBUS DP device — GSD file	http://support.automation.siemens.com/WW/view/en/113652
PROFIBUS DP device — Transmission rate, max.	12 Mbit/s
PROFIBUS DP device — automatic baud rate search	No
PROFIBUS DP device — Address area, max.	32; Virtual slots
PROFIBUS DP device — User data per address area, max.	32 byte
PROFIBUS DP device — User data per address area, max. — of which consistent, max.	32 byte
PROFIBUS DP device — Services — PG/OP communication	Yes; with interface active
PROFIBUS DP device — Services — Routing	Yes; with interface active
PROFIBUS DP device — Services — Global data communication	No
PROFIBUS DP device — Services — S7 basic communication	No
PROFIBUS DP device — Services — S7 communication	Yes
PROFIBUS DP device — Services — S7 communication, as client	Yes
PROFIBUS DP device — Services — S7 communication, as server	Yes
PROFIBUS DP device — Services — Direct data exchange (slave-to-slave communication)	No
PROFIBUS DP device — Services — DPV1	No
PROFIBUS DP device — Transfer memory — Inputs	244 byte
PROFIBUS DP device — Transfer memory — Outputs	244 byte

2. Interface

Interface type	PROFINET
Isolated	Yes
automatic detection of transmission rate	Yes; Autosensing
Autonegotiation	Yes
Autocrossing	Yes
Change of IP address at runtime, supported	Yes; Assignment by higher-level IO-Controller or by the user program with SFB104 "IP_CONF"
Interface types — RJ 45 (Ethernet)	Yes
Interface types — Number of ports	2
Interface types — integrated switch	Yes
Protocols — PROFINET IO Controller	Yes
Protocols — PROFINET IO device	Yes
Protocols — PROFINET CBA	Yes
Protocols — PROFIBUS DP master	No
Protocols — PROFIBUS DP device	No
Protocols — Open IE communication	Yes
Protocols — Web server	Yes
Protocols — Point-to-point connection	No
Protocols — Media redundancy	Yes
PROFINET IO Controller — Transmission rate, max.	100 Mbit/s
PROFINET IO Controller — Services — PG/OP communication	Yes
PROFINET IO Controller — Services — S7 communication	Yes
PROFINET IO Controller — Services — Isochronous mode	Yes; Only with IRT and the High Performance option
PROFINET IO Controller — Services — Shared device	Yes
PROFINET IO Controller — Services — Prioritized startup	Yes
PROFINET IO Controller — Services — Number of IO devices with prioritized startup, max.	32
PROFINET IO Controller — Services — Number of connectable IO Devices, max.	256
PROFINET IO Controller — Services — Of which IO devices with IRT, max.	64
PROFINET IO Controller — Services — of which in line, max.	64
PROFINET IO Controller — Services — Number of IO Devices with IRT and the option "high flexibility"	256
PROFINET IO Controller — Services — of which in line, max.	61
PROFINET IO Controller — Services — Number of connectable IO Devices for RT, max.	256
PROFINET IO Controller — Services — of which in line, max.	256
PROFINET IO Controller — Services — Activation/deactivation of IO Devices	Yes
PROFINET IO Controller — Services — Number of IO Devices that can be simultaneously activated/deactivated, max.	8
PROFINET IO Controller — Services — IO Devices changing during operation (partner ports), supported	Yes
PROFINET IO Controller — Services — Number of IO Devices per tool, max.	8; 8 parallel calls of the SFC 12 "D_ACT_DP" possible per line. Max. 32 IO Devices changing during operation (partner ports) are supported
PROFINET IO Controller — Services — Device replacement without swap medium	Yes
PROFINET IO Controller — Services — Send cycles	250 μs, 500 μs, 1 ms, 2 ms, 4 ms additionally with IRT with high performance: 250 µs to 4 ms in 125 µs frame
PROFINET IO Controller — Services — Updating time	250 µs to 512 ms; minimum value depends on preset communication share for PROFINET IO, on the number of IO Devices and on the amount of configured user data, see PROFINET system description
PROFINET IO Controller — Address area — Inputs, max.	8 kbyte
PROFINET IO Controller — Address area — Outputs, max.	8 kbyte
PROFINET IO Controller — Address area — User data consistency, max.	1 024 byte
PROFINET IO Device — Services — PG/OP communication	Yes
PROFINET IO Device — Services — S7 communication	Yes
PROFINET IO Device — Services — Isochronous mode	No
PROFINET IO Device — Services — IRT	Yes
PROFINET IO Device — Services — Prioritized startup	Yes
PROFINET IO Device — Services — Shared device	Yes
PROFINET IO Device — Services — Number of IO Controllers with shared device, max.	2
PROFINET IO Device — Transfer memory — Inputs, max.	1 440 byte; Per IO Controller with shared device
PROFINET IO Device — Transfer memory — Outputs, max.	1 440 byte; Per IO Controller with shared device
PROFINET IO Device — Submodules — Number, max.	64
PROFINET IO Device — Submodules — User data per submodule, max.	1 024 byte
PROFINET CBA — acyclic transmission	Yes
PROFINET CBA — cyclic transmission	Yes
Open IE communication — Number of connections, max.	94
Open IE communication — Local port numbers used at the system end	0, 20, 21, 25, 80, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Open IE communication — Keep-alive function, supported	Yes

3. Interface

Interface type	Pluggable interface module (IF)
Plug-in interface modules	IF 964-DP (MLFB: 6ES7964-2AA04-0AB0)
Isolated	Yes
automatic detection of transmission rate	No
Interface types — RS 485	Yes
Interface types — Output current of the interface, max.	150 mA
Protocols — MPI	No
Protocols — PROFIBUS DP master	Yes
Protocols — PROFIBUS DP device	Yes
PROFIBUS DP master — Number of connections, max.	32
PROFIBUS DP master — Transmission rate, max.	12 Mbit/s
PROFIBUS DP master — max. number of DP devices	125
PROFIBUS DP master — Services — PG/OP communication	Yes
PROFIBUS DP master — Services — Routing	Yes; S7 routing
PROFIBUS DP master — Services — Global data communication	No
PROFIBUS DP master — Services — S7 basic communication	Yes
PROFIBUS DP master — Services — S7 communication	Yes
PROFIBUS DP master — Services — S7 communication, as client	Yes
PROFIBUS DP master — Services — S7 communication, as server	Yes
PROFIBUS DP master — Services — Equidistance	Yes
PROFIBUS DP master — Services — Isochronous mode	Yes
PROFIBUS DP master — Services — SYNC/FREEZE	Yes
PROFIBUS DP master — Services — activation/deactivation of DP devices	Yes
PROFIBUS DP master — Services — Direct data exchange (slave-to-slave communication)	Yes
PROFIBUS DP master — Services — DPV0	Yes
PROFIBUS DP master — Services — DPV1	Yes
PROFIBUS DP master — Address area — Inputs, max.	8 kbyte
PROFIBUS DP master — Address area — Outputs, max.	8 kbyte
PROFIBUS DP master — User data per DP device — user data per DP device, max.	244 byte
PROFIBUS DP master — User data per DP device — Inputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Outputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Slots, max.	244
PROFIBUS DP master — User data per DP device — per slot, max.	128 byte
PROFIBUS DP device — Number of connections	32
PROFIBUS DP device — GSD file	http://support.automation.siemens.com/WW/view/en/113652
PROFIBUS DP device — Transmission rate, max.	12 Mbit/s
PROFIBUS DP device — automatic baud rate search	No
PROFIBUS DP device — Address area, max.	32; Virtual slots
PROFIBUS DP device — User data per address area, max.	32 byte
PROFIBUS DP device — User data per address area, max. — of which consistent, max.	32 byte
PROFIBUS DP device — Services — PG/OP communication	Yes
PROFIBUS DP device — Services — Routing	Yes; with interface active
PROFIBUS DP device — Services — Global data communication	No
PROFIBUS DP device — Services — S7 basic communication	No
PROFIBUS DP device — Services — S7 communication	Yes
PROFIBUS DP device — Services — S7 communication, as client	Yes
PROFIBUS DP device — Services — S7 communication, as server	Yes
PROFIBUS DP device — Services — Direct data exchange (slave-to-slave communication)	No
PROFIBUS DP device — Services — DPV1	No
PROFIBUS DP device — Transfer memory — Inputs	244 byte
PROFIBUS DP device — Transfer memory — Outputs	244 byte

Protocols

Redundancy mode — Media redundancy — Switchover time on line break, typ.	200 ms
Redundancy mode — Media redundancy — Number of stations in the ring, max.	50
SIMATIC communication — S7 routing	Yes
Open IE communication — TCP/IP	Yes; via integrated PROFINET interface and loadable FBs
Open IE communication — TCP/IP — Number of connections, max.	94
Open IE communication — TCP/IP — Data length, max.	32 kbyte
Open IE communication — TCP/IP — several passive connections per port, supported	Yes
Open IE communication — ISO-on-TCP (RFC1006)	Yes; Via integrated PROFINET interface or CP 443-1 and loadable FBs
Open IE communication — ISO-on-TCP (RFC1006) — Number of connections, max.	94
Open IE communication — ISO-on-TCP (RFC1006) — Data length, max.	32 kbyte; 1 452 bytes via CP 443-1 Adv.
Open IE communication — UDP	Yes; via integrated PROFINET interface and loadable FBs
Open IE communication — UDP — Number of connections, max.	94
Open IE communication — UDP — Data length, max.	1 472 byte
Web server — supported	Yes
Web server — User-defined websites	Yes
Web server — Number of HTTP clients	5

Isochronous mode

Equidistance	Yes
Number of DP masters with isochronous mode	2
User data per isochronous slave, max.	244 byte
shortest clock pulse	1 ms; 0.5 ms without use of SFC 126, 127
max. cycle	32 ms

Communication functions

PG/OP communication	Yes
PG/OP communication — Number of connectable OPs with message processing	95; When using Alarm_S/SQ and Alarm_D/DQ
PG/OP communication — Number of connectable OPs without message processing	95
Data record routing	Yes
Global data communication — supported	Yes
Global data communication — Number of GD loops, max.	16
Global data communication — Number of GD packets, transmitter, max.	16
Global data communication — Number of GD packets, receiver, max.	32
Global data communication — Size of GD packets, max.	54 byte
Global data communication — Size of GD packet (of which consistent), max.	1 variable
S7 basic communication — supported	Yes
S7 basic communication — User data per job, max.	76 byte
S7 basic communication — User data per job (of which consistent), max.	1 variable
S7 communication — supported	Yes
S7 communication — as server	Yes
S7 communication — as client	Yes
S7 communication — User data per job, max.	64 kbyte
S7 communication — User data per job (of which consistent), max.	462 byte; 1 variable
S5 compatible communication — supported	Yes; Via FC AG_SEND and AG_RECV, max. via 10 CP 443-1 or 443-5
S5 compatible communication — User data per job, max.	8 kbyte
S5 compatible communication — User data per job (of which consistent), max.	240 byte
S5 compatible communication — Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.	64/64
Standard communication (FMS) — supported	Yes; Via CP and loadable FB
PROFINET CBA (at set setpoint communication load) — Setpoint for the CPU communication load	20 %
PROFINET CBA (at set setpoint communication load) — Number of remote interconnection partners	32
PROFINET CBA (at set setpoint communication load) — number of master/device functions	150
PROFINET CBA (at set setpoint communication load) — total of all master/device connections	6 000
PROFINET CBA (at set setpoint communication load) — data length of all incoming master/device connections, max.	65 000 byte
PROFINET CBA (at set setpoint communication load) — data length of all outgoing master/device connections, max.	65 000 byte
PROFINET CBA (at set setpoint communication load) — Number of device-internal and PROFIBUS interconnections	1 000
PROFINET CBA (at set setpoint communication load) — Data length of device-internal und PROFIBUS interconnections, max.	16 000 byte
PROFINET CBA (at set setpoint communication load) — Data length per connection, max.	2 000 byte
PROFINET CBA (at set setpoint communication load) — Remote interconnections with cyclic transmission — Transmission frequency: Transmission interval, min.	1 ms; Depending on preset communication load, number of interconnections and data length used
PROFINET CBA (at set setpoint communication load) — Remote interconnections with cyclic transmission — Number of incoming interconnections	300
PROFINET CBA (at set setpoint communication load) — Remote interconnections with cyclic transmission — Number of outgoing interconnections	300
PROFINET CBA (at set setpoint communication load) — Remote interconnections with cyclic transmission — Data length of all incoming interconnections, max.	4 800 byte
PROFINET CBA (at set setpoint communication load) — Remote interconnections with cyclic transmission — Data length of all outgoing interconnections, max.	4 800 byte
PROFINET CBA (at set setpoint communication load) — Remote interconnections with cyclic transmission — Data length per connection, max.	450 byte
PROFINET CBA (at set setpoint communication load) — HMI variables via PROFINET (acyclic) — Number of stations that can log on for HMI variables (PN OPC/iMap)	2x PN OPC/1x iMap
PROFINET CBA (at set setpoint communication load) — HMI variables via PROFINET (acyclic) — HMI variable updating	500 ms
PROFINET CBA (at set setpoint communication load) — HMI variables via PROFINET (acyclic) — Number of HMI variables	1 500
PROFINET CBA (at set setpoint communication load) — HMI variables via PROFINET (acyclic) — Data length of all HMI variables, max.	48 000 byte
PROFINET CBA (at set setpoint communication load) — PROFIBUS proxy functionality — supported	Yes; 32 PROFIBUS slaves max. connectable
PROFINET CBA (at set setpoint communication load) — PROFIBUS proxy functionality — Data length per connection, max.	240 byte; Slave-dependent
Number of connections — overall	96
Number of connections — usable for PG communication	95
Number of connections — usable for PG communication — reserved for PG communication	1
Number of connections — usable for PG communication — adjustable for PG communication, max.	0
Number of connections — usable for OP communication	95
Number of connections — usable for OP communication — reserved for OP communication	1
Number of connections — usable for OP communication — adjustable for OP communication, max.	0
Number of connections — usable for S7 basic communication	94
Number of connections — usable for S7 basic communication — reserved for S7 basic communication	0
Number of connections — usable for S7 basic communication — adjustable for S7 basic communication, max.	0
Number of connections — usable for S7 communication	94
Number of connections — usable for S7 communication — reserved for S7 communication	0
Number of connections — usable for S7 communication — adjustable for S7 communication, max.	0
Number of connections — usable for routing	47
Number of connections — usable for routing — reserved for routing	0
Number of connections — usable for routing — adjustable for routing, max.	0

S7 message functions

Number of login stations for message functions, max.	95; Max. 95 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 16 with Alarm, Alarm_8, Alarm_8P, Notify and Notify_8 (e.g. WinCC)
Symbol-related messages	Yes
SCAN procedure	Yes
Program alarms	Yes
Process diagnostic messages	Yes
simultaneously active Alarm_S blocks, max.	1 000; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ blocks
Alarm 8-blocks	Yes
Alarm 8-blocks — Number of instances for alarm 8 and S7 communication blocks, max.	4 000
Alarm 8-blocks — preset, max.	600
Process control messages	Yes
Number of archives that can log on simultaneously (SFB 37 AR_SEND)	32
Number of messages — overall, max.	1 024
Number of messages — in 100 ms grid, max.	128
Number of messages — in 500 ms grid, max.	512
Number of messages — in 1000 ms grid, max.	1 024
Number of additional values — with 100 ms grid, max.	1
Number of additional values — with 500, 1000 ms grid, max.	10

Test commissioning functions

Status block	Yes; Up to 16 simultaneously
Single step	Yes
Number of breakpoints	16
Status/control — Status/control variable	Yes; Up to 16 variable tables
Status/control — Variables	Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Status/control — Number of variables, max.	70; Status/control
Forcing — Forcing	Yes
Forcing — Forcing, variables	Inputs/outputs, bit memories, distributed I/Os
Forcing — Number of variables, max.	512
Diagnostic buffer — present	Yes
Diagnostic buffer — Number of entries, max.	3 200
Diagnostic buffer — Number of entries, max. — can be set	Yes
Diagnostic buffer — Number of entries, max. — preset	120
Service data — Can be read out	Yes

Standards, approvals, certificates

CE mark	Yes
CSA approval	Yes
UL approval	Yes
cULus	Yes
FM approval	Yes
RCM (formerly C-TICK)	Yes
KC approval	Yes
EAC (formerly Gost-R)	Yes
Use in hazardous areas — ATEX	ATEX II 3G Ex nA IIC T4 Gc

Ambient conditions

Ambient temperature during operation — min.	0 °C
Ambient temperature during operation — max.	60 °C

Configuration

Configuration software — STEP 7	Yes
Programming — Command set	see instruction list
Programming — Nesting levels	7
Programming — Access to consistent data in process image	Yes
Programming — System functions (SFC)	see instruction list
Programming — System function blocks (SFB)	see instruction list
Programming — Programming language — LAD	Yes
Programming — Programming language — FBD	Yes
Programming — Programming language — STL	Yes
Programming — Programming language — SCL	Yes
Programming — Programming language — CFC	Yes
Programming — Programming language — GRAPH	Yes
Programming — Programming language — HiGraph®	Yes
Programming — Number of simultaneously active SFCs — DPSYC_FR	2; SFC 11; per interface
Programming — Number of simultaneously active SFCs — D_ACT_DP	8; SFC 12; per interface
Programming — Number of simultaneously active SFCs — RD_REC	8; SFC 59; per interface
Programming — Number of simultaneously active SFCs — WR_REC	8; SFC 58; per interface
Programming — Number of simultaneously active SFCs — WR_PARM	8; SFC 55; per interface
Programming — Number of simultaneously active SFCs — PARM_MOD	1; SFC 57; per interface
Programming — Number of simultaneously active SFCs — WR_DPARM	2; SFC 56; per interface
Programming — Number of simultaneously active SFCs — DPNRM_DG	8; SFC 13; per interface
Programming — Number of simultaneously active SFCs — RDSYSST	8; SFC 51
Programming — Number of simultaneously active SFCs — DP_TOPOL	1; SFC 103; per interface
Programming — Number of simultaneously active SFBs — RDREC	8; SFB 52; per interface, but not more than 32 across all external interfaces
Programming — Number of simultaneously active SFBs — WRREC	8; SFB 53; per interface, but not more than 32 across all external interfaces
Know-how protection — User program protection/password protection	Yes
Know-how protection — Block encryption	Yes; With S7 block Privacy

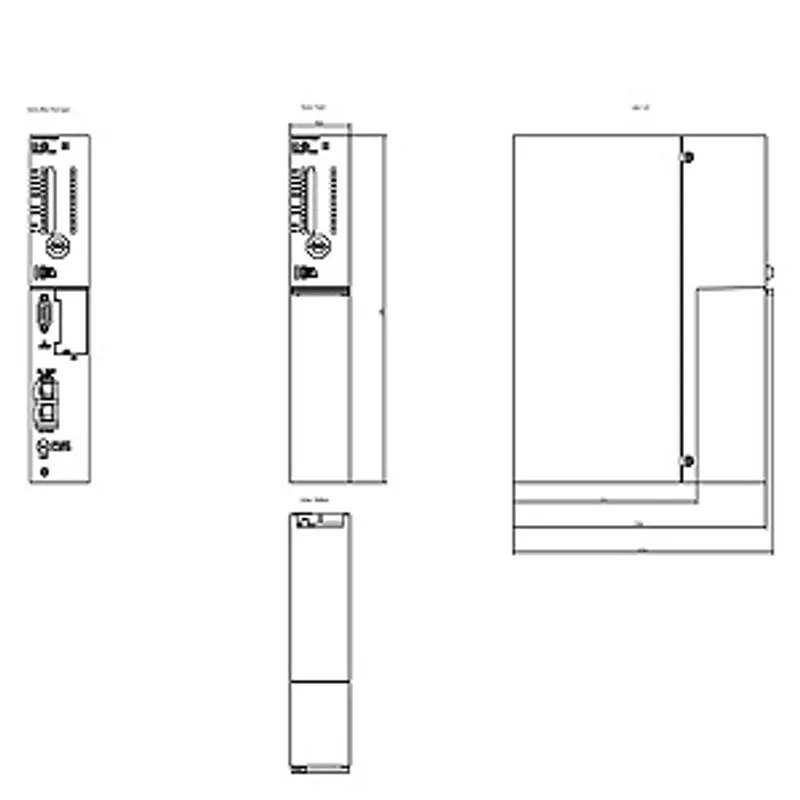

Dimensions

Width	50 mm
Height	290 mm
Depth	219 mm

Weights

Weight, approx.

900 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7416-3FS07-0AB0PDF

6ES7416-3FS07-0AB0: frequently asked questions

When can 6ES7416-3FS07-0AB0 be shipped?

6ES7416-3FS07-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7416-3FS07-0AB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7416-3FS07-0AB0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7416-3FS07-0AB0, subject to availability and destination.
