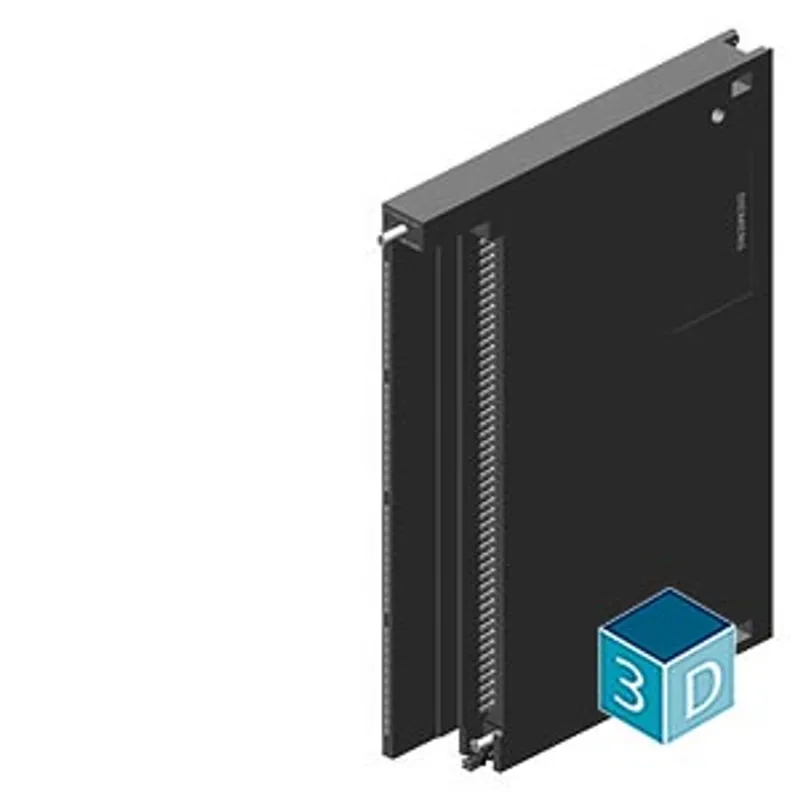

Siemens 6ES7421-7DH00-0AB0

SIMATIC S7-400, digital input SM 421, isolated 16 DI; UC 24 - 60 V, alarm, diagnostics

MPN
6ES7421-7DH00-0AB0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7421-7DH00-0AB0?

SIMATIC S7-400, digital input SM 421, isolated 16 DI; UC 24 - 60 V, alarm, diagnostics

Specifications

Input current

from backplane bus 5 V DC, max.150 mA

Power loss

Power loss, typ.8 W; 3.5 W (24 V DC); 6.5 W (48 V DC); 8.0 W (60 V DC)

Digital inputs

Number of digital inputs16
Input characteristic according to IEC 61131similar to IEC 61131-2
Number of simultaneously controllable inputs — Number of simultaneously controllable inputs16
Input voltage — Type of input voltageAC/DC
Input voltage — Rated value (UC)24 V; 24 V UC to 60 V UC (47 ... 63 Hz)
Input voltage — for signal "0"-6 to +6 V DC/ 0 to 5 V AC
Input voltage — for signal "1"15 to 72 V DC; -15 to -72 V DC; 15 to 60 V AC
Input current — for signal "1", typ.4 mA; 4 to 10 mA
Input delay (for rated value of input voltage) — for standard inputs — ParameterizableYes
Input delay (for rated value of input voltage) — for standard inputs — Rated value0.5 ms; 0.5 / 3 / 10 / 20 ms
Encoder connection — Fixed current limitation for wire-break monitoring, min.18 kΩ; 18 kohms: Rated voltage 24 V (15 to 35 V); 39 kohms: Rated voltage 48 V (30 to 60 V)
Encoder connection — Fixed current limitation for wire-break monitoring, max.56 kΩ; Rated voltage 60 V (50 to 72 V)
Cable length — shielded, max.1 000 m
Cable length — unshielded, max.600 m; 600 m: 3, 10, 20 ms; 100 m: 0,5 ms

Encoder

Connectable encoders — 2-wire sensorYes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.0.5 mA; 0.5 to 2 mA

Interrupts/diagnostics/status information

Diagnostics functionYes; Parameterizable
Alarms — Diagnostic alarmYes; Parameterizable
Alarms — Hardware interruptYes; Parameterizable
Diagnoses — Diagnostic information readableYes; possible
Diagnoses — Wire breakYes; I> 0.7 mA
Diagnostics indication LED — Status indicator digital input (green)Yes
Diagnostics indication LED — Channel fault indicator F (red)No

Potential separation

Potential separation digital inputs — between the channelsYes
Potential separation digital inputs — between the channels, in groups of1
Potential separation digital inputs — between the channels and backplane busYes

Isolation

Isolation tested with1 500 V AC

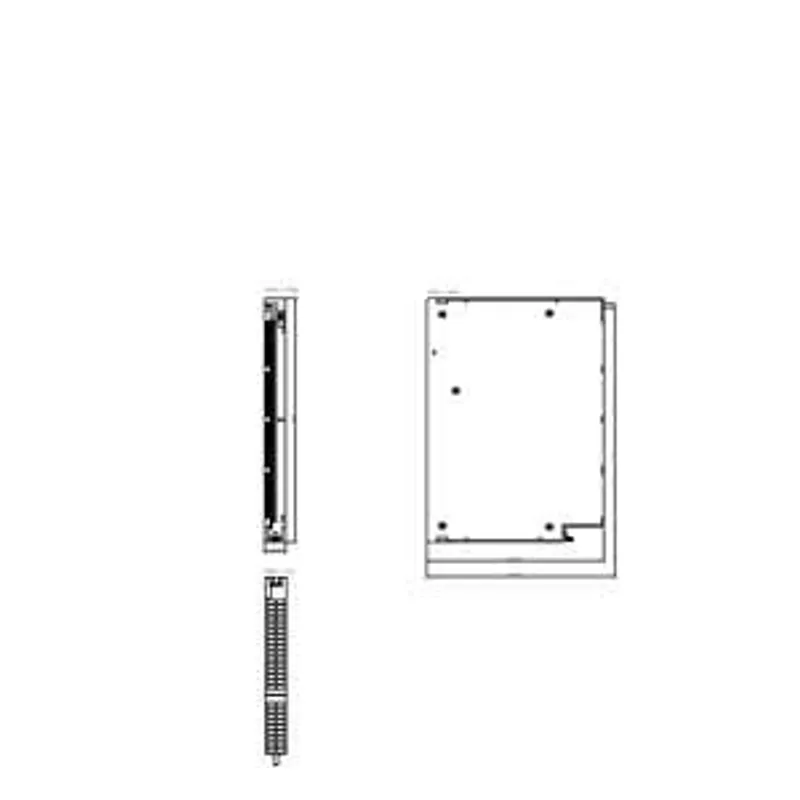

Dimensions

Width25 mm
Height290 mm
Depth210 mm

Weights

Weight, approx.600 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

6ES7421-7DH00-0AB0: frequently asked questions

When can 6ES7421-7DH00-0AB0 be shipped?

6ES7421-7DH00-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7421-7DH00-0AB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7421-7DH00-0AB0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7421-7DH00-0AB0, subject to availability and destination.
