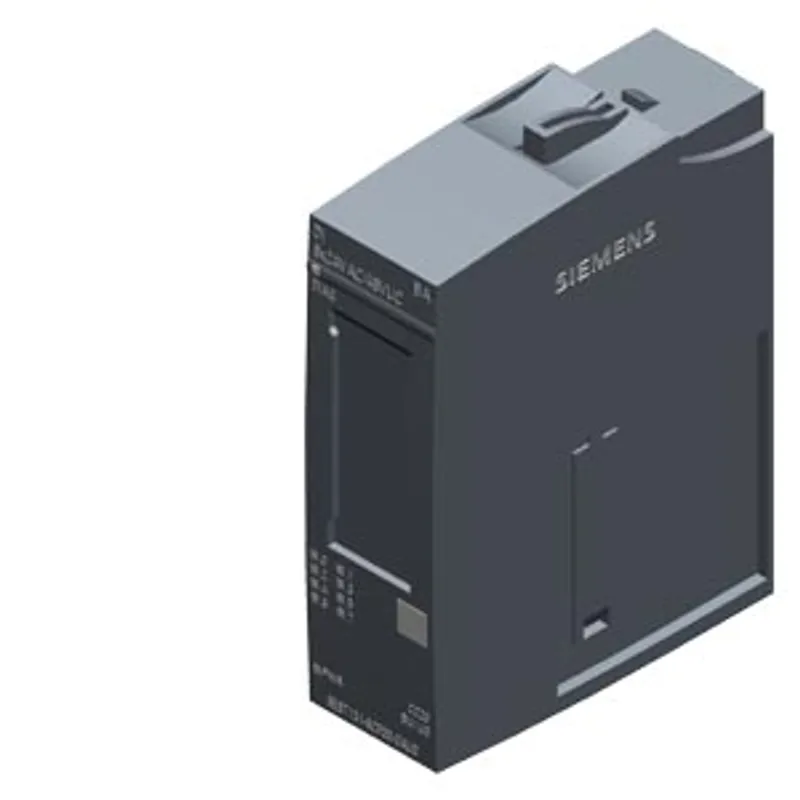

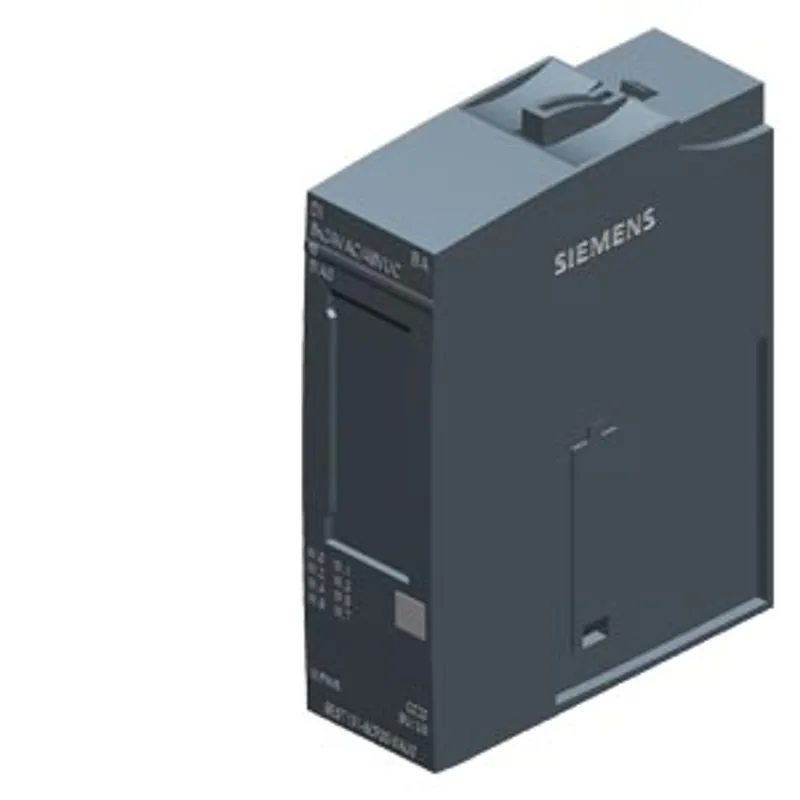

Siemens 6ES7131-6CF00-0AU0

SIMATIC ET 200SP, digital input module, DI 8x 24 V AC..48 V UC Basic, packing quantity: 1 unit

MPN: 6ES7131-6CF00-0AU0
Category: Digital input modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7131-6CF00-0AU0?

SIMATIC ET 200SP, digital input module, DI 8x 24 V AC..48 V UC Basic, packing quantity: 1 unit, suitable for BU type U0, color code CC20, module diagnostics

Specifications

General information

Product type designation	DI 8x24VAC/48VUC BA
HW functional status	From FS02
Firmware version	V0.0
Firmware version — FW update possible	No
usable BaseUnits	BU type U0
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	No
Product function — suitable for operation on PROFINET R1 IMs	Yes
Engineering with — STEP 7 TIA Portal configurable/integrated from version	V15
Engineering with — STEP 7 configurable/integrated from version	V5.6
Engineering with — PROFIBUS from GSD version/GSD revision	One GSD file each, Revision 3 and 5 and higher
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.3
Operating mode — DI	Yes
Operating mode — Counter	No
Operating mode — Oversampling	No
Operating mode — MSI	No

Supply voltage

Rated value (DC)	48 V
permissible range, lower limit (DC)	40.8 V
permissible range, upper limit (DC)	57.6 V
Rated value (AC)	48 V; 24 V/48 V; 50 Hz/60 Hz
permissible range, lower limit (AC)	40.8 V
permissible range, upper limit (AC)	52.8 V
Reverse polarity protection	Yes

Input current

Current consumption, max.

70 mA; without sensor supply

Encoder supply

Number of outputs	8
Short-circuit protection	Yes; Per module, 5x 20 mm fuse, 2 A/250 V, quick-response, replaceable
Output current — up to 60 °C, max.	1 A
24 V encoder supply — 24 V	No

Power loss

Power loss, typ.

1.5 W

Address area

Address space per module — Address space per module, max.

1 byte

Hardware configuration

Automatic encoding — Mechanical coding element	Yes
Automatic encoding — Type of mechanical coding element	type C
Selection of BaseUnit for connection variants — 1-wire connection	BU type U0
Selection of BaseUnit for connection variants — 2-wire connection	BU type U0
Selection of BaseUnit for connection variants — 3-wire connection	BU type U0 + Potential distributor module
Selection of BaseUnit for connection variants — 4-wire connection	BU type U0 + Potential distributor module

Digital inputs

Number of digital inputs	8
Sourcing/sinking input	P-reading
Input characteristic curve in accordance with IEC 61131, type 1	Yes
Input characteristic curve in accordance with IEC 61131, type 2	No
Input characteristic curve in accordance with IEC 61131, type 3	No
Pulse extension	No
Input voltage — for signal "0"	AC/DC < 10 V
Input voltage — for signal "1"	AC > 14 V, DC > 34 V
Input current — for signal "1", typ.	3.5 mA
Input delay (for rated value of input voltage) — for standard inputs — parameterizable	No
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max.	15 ms
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max.	20 ms
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Encoder

Connectable encoders — 2-wire sensor

Yes

Interrupts/diagnostics/status information

Diagnostics function	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Diagnostic information readable	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Monitoring of encoder power supply	Yes
Diagnoses — Group error	Yes
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	No
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — between the channels and the power supply of the electronics	No

Isolation

Isolation tested with

1 200 V DC between supply voltage and backplane bus

Standards, approvals, certificates

Suitable for safety functions	No
Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	15.9 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	3.69 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	12.7 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.495 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	2 000 m; On request: Installation altitudes greater than 2 000 m
Absolute humidity — dew point, min.	-60 °C; suitable for dry room applications

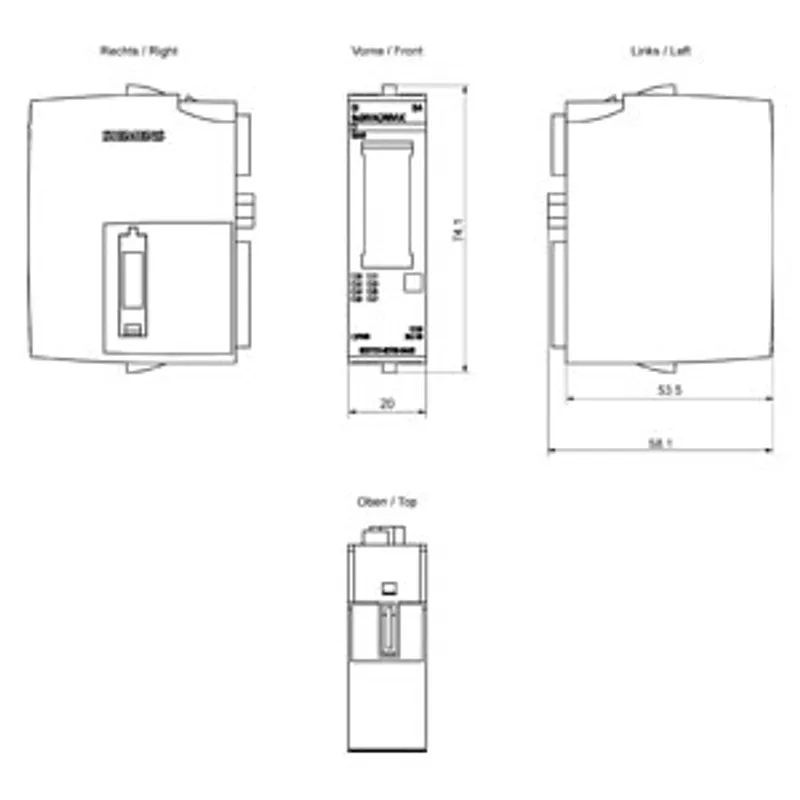

Dimensions

Width	20 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

40 g
