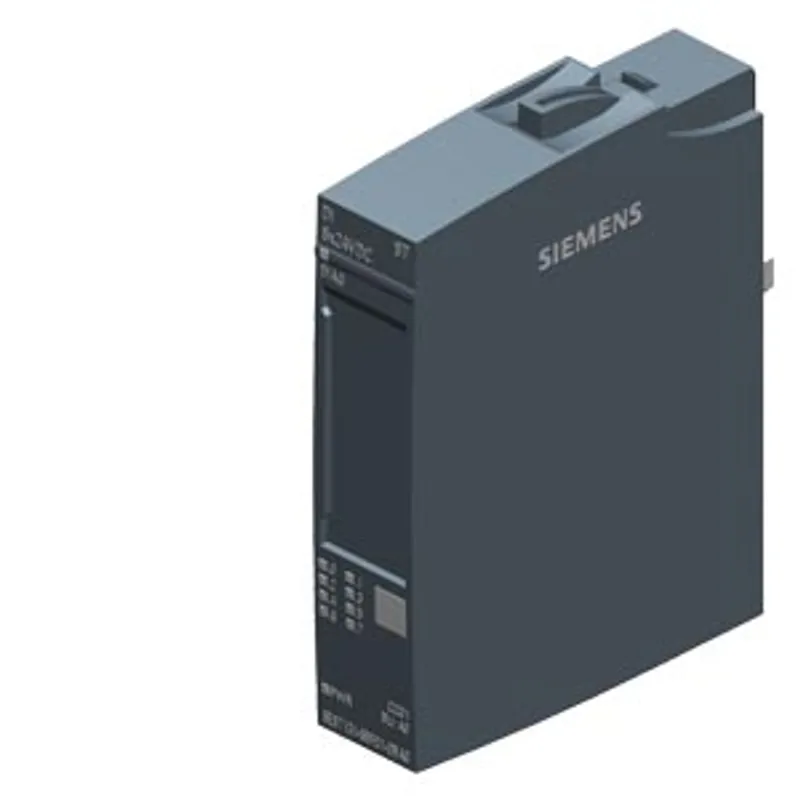

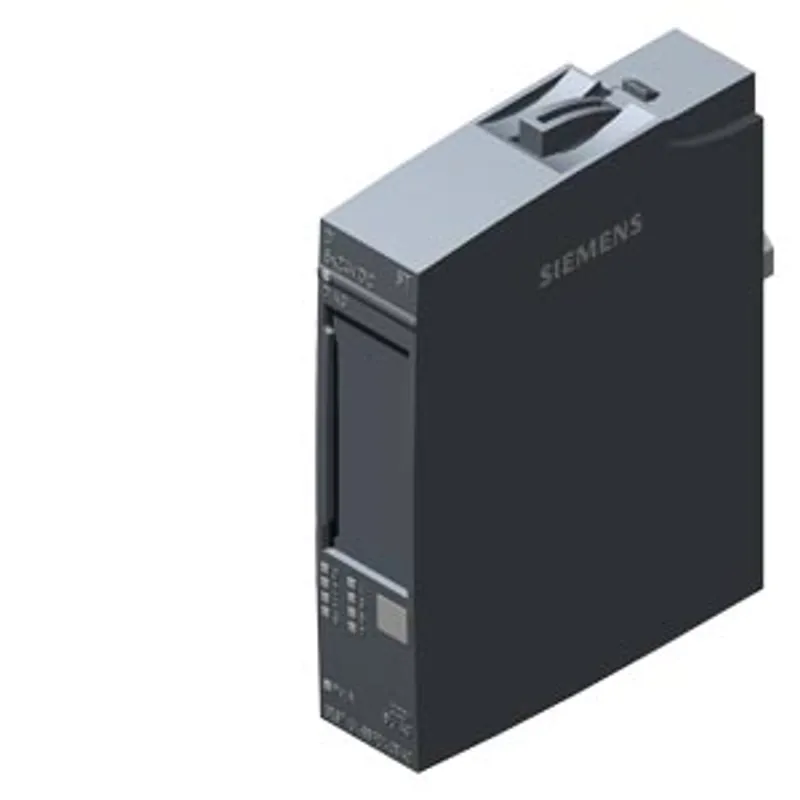

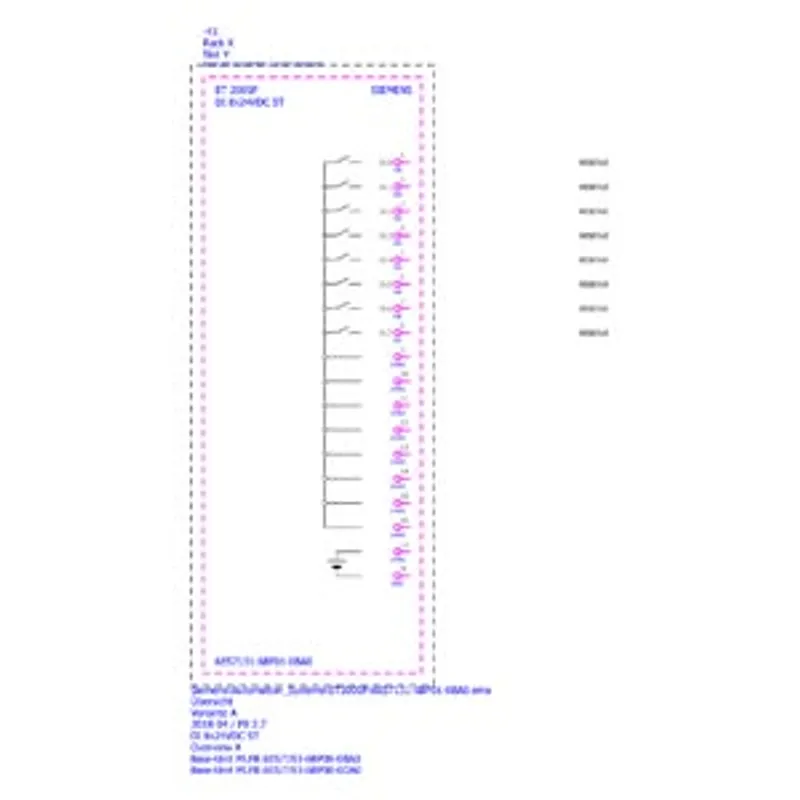

SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Standard, type 3 (IEC 61131), sink input

MPN: 6ES7131-6BF01-0BA0
Category: Digital input modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7131-6BF01-0BA0?

SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Standard, type 3 (IEC 61131), sink input, (PNP, P-reading), Packing unit: 1 piece, fits to BU-type A0, Colour Code CC01, input delay time 0,05..20ms, module diagnostics for: short-circuit of sensor supply, wire break, supply voltage

Specifications

General information

Product type designation	DI 8x24 VDC ST
HW functional status	From FS02
Firmware version	V0.0
Firmware version — FW update possible	No
usable BaseUnits	BU type A0
Color code for module-specific color-coded label	CC01
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	No
Product function — suitable for operation on PROFINET R1 IMs	Yes
Engineering with — STEP 7 TIA Portal configurable/integrated from version	V14
Engineering with — STEP 7 configurable/integrated from version	V5.5 SP3 or higher
Engineering with — PCS 7 configurable/integrated from version	V8.1 SP1
Engineering with — PCS neo can be configured/integrated from version	V3.1
Engineering with — PROFIBUS from GSD version/GSD revision	One GSD file each, Revision 3 and 5 and higher
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.3
Operating mode — DI	Yes
Operating mode — Counter	No
Operating mode — Oversampling	No
Operating mode — MSI	No

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption, max.

50 mA; All channels are supplied from the encoder supply

Encoder supply

Number of outputs	8
Output voltage, min.	19.2 V
Short-circuit protection	Yes; per module
24 V encoder supply — 24 V	Yes
24 V encoder supply — Short-circuit protection	Yes
24 V encoder supply — Output current, max.	700 mA
24 V encoder supply — Output current per channel, max.	700 mA
24 V encoder supply — Output current per module, max.	700 mA

Power loss

Power loss, typ.

1 W; 24 V, 8 inputs supplied via encoder supply

Address area

Address space per module — Inputs

1 byte; + 1 byte for QI information

Hardware configuration

Automatic encoding	Yes
Automatic encoding — Mechanical coding element	Yes
Automatic encoding — Type of mechanical coding element	Type A
Selection of BaseUnit for connection variants — 1-wire connection	BU type A0
Selection of BaseUnit for connection variants — 2-wire connection	BU type A0
Selection of BaseUnit for connection variants — 3-wire connection	BU type A0 with AUX terminals or potential distributor module
Selection of BaseUnit for connection variants — 4-wire connection	BU type A0 + Potential distributor module

Digital inputs

Number of digital inputs	8
Digital inputs, parameterizable	Yes
Sourcing/sinking input	P-reading
Input characteristic curve in accordance with IEC 61131, type 3	Yes
Input voltage — Rated value (DC)	24 V
Input voltage — for signal "0"	-30 to +5 V
Input voltage — for signal "1"	+11 to +30V
Input current — for signal "1", typ.	2.5 mA
Input delay (for rated value of input voltage) — for standard inputs — Parameterizable	Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length)
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", min.	0.05 ms
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max.	20 ms
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", min.	0.05 ms
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max.	20 ms
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Encoder

Connectable encoders — 2-wire sensor	Yes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.	1.5 mA

Interrupts/diagnostics/status information

Diagnostics function	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Diagnostic information readable	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Monitoring the supply voltage — Parameterizable	Yes
Diagnoses — Monitoring of encoder power supply	Yes; Module-by-module, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 25 kOhm to 45 kOhm
Diagnoses — Wire break	Yes; module-wise
Diagnoses — short-circuit	Yes; module-wise
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	No
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — between the channels and the power supply of the electronics	No

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functions	No
Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	15.9 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	3.69 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	12.7 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.495 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C; < 0 °C as of FS02
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C; < 0 °C as of FS02
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity — dew point, min.	-60 °C; suitable for dry room applications

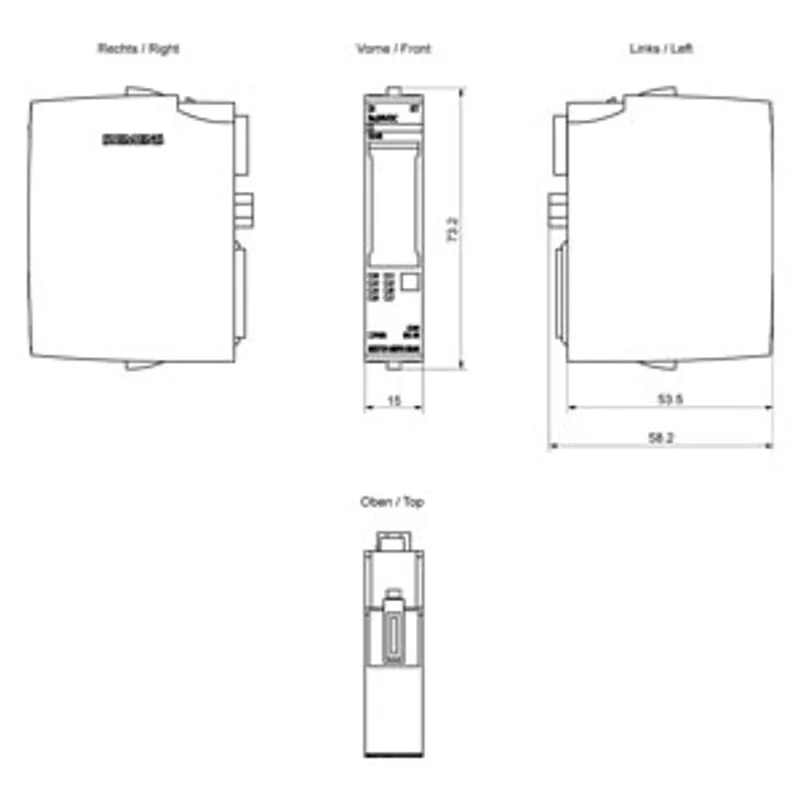

Dimensions

Width	15 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

28 g
