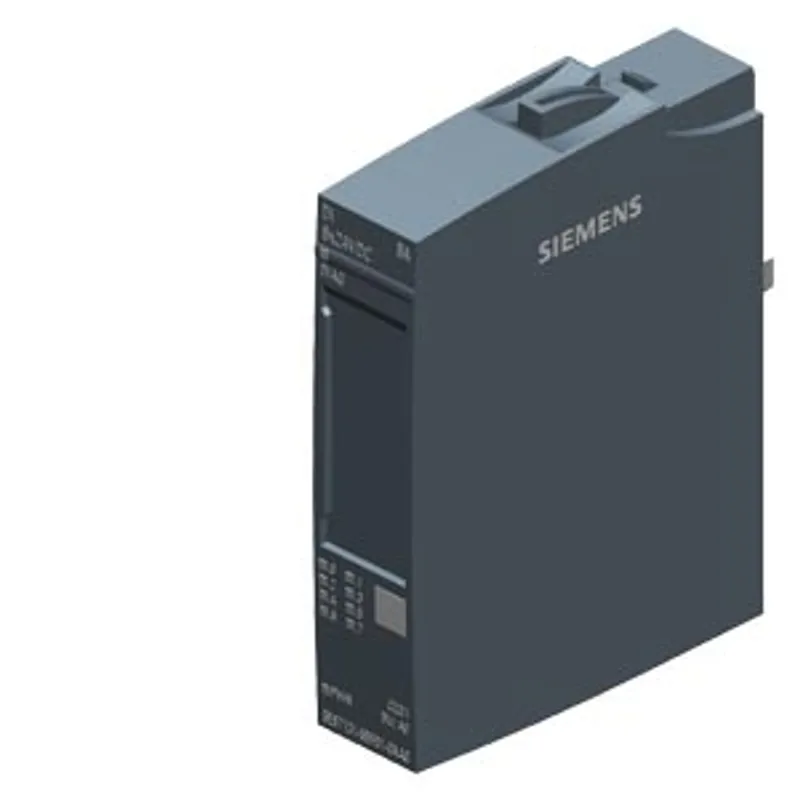

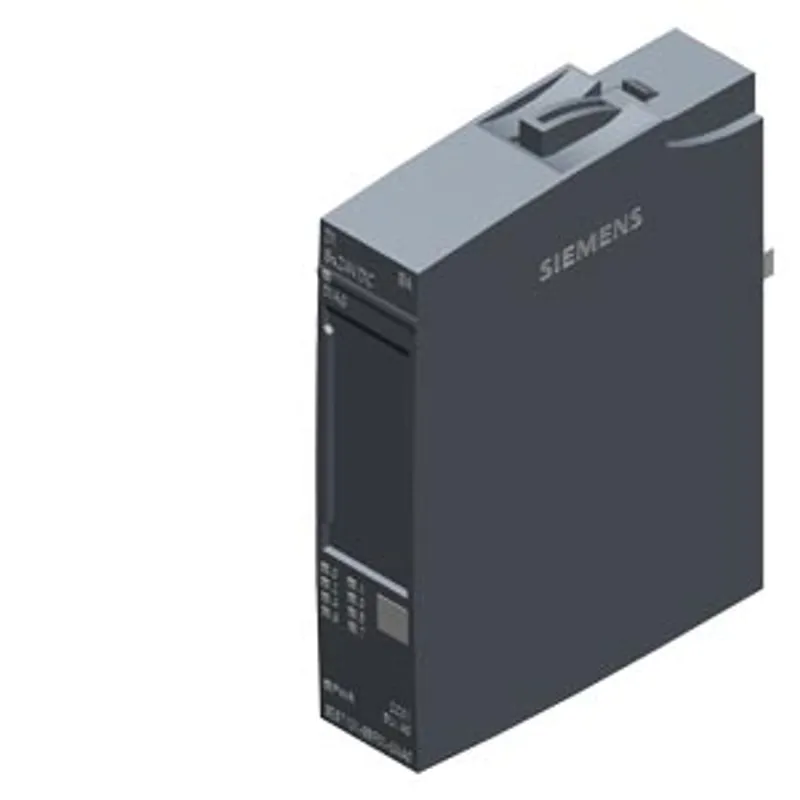

Siemens 6ES7131-6BF01-0AA0
SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Basic, type 2 (IEC 61131), sink input, (PNP, P-reading)
- MPN
- 6ES7131-6BF01-0AA0
- Category
- Digital input modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7131-6BF01-0AA0?
SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Basic, type 2 (IEC 61131), sink input, (PNP, P-reading), Packing unit: 1 piece, fits to BU-type A0, Colour Code CC01, input delay time 0,05..20ms, module diagnostics for: supply voltage
Specifications
General information
| Product type designation | DI 8x24VDC BA |
| HW functional status | FS03 |
| Firmware version | V0.0 |
| Firmware version — FW update possible | No |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC01 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Isochronous mode | No |
| Product function — suitable for operation on PROFINET R1 IMs | Yes |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V14 |
| Engineering with — STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| Engineering with — PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Operating mode — DI | Yes |
| Operating mode — Counter | No |
| Operating mode — Oversampling | No |
| Operating mode — MSI | No |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
Input current
| Current consumption, max. | 70 mA; All channels are supplied from the encoder supply |
Encoder supply
| Number of outputs | 8 |
| Output voltage, min. | 19.2 V |
| Short-circuit protection | Yes; per module |
| 24 V encoder supply — 24 V | Yes |
| 24 V encoder supply — Short-circuit protection | Yes |
| 24 V encoder supply — Output current per channel, max. | 700 mA |
| 24 V encoder supply — Output current per module, max. | 700 mA |
Power loss
| Power loss, typ. | 1.6 W; 24 V, 8 inputs supplied via encoder supply |
Address area
| Address space per module — Inputs | 1 byte |
Hardware configuration
| Automatic encoding | Yes |
| Automatic encoding — Mechanical coding element | Yes |
| Automatic encoding — Type of mechanical coding element | Type A |
| Selection of BaseUnit for connection variants — 1-wire connection | BU type A0 |
| Selection of BaseUnit for connection variants — 2-wire connection | BU type A0 |
| Selection of BaseUnit for connection variants — 3-wire connection | BU type A0 with AUX terminals or potential distributor module |
| Selection of BaseUnit for connection variants — 4-wire connection | BU type A0 + Potential distributor module |
Digital inputs
| Number of digital inputs | 8 |
| Digital inputs, parameterizable | Yes |
| Sourcing/sinking input | P-reading |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Input characteristic curve in accordance with IEC 61131, type 2 | Yes |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes |
| Input voltage — Rated value (DC) | 24 V |
| Input voltage — for signal "0" | -30 to +5 V |
| Input voltage — for signal "1" | +11 to +30V |
| Input current — for signal "1", typ. | 6.8 mA |
| Input delay (for rated value of input voltage) — for standard inputs — parameterizable | Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length) |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", min. | 0.05 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max. | 20 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", min. | 0.05 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max. | 20 ms |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 600 m |
Encoder
| Connectable encoders — 2-wire sensor | Yes |
| Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max. | 2 mA |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Monitoring the supply voltage — parameterizable | Yes |
| Diagnoses — Monitoring of encoder power supply | No |
| Diagnoses — Wire break | No |
| Diagnoses — Short-circuit | No |
| Diagnoses — Group error | Yes |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | No |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — between the channels and the power supply of the electronics | No |
Isolation
| Isolation tested with | 707 V DC (type test) |
Standards, approvals, certificates
| Suitable for safety functions | No |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 15.9 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 3.69 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 12.7 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.495 kg |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -30 °C; < 0 °C as of FS03 |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -30 °C; < 0 °C as of FS03 |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity — dew point, min. | -60 °C; suitable for dry room applications |

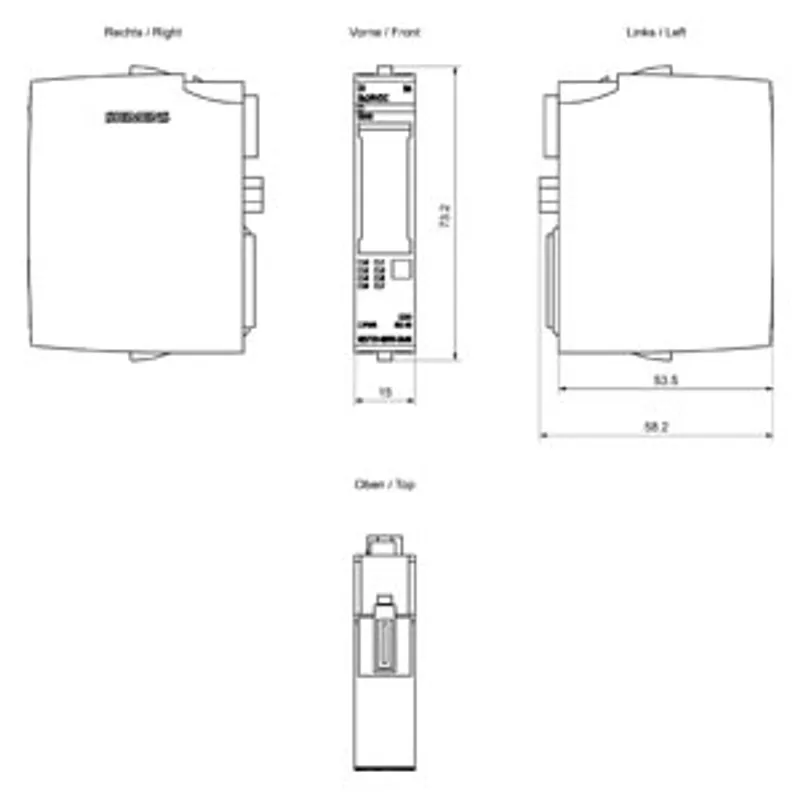

Dimensions
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
Weights
| Weight, approx. | 28 g |
