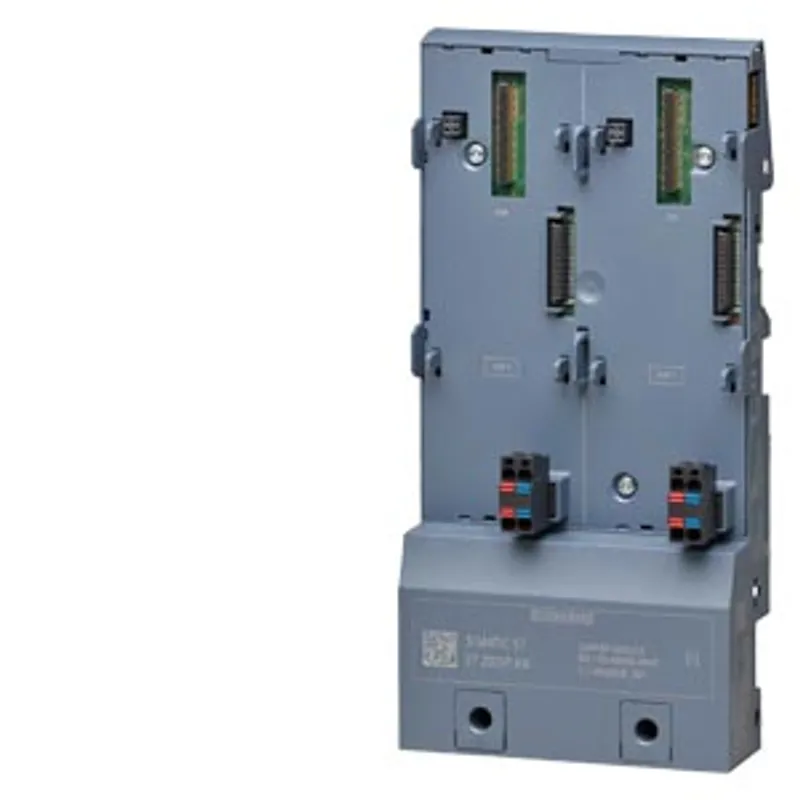

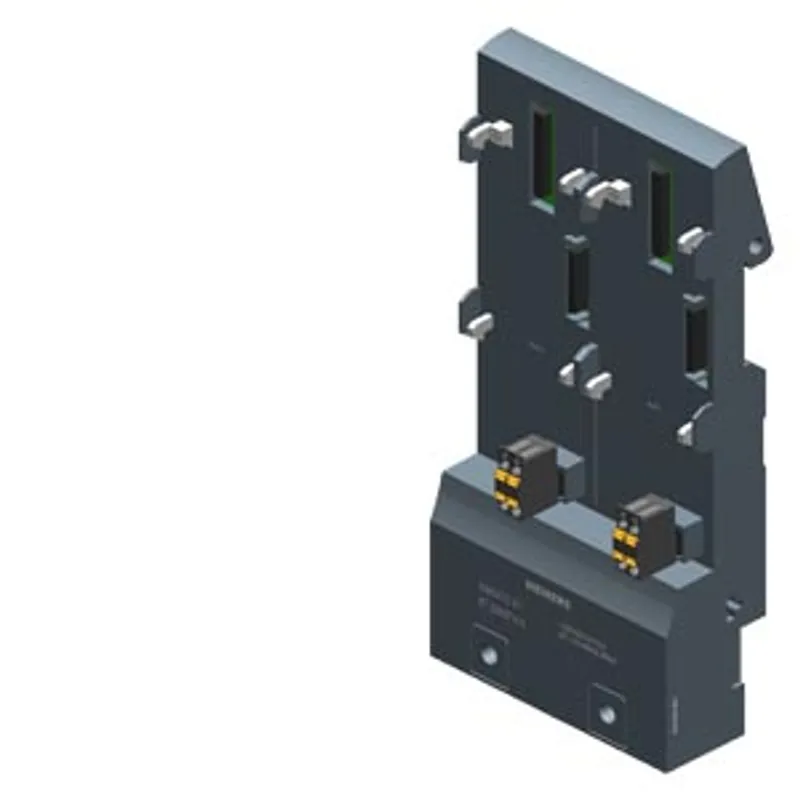

Siemens 6DL1193-6BH00-0RM0
SIMATIC ET 200SP HA, Carrier module in redundant carrier for holding 2 interface modules of the ET 200SP HA…
- MPN
- 6DL1193-6BH00-0RM0
- Category
- Carrier modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL1193-6BH00-0RM0?
SIMATIC ET 200SP HA, Carrier module in redundant carrier for holding 2 interface modules of the ET 200SP HA incl. server module
Specifications
General information
| Product type designation | Carrier module IM redundant |
| Product function — I&M data | Yes; Asset data |
Supply voltage
| Rated value (DC) | 24 V |
Hardware configuration
| Slots — Number of slots | 2 |
Potential separation
| between backplane bus and supply voltage | Yes |
Isolation
| Isolation tested with | 1 500 V DC/1 min, type test |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 70 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 60 °C |

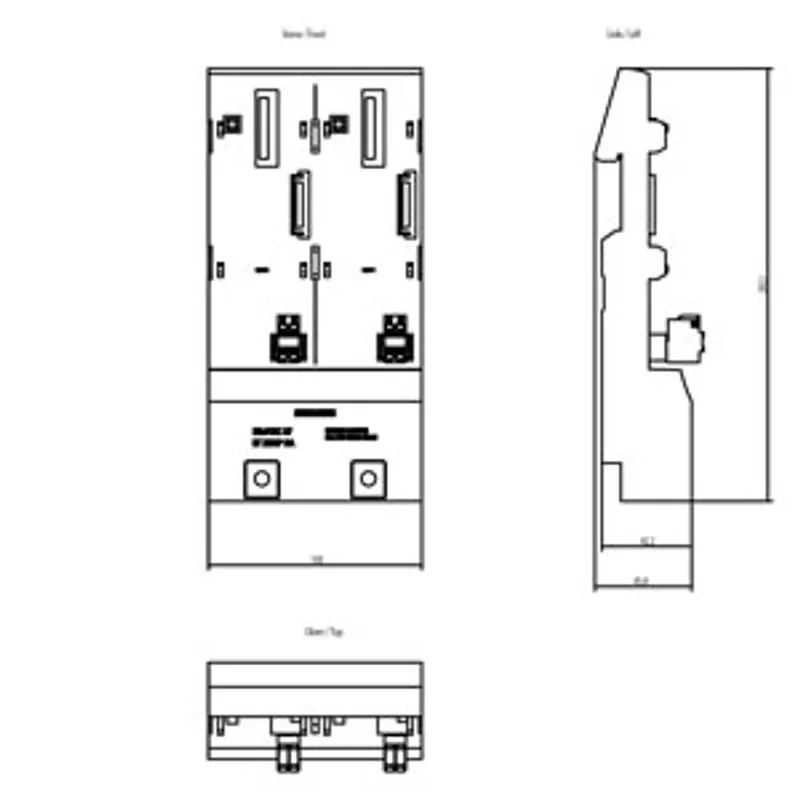

Dimensions
| Width | 100 mm |
| Height | 204 mm |
| Depth | 29 mm; measured without power plug |
Weights
| Weight, approx. | 224 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6DL1193-6BH00-0RM0: frequently asked questions
When can 6DL1193-6BH00-0RM0 be shipped?
6DL1193-6BH00-0RM0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6DL1193-6BH00-0RM0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6DL1193-6BH00-0RM0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6DL1193-6BH00-0RM0, subject to availability and destination.
