Schneider Electric ZBRM22A0
Wireless and batteryless transmitter, Harmony XB5R, plastic, black, 2 simples action
- MPN
- ZBRM22A0
- EAN
- 3606480891083
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric ZBRM22A0?

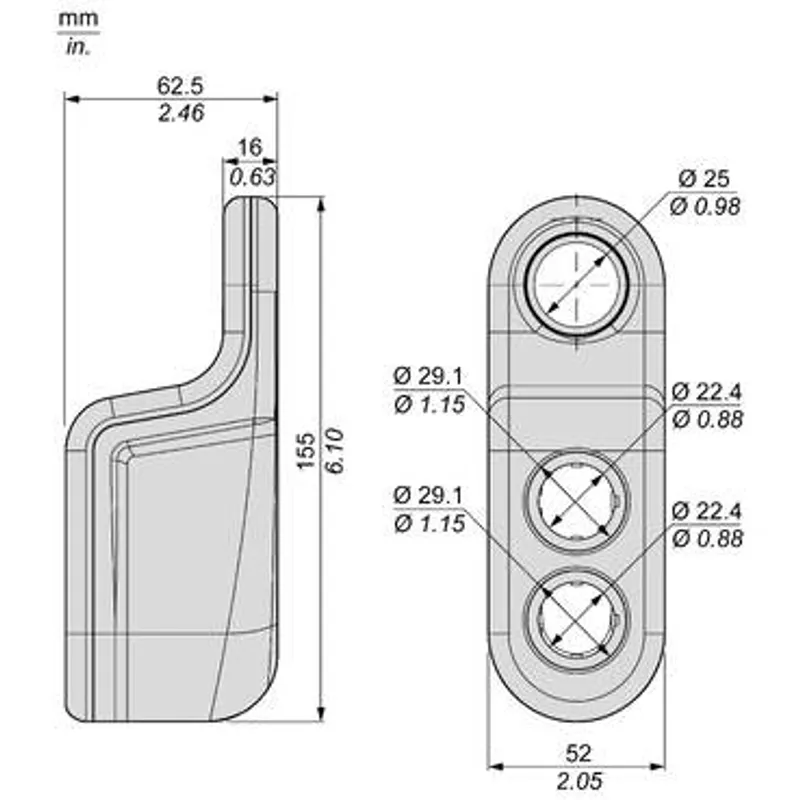

"This product is part of the Harmony XB5R range, an offer of Ø 22 mm battery-less and wireless pushbuttons." "This wireless and battery less handy box is fitted with 2 simple action pushbutton and transmitters." "The round head pushbutton operates with spring return actuation." "The transmitter uses Zigbee green power at 2.4GHz communication." "It offers mechanical durability of about 1 million cycles." "The mobile box is made of polycarbonate with plastic fixing collar and bezel. Its dimensions are 52mm (width) x 62.5mm (depth) x 155mm (height). It weighs 0.2kg." "It is ideal for automotive and logistic centers conveying systems, bottle filling, palletizer and wrapping machines. It is also suitable for lighting and door opening." "This product is certified by C-Tick, CSA, BT 2006/95/EC, EAC, UL and CCC. It meets EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1 and UL 508 standards." "The handy box kit includes 1x set of caps, 1x handy box, 2x transmitter, 2x 22mm pushbutton head and 2x fixing collars." "Complete freedom to place or move the wireless pushbutton anywhere. Battery less devices for no maintenance, no recharge and no recycling." "Harmony universal wireless batteryless devices are compatible with the Ø 22mm Harmony XB4-XB5 actuators."
Specifications
Specifications
| Range of product | Harmony XB5R |
| Product or component type | Wireless and batteryless transmitter |
| Device short name | XB5R |
| Contact operation | 2 simple action push-button |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22 mm |
| Kit composition | 1 set of caps, 1 handy box, 2 transmitter, 2 push-button head diameter: 22 mm, 2 fixing collars |
| Shape of signaling unit head | Round |
| Type of operator | Spring return push-button with transmitter |
| Operator profile | Flush |
| Operator additional information | Set of caps |
| Net weight | 0.2 kg |
| Mechanical durability | 1000000 cycles |
| Operating travel | 4.3 mm (total travel) |
| Operating force | 25 N C/O changing electrical state |
| Shock resistance | 25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Mechanical robustness | Free fall resistance 1000 mm conforming to IEC 60068-2-32 |
| Communication port protocol | Zigbee green power at 2.4 GHz |
| Maximum sensing distance | 100 m in free field, 25 m transmitter in the handy box and receiver in a metal enclosure, 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna |
| Acquisition time | 2 ms |
| Response time | < 2 ms |
| Emission power | 3 mW |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| IP degree of protection | IP65 (front face) conforming to IEC 60529, IP65 (front face) conforming to UL Type 12 |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Relative humidity | 95 % at 70 °C without condensation |
| Vibration resistance | 5 gn (f= 11…500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
| Radio agreement | RSS conforming to UL 508, ARIB T66 conforming to CSA C22.2 No 14, ICASA, ANATEL, FCC |
| Standards | IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, UL 508 |
| Product certifications | C-Tick, CSA, BT 2006/95/EC, EAC, UL, CCC |
| Directives | 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive |
Packaging
| Package 1 | 1 PCE, 16.900 cm × 6.800 cm × 6.800 cm (L × W × H), 206.000 g |
