Schneider Electric XBTR411

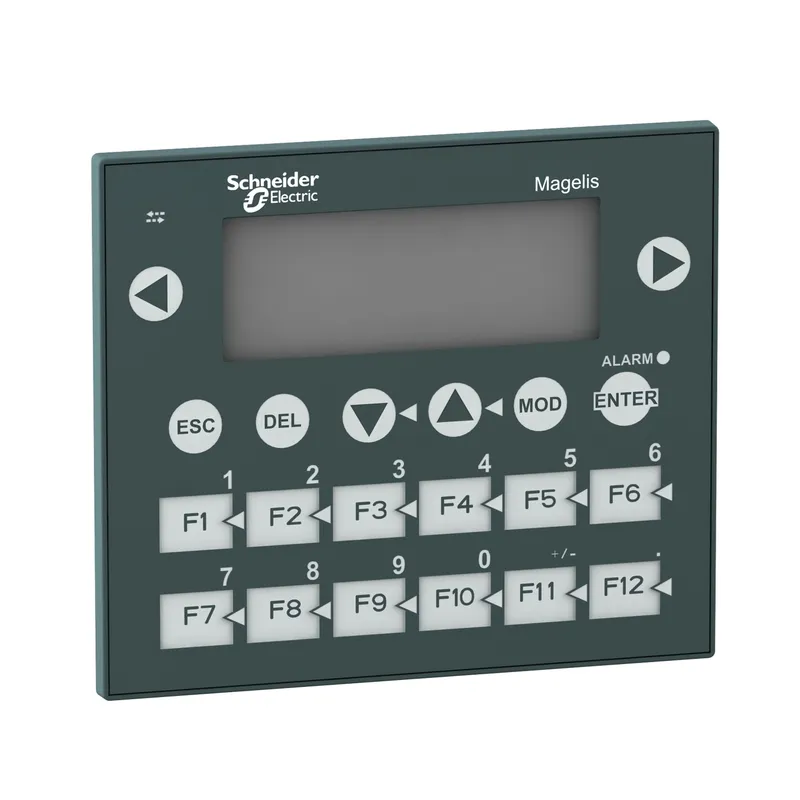

Small panel with keypad - matrix screen - G-O-R - 122 x 32 pixels - 24 V DC

MPN
XBTR411
EAN
3389119000055
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original XBTR411 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric XBTR411?

This product is part of the Magelis XBT R range, an offer of HMI small panels. It comes a keypad and matrix backlit green/red/orange LCD display with a resolution of 122 x 32 pixels. The display supports 4 lines of 20 characters maximum and 1 line of 5 characters minimum. The HMI small panel provides operators enhanced text and image display, utilising graphic objects for display flexibility. It supports Vijeo Designer Lite configuration software and Windows operating system with 512kB flash memory and Latin, Chinese (simplified), Greek, Cyrillic and Katakana character fonts. It has 25-way female D-Sub (DB-25), asynchronous transmission mode (RS232C/RS485) multidrop topology serial link, removable screw terminal block, female mini DIN printer port integrated connections. It is IP20/IP65, NEMA 4X rated product. This keypad is made of polyester and front material is PPT. Its dimensions are 137mm (width) x 39mm (depth) x 118mm (height) and weighs 0.55kg. This product is certified by CE, ATEX, UL and CSA. It meets IEC 61131-2, IEC 60068-2-6, CSA C22.2 No 14, IEC 60068-2-27 and UL 508 standards. This product is compatible with Modicon Premium, Modicon M340, Twido, Modicon TSX Micro, Modicon Momentum and Modicon Quantum. The Magelis XBT N, R, RT range brings you convenience and ease of use, with a compact product, touch screen features and semi-graphic display suitable for small machines. Display text messages, utilize semi-graphic screen, perform diagnostics, control and adjust your control system devices and deliver big things for your business. Discontinued by Schneider Electric; the manufacturer's successor is HMISTO705. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productMagelis XBTR
Display resolution122 x 32 pixels
Software typeConfiguration software
Software designationVijeo Designer Lite
Operating systemWindows

Complementary

Display typeMatrix backlit LCD
Character fontLatin; Chinese (simplified Chinese); Greek; Cyrillic; Katakana
Supply voltage limits18…30 V
Residual ripple<= 1200 MV
Power consumption in W5 W
Number of key20
Number of fixed keys8
Number of customisable keys12
Local signalling16 LEDs
Number of pages200 application pages; 256 alarm pages
Memory typeFlash
Memory capacity512 KB
Integrated connection typeSerial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485)multidrop topology; Power supply: removable screw terminal block; Printer port: female mini DIN
Realtime clockAccess to the PLC real-time clock
Range compatibilityModicon Premium; Modicon M340; Twido; Modicon TSX Micro; Modicon Momentum; Modicon Quantum
Product mountingFlush mounting
Fixing modeBy 4 spring clips
Display materialPolyester
Front materialPPT
Keypad materialPolyester
MarkingCE
Height118 mm
Width137 mm
Depth39 mm
Cut-out dimensions119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm
Net weight0.55 kg

Environment

Product or component typeSmall panel with keypad
Display colourGreen; Red; Orange
display capacity4 lines of 20 characters maximum; 1 line of 5 characters minimum
[Us] rated supply voltage24 V DC
SupplyExternal source
Downloadable protocolsModbus; Third party protocols; Uni-TE
StandardsIEC 61131-2; IEC 60068-2-6; CSA C22.2 No 14; IEC 60068-2-27; UL 508
Product certificationsCSA Class 1 Division 2; UL 1604; ATEX zone 2/22; UL Class 1 Division 2
Ambient air temperature for operation0…55 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…85 % without condensation
IP degree of protectionIP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (outdoor use)
Shock resistance15 gn for 11 ms
Vibration resistance+/- 3.5 mm (f= 2…8.45 Hz); 1 gn (f= 8.45…150 Hz)

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

XBTR411: frequently asked questions

Can I still buy the XBTR411 now that it is discontinued?

Yes. Schneider Electric has discontinued the XBTR411, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the HMISTO705 as its successor — we can quote both.

When can XBTR411 be shipped?

XBTR411 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XBTR411 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XBTR411 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTR411, subject to availability and destination.
