Schneider Electric XBTRT500

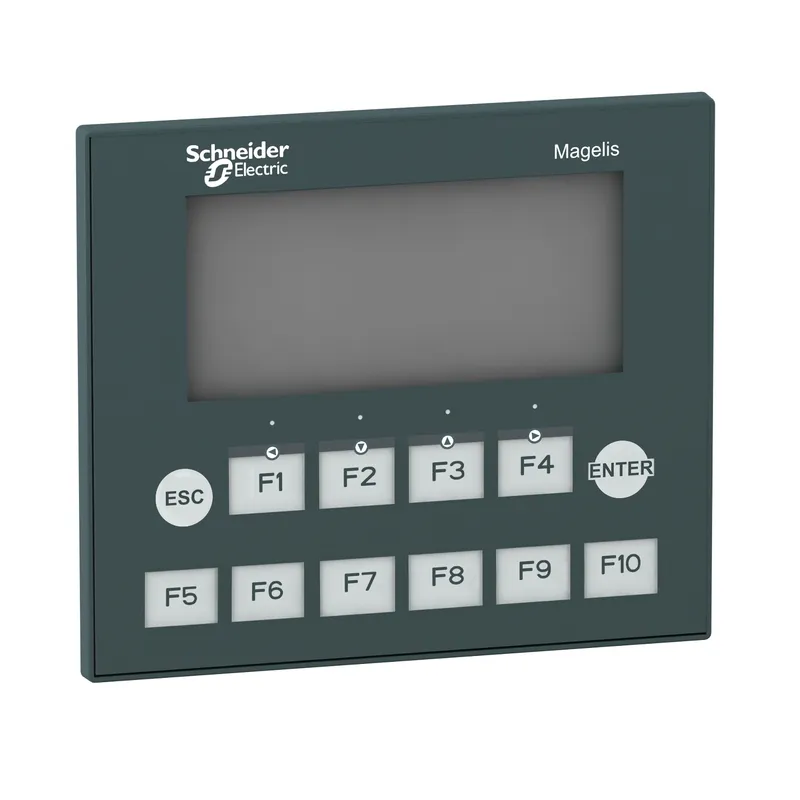

Small panel touchscreen+keypad - matrix screen - green - 198 x 80 pixels - 5VDC

MPN
XBTRT500
EAN
3595863934953
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original XBTRT500 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric XBTRT500?

Schneider Electric XBTRT500 — small panel touchscreen+keypad - matrix screen - green - 198 x 80 pixels - 5VDC (Magelis XBT N, R, RT). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productMagelis XBTRT
Display resolution198 x 80 pixels
Software typeConfiguration software
Software designationVijeo Designer Lite
Operating systemWindows

Complementary

Display typeExtra-bright matrix backlit LCD
Touch panelMatrix
Touch sensitive zone11 x 5 cells
Character fontLatin; Chinese (simplified Chinese); Cyrillic; Katakana; Greek
Number of key12
Number of fixed keys2
Number of customisable keys10
Number of pages256 alarm pages; 200 application pages
Memory typeFlash
Memory capacity512 KB
Integrated connection typeSerial link: female RJ45, asynchronous transmission mode (RS232C/RS485)point-to-point topology
Realtime clockAccess to the PLC real-time clock
Range compatibilityModicon M340; Modicon Premium; Twido; Modicon TSX Micro
Product mountingFlush mounting
Fixing modeBy 4 spring clips (1.5 to 6 mm thick panel)
Display materialPolyester
Front materialPPT
Keypad materialPolyester
MarkingCE
Height118 mm
Width137 mm
Depth79 mm
Cut-out dimensions119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm
Net weight0.55 kg

Environment

Product or component typeSmall panel with touchscreen and keypad
Display colourGreen
display capacity10 lines of 33 characters maximum; 2 lines of 5 characters minimum; Graphic objects (bargraph, button, light...)
[Us] rated supply voltage5 V DC
SupplyFrom PLC (terminal port)
Downloadable protocolsThird party protocols; Uni-TE; Modbus
StandardsIEC 61131-2; CSA C22.2 No 14; IEC 60068-2-27; UL 508; IEC 60068-2-6
Product certificationsUL 1604; ATEX zone 2/22; CSA Class 1 Division 2; UL Class 1 Division 2
Ambient air temperature for operation0…55 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…85 % without condensation
IP degree of protectionIP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (indoor use)
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance+/- 3.5 mm (f= 2…8.45 Hz) conforming to IEC 60068-2-6; 1 gn (f= 8.45…150 Hz) conforming to IEC 60068-2-6
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
