Schneider Electric XBTRT511

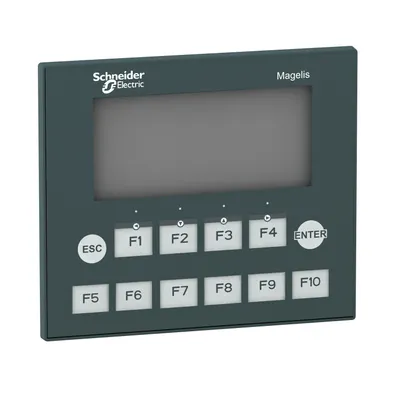

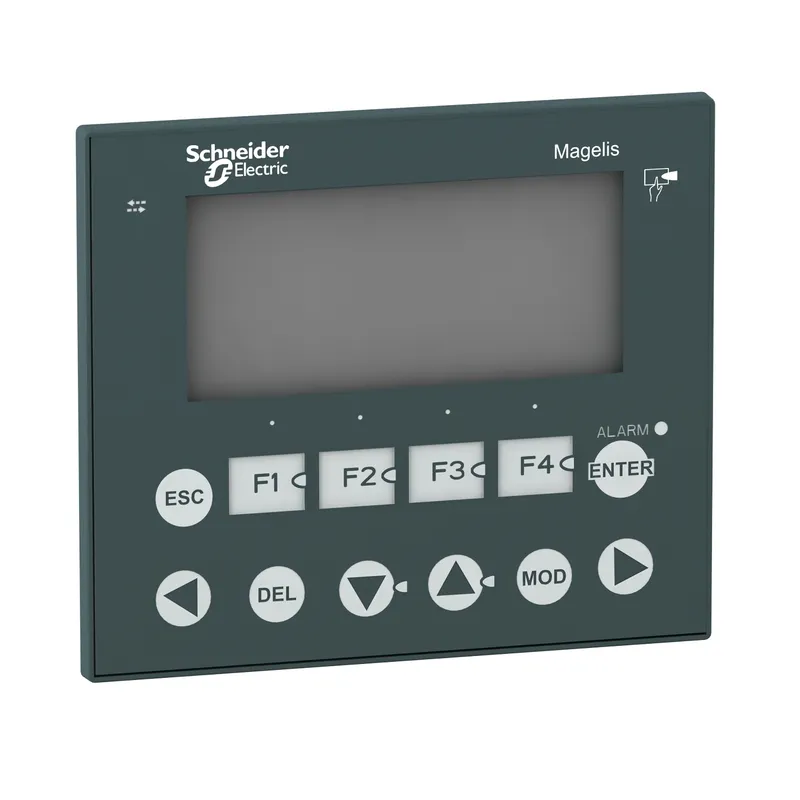

Small panel touchscreen+keypad - matrix screen - G-O-R - 198 x 80 pixels - 24VDC

MPN
XBTRT511
EAN
3595864000015
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original XBTRT511 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric XBTRT511?

Schneider Electric XBTRT511 — small panel touchscreen+keypad - matrix screen - G-O-R - 198 x 80 pixels - 24VDC (Magelis XBT N, R, RT). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productMagelis XBTRT
Display resolution198 x 80 pixels
Software typeConfiguration software
Software designationVijeo Designer Lite
Operating systemWindows

Complementary

Display typeExtra-bright matrix backlit LCD
Touch panelMatrix
Touch sensitive zone11 x 5 cells
Character fontKatakana; Cyrillic; Latin; Greek; Chinese (simplified Chinese)
Supply voltage limits18…30 V
Residual ripple<= 1200 MV
Power consumption in W5 W
Number of key12
Number of fixed keys2
Number of customisable keys10
Local signalling13 LEDs; 1 buzzer
Number of pages200 application pages; 256 alarm pages
Memory typeFlash
Memory capacity512 KB
Integrated connection typeSerial link: female RJ45, asynchronous transmission mode (RS232C/RS485)multidrop topology; Power supply: removable screw terminal block; Printer port: 8-way female mini DIN
Realtime clockAccess to the PLC real-time clock
Range compatibilityModicon Premium; Modicon TSX Micro; Modicon Momentum; Modicon Quantum; Modicon M340; Twido
Product mountingFlush mounting
Fixing modeBy 4 spring clips (1.5 to 6 mm thick panel)
Display materialPolyester
Front materialPPT
Keypad materialPolyester
MarkingCE
Height118 mm
Width137 mm
Depth79 mm
Cut-out dimensions119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm
Net weight0.55 kg

Environment

Product or component typeSmall panel with touchscreen and keypad
Display colourOrange; Red; Green
display capacityGraphic objects (bargraph, button, light...); 2 lines of 5 characters minimum; 10 lines of 33 characters maximum
[Us] rated supply voltage24 V DC
SupplyExternal source
Downloadable protocolsThird party protocols; Modbus; Uni-TE
StandardsIEC 60068-2-27; CSA C22.2 No 14; IEC 60068-2-6; IEC 61131-2; UL 508
Product certificationsUL Class 1 Division 2; ATEX zone 2/22; UL 1604; CSA Class 1 Division 2
Ambient air temperature for operation0…55 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…85 % without condensation
IP degree of protectionIP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (indoor use)
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance+/- 3.5 mm (f= 2…8.45 Hz) conforming to IEC 60068-2-6; 1 gn (f= 8.45…150 Hz) conforming to IEC 60068-2-6
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

XBTRT511: frequently asked questions

Can I still buy the XBTRT511 now that it is discontinued?

Yes. Schneider Electric has discontinued the XBTRT511, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can XBTRT511 be shipped?

XBTRT511 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XBTRT511 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XBTRT511 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTRT511, subject to availability and destination.
