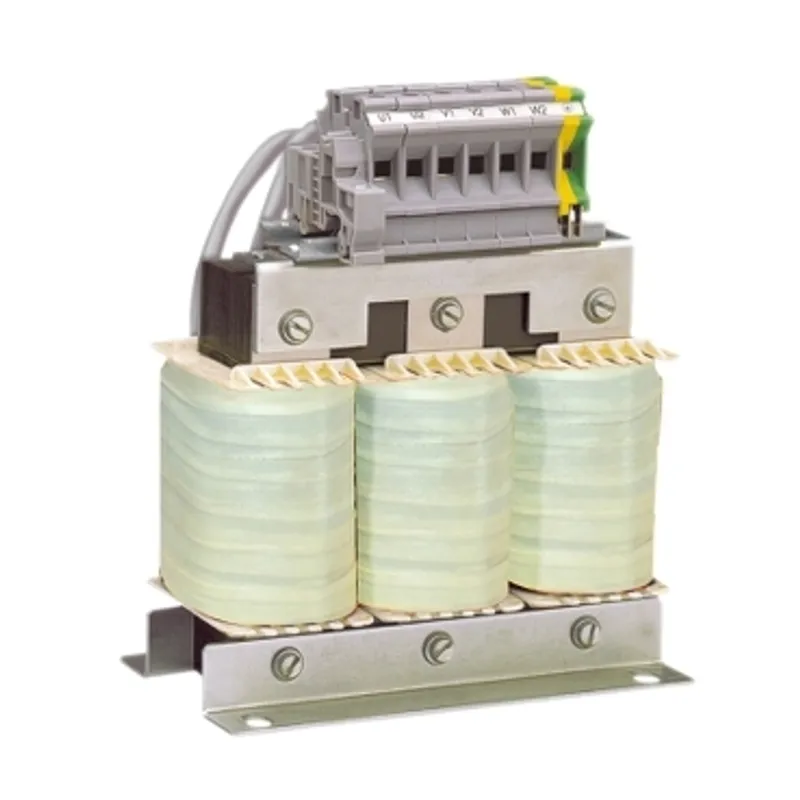

Schneider Electric VW3A5107
Motor choke, Altivar, for variable speed drive, 759A, IP00
- MPN
- VW3A5107
- EAN
- 3389119201544
- Category
- Altivar 71
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A5107?
This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 759A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 93 kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Specifications
Specifications
| Product or component type | Motor choke |
| Range compatibility | Altivar 71, Altivar Process ATV900, Altivar 61Q, Altivar 61, Altivar 71Q, Altivar Process ATV600 |
| Product specific application | Output filter |
| [In] rated current | 759 A |
| Product compatibility | ATV71HC25N4, ATV61HC25N4, ATV61HC31N4, ATV61HC40N4, ATV61HC50Y, ATV61HC63Y, ATV61QC31N4, ATV61QC40N4, ATV61QC40Y, ATV61QC50Y, ATV71HC28N4, ATV71HC31N4, ATV71HC40N4, ATV71HC40Y, ATV71HC50Y, ATV71QC25N4, ATV71QC31N4, ATV71QC31Y, ATV71QC40Y, ATV630 variable speed drive wall mount - 250 kW, 380...480 V, ATV630 variable speed drive wall mount - 315 kW, 380...480 V, ATV930 variable speed drive wall mount - 250 kW, 380...480 V, ATV930 variable speed drive wall mount - 315 kW, 380...480 V |
| nedded quantity | 3 |
| Electrical connection | Tag connector 2 x M12 |
| Maximum motor cable length | 200 m shielded cable P motor 250…355 kW at 380...480 V 1, 250 m unshielded cable P motor 250…355 kW at 380...480 V 1, 150 m shielded cable P motor 400…630 kW at 500...690 V 1, 250 m unshielded cable P motor 400…630 kW at 500...690 V 1, 250 m shielded cable P motor 400…630 kW at 500...690 V 2, 400 m unshielded cable P motor 400…630 kW at 500...690 V 2 |
| dv/dt | 500 V/µs max at 400 V, 750 V/µs max at 500 V, 1000 V/µs max at 690 V |
| Thermal losses | 598 W |
| maximum drive output frequency | 100 Hz |
| Ambient air temperature for operation | -10…50 °C |
| Net weight | 93 kg |
| IP degree of protection | IP20 (with kits VW3A9612,613), IP00 |
| Ambient air temperature for storage | -25…70 °C |
Packaging
| Package 1 | 1 PCE, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 100.500 kg |
