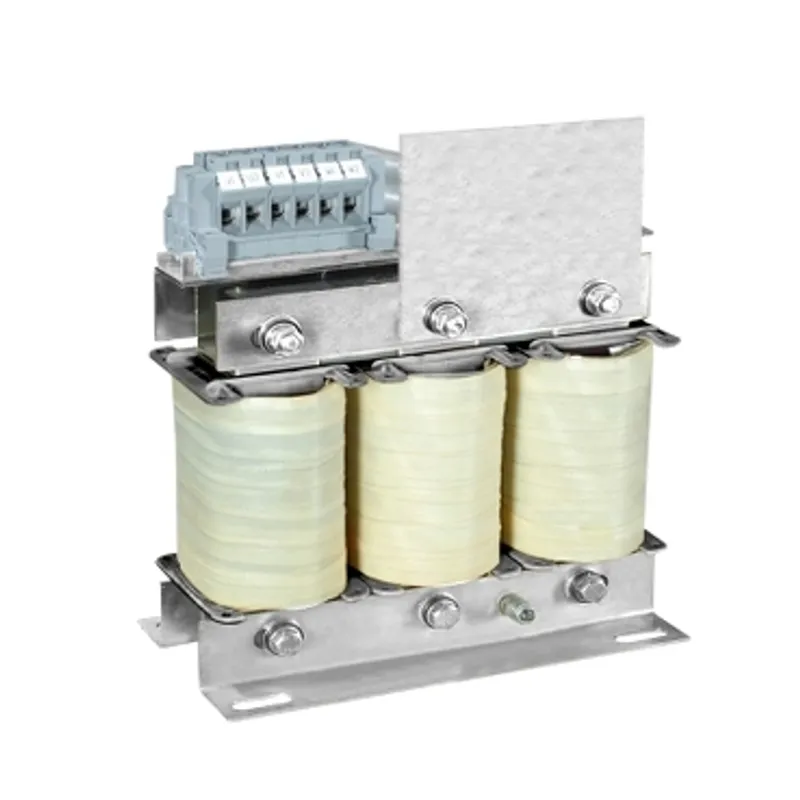

Schneider Electric VW3A5209
Sinus filter - 400 A - for Altivar variable speed drive
- MPN
- VW3A5209
- EAN
- 3389119201605
- Category
- Altivar 71
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A5209?
This sinus filter is an option for variable speed drives of Altivar range. Its rated current is equal to 400A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 190kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.
Specifications
Specifications
| Product or component type | Sinus filter |
| Range compatibility | Altivar 61Q, Altivar 71Q, Altivar 61, Altivar Process ATV900, Altivar 71, Altivar Process ATV600 |
| Product specific application | Output filter |
| [In] rated current | 400 A |
| Thermal losses | 1900 W at 100 Hz |
| Product compatibility | ATV61HC22N4, ATV61QC20N4, ATV61QC25N4, ATV71HC20N4, ATV71HC25N4, ATV71QC20N4, ATV71QC25N4, ATV630 variable speed drive wall mount - 220 kW, 380...480 V, ATV930 variable speed drive wall mount - 220 kW, 380...480 V |
| Switching frequency | 4...8 kHz |
| Maximum output frequency | 100 Hz |
| maximum permissible voltage | 500 V AC |
| Electrical connection | Bare wires diameter: 11 mm |
| Maximum voltage drop at rated load | 10 % |
| Max current | 1.5 x nominal current (duration = 60 s) |
| Net weight | 190 kg |
| IP degree of protection | IP00 |
| Environmental characteristic | 3B1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3S1 conforming to IEC 721-3-3 |
| Pollution degree | 2 conforming to EN 50178 |
| Vibration resistance | 1 gn (f= 13…200 Hz) conforming to IEC 60068-2, 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | 40…50 °C (with current derating 1.5 % per °C), -10…40 °C (without current derating) |
| Ambient air temperature for storage | -40…65 °C |
| Operating altitude | <= 1000 m without current derating, 1000...3000 m with current derating 1 % per 100 m |
Packaging
| Package 1 | 1 PCE, 59.0 cm × 39.0 cm × 80.0 cm (L × W × H), 168.5 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A5209: frequently asked questions
When can VW3A5209 be shipped?
VW3A5209 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A5209 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A5209 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A5209, subject to availability and destination.
