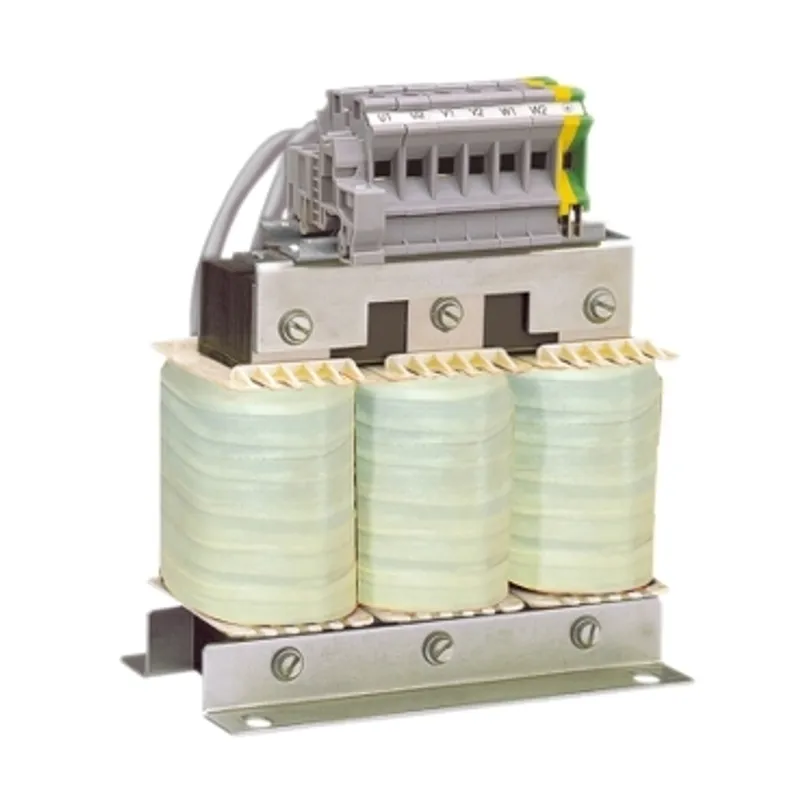

Motor choke, Altivar, for variable speed drive, 314A, IP00
- MPN
- VW3A5105
- EAN
- 3389119201520
- Category
- Altivar 71
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3A5105 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A5105?
This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 314A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 32 kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current. It is sold in indivisible quantity of 3.
Specifications
Specifications
| Product or component type | Motor choke |
| Range compatibility | Altivar 71Q, Altivar 61Q, Altivar 61, Altivar 71 |
| Product specific application | Output filter |
| [In] rated current | 314 A |
| Product compatibility | ATV61HC11N4, ATV61HC13N4, ATV61HC20Y, ATV61HC25Y, ATV61HD55M3X, ATV61HD75M3X, ATV61QC13N4, ATV61QC16N4, ATV61QC16Y, ATV61QC20Y, ATV71HC11N4, ATV71HC13N4, ATV71HC16Y, ATV71HC20Y, ATV71HD55M3X, ATV71HD75M3X, ATV71QC11N4, ATV71QC13N4, ATV71QC13Y, ATV71QC16Y |
| nedded quantity | 3 |
| Electrical connection | Tag connector M10 |
| Maximum motor cable length | 150 m shielded cable P motor 55…75 kW at 200...240 V 1, 300 m unshielded cable P motor 55…75 kW at 200...240 V 1, 150 m shielded cable P motor 110…132 kW at 380...480 V 1, 250 m unshielded cable P motor 110…132 kW at 380...480 V 1, 150 m shielded cable P motor 160…250 kW at 500...690 V 1, 250 m unshielded cable P motor 160…250 kW at 500...690 V 1, 250 m shielded cable P motor 160…250 kW at 500...690 V 2, 400 m unshielded cable P motor 160…250 kW at 500...690 V 2 |
| dv/dt | 500 V/µs max at 400 V, 750 V/µs max at 500 V, 1000 V/µs max at 690 V |
| Thermal losses | 475 W |
| maximum drive output frequency | 100 Hz |
| Ambient air temperature for operation | -10…50 °C |
| Net weight | 32 kg |
| IP degree of protection | IP20 (with kits VW3A9612,613), IP00 |
| Ambient air temperature for storage | -25…70 °C |
