Schneider Electric VW3A5103

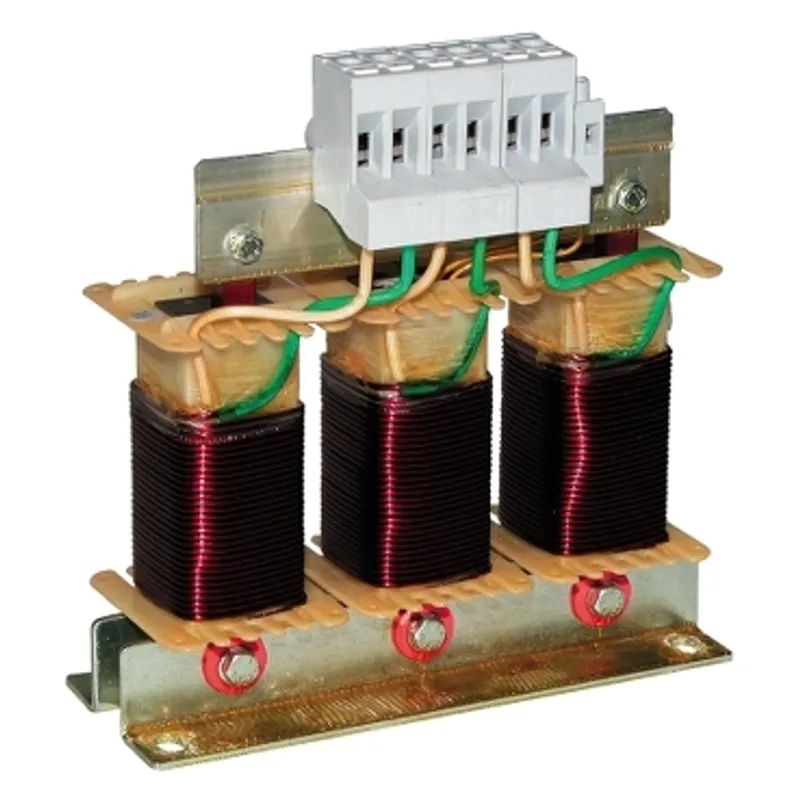

Motor choke, Altivar, for variable speed drive, 90A
- MPN
- VW3A5103
- EAN
- 3389118065918
- Category
- Altivar 71
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A5103?
This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current is equal to 90A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 10kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Specifications
Specifications
| Product or component type | Motor choke |
| Range compatibility | Altivar 212, Altivar 61, Altivar 71, Altivar Process ATV900, Altivar Process ATV600 |
| Product specific application | Output filter |
| [In] rated current | 90 A |
| Product compatibility | ATV61H075N4, ATV61HU15N4, ATV61HU22N4, ATV61HU30N4, ATV61HU40N4, ATV61W075N4, ATV61W075N4C, ATV61WU15N4, ATV61WU15N4C, ATV61WU22N4, ATV61WU22N4C, ATV61WU30N4, ATV61WU30N4C, ATV61WU40N4, ATV61WU40N4C, ATV71H075N4, ATV71HU15N4, ATV71HU22N4, ATV71HU30N4, ATV71HU40N4, ATV71P075N4Z, ATV71PU15N4Z, ATV71PU22N4Z, ATV71PU30N4Z, ATV71PU40N4Z, ATV71W075N4, ATV71WU15N4, ATV71WU22N4, ATV71WU30N4, ATV71WU40N4, ATV61HD11N4, ATV61HD11Y, ATV61HD15N4, ATV61HD18N4, ATV61HU22S6X, ATV61HU30M3, ATV61HU30S6X, ATV61HU30Y, ATV61HU40M3, ATV61HU40S6X, ATV61HU40Y, ATV61HU55M3, ATV61HU55N4, ATV61HU55S6X, ATV61HU55Y, ATV61HU75M3, ATV61HU75N4, ATV61HU75S6X, ATV61HU75Y, ATV61WD11N4, ATV61WD11N4C, ATV61WD15N4, ATV61WD15N4C, ATV61WD18N4, ATV61WD18N4C, ATV61WU55N4, ATV61WU55N4C, ATV61WU75N4, ATV61WU75N4C, ATV71HD11N4, ATV71HD11Y, ATV71HD15N4, ATV71HD18N4, ATV71HU15S6X, ATV71HU22S6X, ATV71HU22Y, ATV71HU30M3, ATV71HU30S6X, ATV71HU30Y, ATV71HU40M3, ATV71HU40S6X, ATV71HU40Y, ATV71HU55M3, ATV71HU55N4, ATV71HU55S6X, ATV71HU55Y, ATV71HU75M3, ATV71HU75N4, ATV71HU75S6X, ATV71HU75Y, ATV71PD11N4Z, ATV71PU55N4Z, ATV71PU75N4Z, ATV71WD11N4, ATV71WD15N4, ATV71WD18N4, ATV71WU55N4, ATV71WU75N4, ATV212H075M3X, ATV212H075N4, ATV212HD11M3X, ATV212HD11N4, ATV212HU15M3X, ATV212HU15N4, ATV212HU22M3X, ATV212HU22N4, ATV212HU30M3X, ATV212HU30N4, ATV212HU40M3X, ATV212HU40N4, ATV212HU55M3X, ATV212HU55N4, ATV212HU75M3X, ATV212HU75N4, ATV212W075N4, ATV212W075N4C, ATV212WD11N4, ATV212WD11N4C, ATV212WU15N4, ATV212WU15N4C, ATV212WU22N4, ATV212WU22N4C, ATV212WU30N4, ATV212WU30N4C, ATV212WU40N4, ATV212WU40N4C, ATV212WU55N4, ATV212WU55N4C, ATV212WU75N4, ATV212WU75N4C, ATV61HD11M3X, ATV61HD15M3X, ATV61HD15Y, ATV61HD18M3X, ATV61HD18Y, ATV61HD22M3X, ATV61HD22N4, ATV61HD22Y, ATV61HD30N4, ATV61HD30Y, ATV61HD37N4, ATV61WD22N4, ATV61WD22N4C, ATV61WD30N4, ATV61WD30N4C, ATV61WD37N4, ATV61WD37N4C, ATV71HD11M3X, ATV71HD15M3X, ATV71HD15Y, ATV71HD18M3X, ATV71HD18Y, ATV71HD22M3X, ATV71HD22N4, ATV71HD22Y, ATV71HD30Y, ATV71HD37N4, ATV71WD30N4, ATV71WD37N4, ATV630 variable speed drive - 2.2 kW, 500...690 V three phase, ATV630 variable speed drive - 3 kW, 500...690 V three phase, ATV630 variable speed drive - 4 kW, 500...690 V three phase, ATV630 variable speed drive - 5.5 kW, 500...690 V three phase, ATV630 variable speed drive - 7.5 kW, 500...690 V three phase, ATV630 variable speed drive - 11 kW, 500...690 V three phase, ATV930 variable speed drive - 2.2 kW, 500...690 V three phase, ATV930 variable speed drive - 3 kW, 500...690 V three phase, ATV930 variable speed drive - 4 kW, 500...690 V three phase, ATV930 variable speed drive - 5.5 kW, 500...690 V three phase, ATV930 variable speed drive - 7.5 kW, 500...690 V three phase, ATV930 variable speed drive - 11 kW, 500...690 V three phase, ATV630 variable speed drive, 3 hp, 600 V three phase, ATV630 variable speed drive, 5 hp, 600 V three phase, ATV630 variable speed drive, 7.5 hp, 600 V three phase, ATV630 variable speed drive, 10 hp, 600 V three phase, ATV630 variable speed drive, 15 hp, 600 V three phase, ATV930 variable speed drive, 3 hp, 600 V three phase, ATV930 variable speed drive, 5 hp, 600 V three phase, ATV930 variable speed drive, 7.5 hp, 600 V three phase, ATV930 variable speed drive, 10 hp, 600 V three phase, ATV930 variable speed drive, 15 hp, 600 V three phase |
| nedded quantity | 1 |
| Electrical connection | Bare wires diameter: 9 mm |
| Maximum motor cable length | 300 m shielded cable P motor 2.2…7.5 kW at 200...240 V 1, 300 m unshielded cable P motor 2.2…7.5 kW at 200...240 V 1, 150 m shielded cable P motor 11…22 kW at 200...240 V 1, 300 m unshielded cable P motor 11…22 kW at 200...240 V 1, 160 m shielded cable P motor 0.75…18.5 kW at 380...480 V 1, 200 m unshielded cable P motor 0.75…18.5 kW at 380...480 V 1, 140 m shielded cable P motor 22…30 kW at 380...480 V 1, 170 m unshielded cable P motor 22…30 kW at 380...480 V 1, 75 m shielded cable P motor 2.2…7.5 kW at 500...600 V 1, 150 m unshielded cable P motor 2.2…7.5 kW at 500...600 V 1, 65 m shielded cable P motor 2.2…30 kW at 500...690 V 1, 100 m unshielded cable P motor 2.2…30 kW at 500...690 V 1, 150 m shielded cable P motor 2.2…7.5 kW at 500...690 V 2, 250 m unshielded cable P motor 2.2…7.5 kW at 500...690 V 2, 100 m shielded cable P motor 2.2…30 kW at 500...690 V 1, 150 m unshielded cable P motor 2.2…30 kW at 500...690 V 1, 97 m shielded cable P motor 37 kW at 380...480 V 1, 166 m unshielded cable P motor 37 kW at 380...480 V 1 |
| dv/dt | 500 V/µs max at 400 V, 750 V/µs max at 500 V, 1000 V/µs max at 690 V |
| Thermal losses | 350 W |
| maximum drive output frequency | 100 Hz |
| Protection type | Thermal protection by temperature-controlled switch, tripping temperature: 125 °C for <250 V AC, <0.5 A |
| Ambient air temperature for operation | -10…50 °C |
| Net weight | 10 kg |
| IP degree of protection | IP20 (with kits VW3A9612,613), IP00 |
| Ambient air temperature for storage | -25…70 °C |
Packaging
| Package 1 | 1 PCE, 28.000 cm × 26.500 cm × 28.000 cm (L × W × H), 9.555 kg |
| Package 2 | 8 S06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 90.816 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A5103: frequently asked questions
When can VW3A5103 be shipped?
VW3A5103 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A5103 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A5103 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A5103, subject to availability and destination.
