Schneider Electric VW3A5219

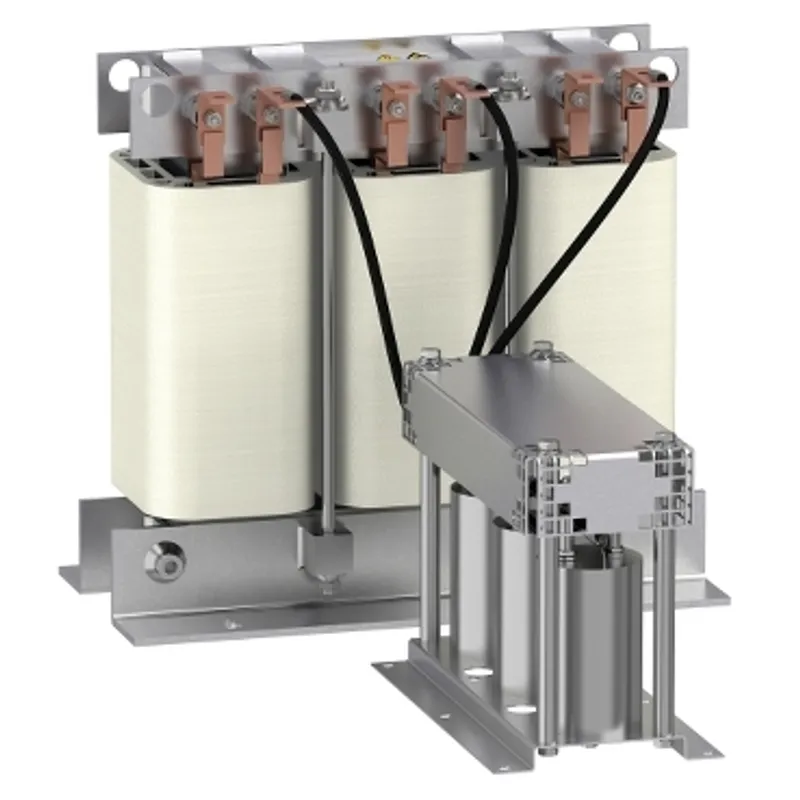

Sinus filter - 115 A - for Altivar Process variable speed drives
- MPN
- VW3A5219
- EAN
- 3606480659843
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A5219?
Schneider Electric Sinus filter - 115 A - for Altivar Process variable speed drives, manufacturer part number VW3A5219. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Product or component type | Sinus filter |
| Range compatibility | Altivar Process ATV600, Altivar Process ATV900 |
| Product specific application | Output filter |
| [In] rated current | 115 A |
| Thermal losses | 850 W, 115 °C |
| Product compatibility | ATV630 variable speed drive wall mount - 75 kW, 500...690 V three phase, ATV630 variable speed drive wall mount - 90 kW, 500...690 V three phase, ATV930 variable speed drive wall mount - 75 kW, 500...690 V three phase, ATV930 variable speed drive wall mount - 90 kW, 500...690 V three phase, ATV630 variable speed drive wall mount, 100 hp, 600 V three phase, ATV930 variable speed drive wall mount, 100 hp, 600 V three phase |
| Switching frequency | 2 kHz |
| Maximum output frequency | 70 Hz |
| maximum permissible voltage | 690 V AC |
| Electrical connection | Terminal |
| Max current | 1.5 x nominal current (duration = 60 s) |
| Net weight | 106 kg |
| IP degree of protection | IP00 |
| Pollution degree | 2 conforming to EN 50178 |
| Vibration resistance | 1 gn (f= 13…200 Hz) conforming to IEC 60068-2, 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -10…45 °C |
| Ambient air temperature for storage | -40…65 °C |
| Operating altitude | <= 1000 m without current derating, 1000...3000 m with current derating 1 % per 100 m |
| Standards | UL 508 |
Packaging
| Package 1 | 1 PCE, 72.000 cm × 62.000 cm × 75.800 cm (L × W × H), 136.000 kg |
