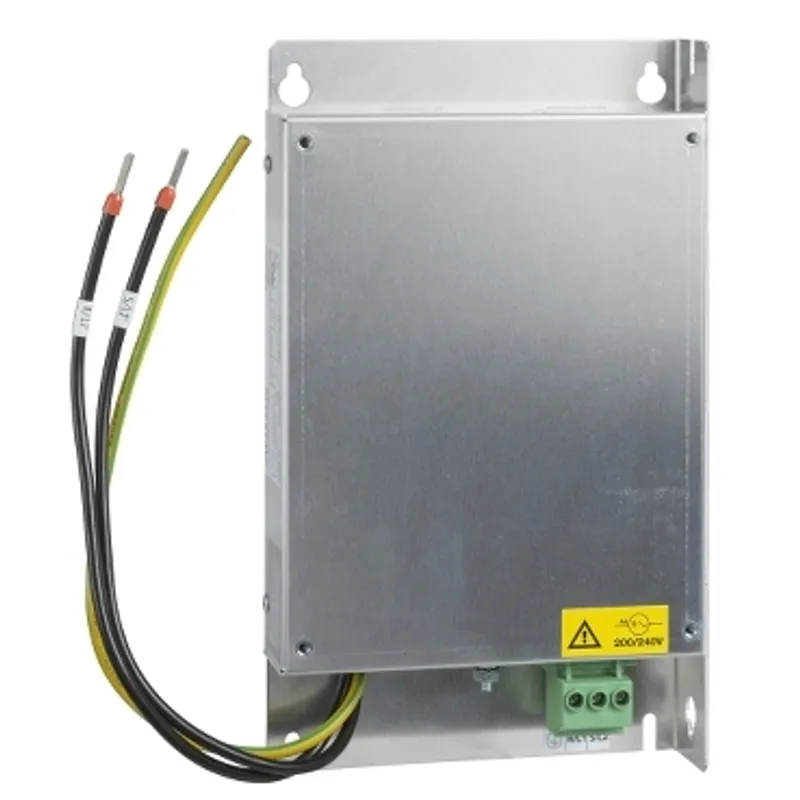

Schneider Electric VW3A4423
EMC input filter, Altivar, Lexium, 25A, 3 phases, 380 to 480V
- MPN
- VW3A4423
- EAN
- 3606480166907
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A4423?
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C2, C3. It weighs 0.775kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
Specifications
Specifications
| Range of product | Altivar, Lexium |
| Product or component type | EMC input filter |
| Range compatibility | Lexium 32, Lexium 52, Lexium 28, Altivar Machine ATV340 |
| Product compatibility | LXM28A, LXM32, three-phase, line current 14.6...18.1 A, Variable speed drive ATV340 at 2.2 kW, 380...480 V, Variable speed drive ATV340 at 3 kW, 380...480 V, Variable speed drive ATV340 at 4 kW, 380...480 V, Variable speed drive ATV340 at 5.5 kW, 380...480 V, Variable speed drive ATV340 at 7.5 kW, 380...480 V |
| Product specific application | Radio interference input filter |
| Mounting location | At variable speed drive side |
| Network number of phases | Three phase |
| Maximum cable distance between devices | 20 m conforming to IEC 61800-3 category C1, 50 m conforming to IEC 61800-3 category C2, 100 m conforming to IEC 61800-3 category C3 |
| [In] rated current | 25 A |
| Thermal losses | 15.8 W |
| Network rated voltage | 380…500 V |
| Tolerance | - 15...10 % |
| Net weight | 1.35 kg |
| Emc filter compatibility | Type 023 |
Packaging
| Package 1 | 1 PCE, 29.600 cm × 22.400 cm × 6.200 cm (L × W × H), 1.532 kg |
| Package 2 | 44 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 65.736 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A4423: frequently asked questions
When can VW3A4423 be shipped?
VW3A4423 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A4423 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A4423 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A4423, subject to availability and destination.
