VW3A3807PROFIsafe module, Altivar Process ATV900, Altivar 340, for variable speed drives
Schneider Electric VW3A4411

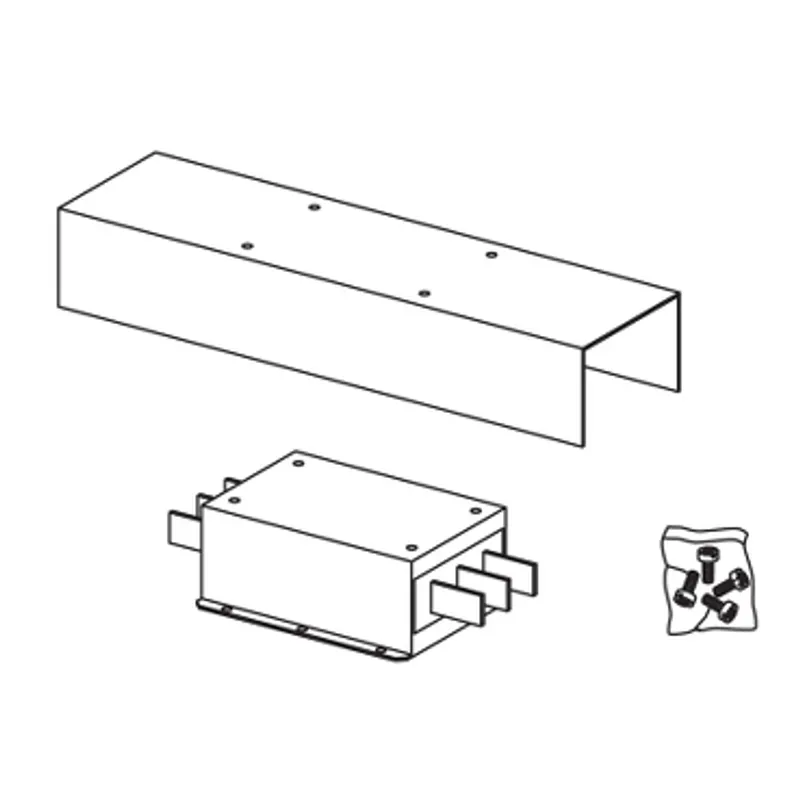

EMC radio interference input filter - 336/546 A - 125 W - 3-phase supply
- MPN
- VW3A4411
- EAN
- 3389119201360
- Category
- Altivar 71
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A4411?
Schneider Electric EMC radio interference input filter - 336/546 A - 125 W - 3-phase supply, manufacturer part number VW3A4411. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Range compatibility | Altivar Process ATV900, Altivar 71, Altivar Process ATV600, Altivar 71Q, Altivar 61Q, Altivar 61 |
| Product compatibility | ATV61HC22N4, ATV61HC25N4, ATV61HC31N4, ATV61HD90M3X, ATV61QC20N4, ATV61QC25N4, ATV61QC31N4, ATV71HC16N4, ATV71HC20N4, ATV71HC25N4, ATV71HC28N4, ATV71QC16N4, ATV71QC20N4, ATV71QC25N4, Variable speed drive ATV630 wall mount, motor: 220 kW, 380...480 V, Variable speed drive ATV630 wall mount, motor: 250 kW, 380...480 V, Variable speed drive ATV630 wall mount, motor: 315 kW, 380...480 V, Variable speed drive ATV930 wall mount, motor: 220 kW, 380...480 V, Variable speed drive ATV930 wall mount, motor: 250 kW, 380...480 V, Variable speed drive ATV930 wall mount, motor: 315 kW, 380...480 V |
| Product specific application | Radio interference input filter |
| [In] rated current | 546 A, 336 A |
| Thermal losses | 125 W |
| Network number of phases | Three phase |
| Electrical connection | M10 bars |
| Maximum motor cable length | 300 m shielded motor cable conforming to IEC 61800-3 category C2, 50 m shielded motor cable conforming to IEC 61800-3 category C1 |
| maximum earth leakage current | 500 mA at 400 V 50 Hz |
| power supply voltage | 200…240 V, 380…500 V |
| Tolerance | 10 % |
| Net weight | 25 kg, 22 kg |
| IP degree of protection | IP00, IP30with kits VW3A9601, 602 |
| Relative humidity | 0…93 % conforming to IEC 68-2-3 |
| Ambient air temperature for operation | -25…45 °C |
| Ambient air temperature for storage | -25…85 °C |
| Operating altitude | <= 1000 m without current derating, 1000...3000 m with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 61800-3 |
Packaging
| Package 1 | 1 PCE, 90.000 cm × 33.500 cm × 23.000 cm (L × W × H), 20.000 kg |
| Package 2 | 8 P12, 120.000 cm × 80.000 cm × 110.000 cm (L × W × H), 183.500 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A4411: frequently asked questions
When can VW3A4411 be shipped?
VW3A4411 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A4411 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A4411 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A4411, subject to availability and destination.
