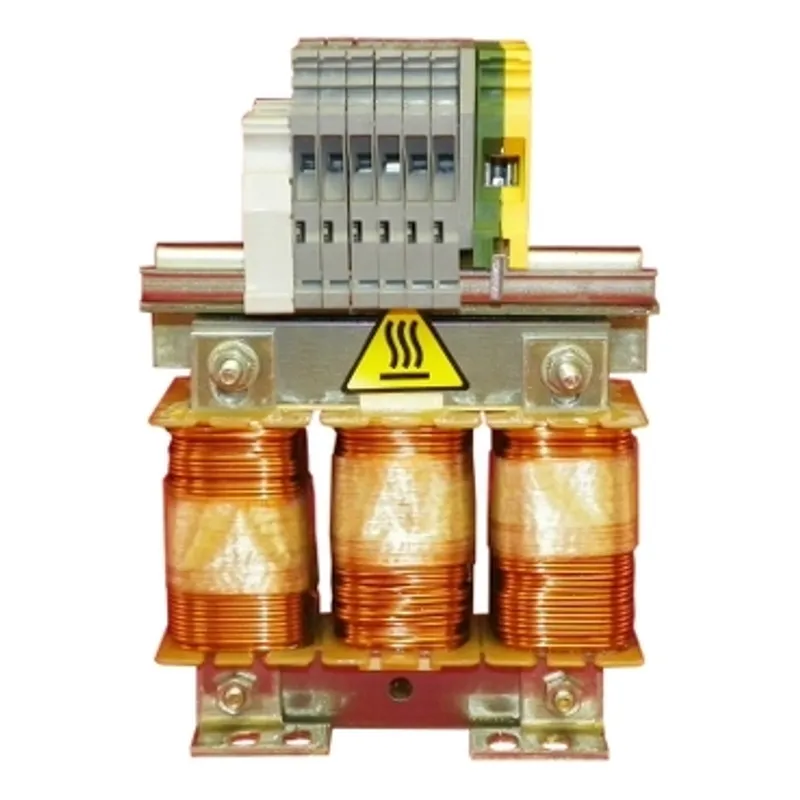

line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive

Name: line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive
Brand: Schneider Electric
SKU: VW3A4551

MPN: VW3A4551 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Altivar 31
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.5 kg

Shipping & availability

When can VW3A4551 be shipped?

VW3A4551 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VW3A4551 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VW3A4551 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A4551, subject to availability and destination.

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 4A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 10mH. It weighs 1.5kg and its dimensions are, 100mm wide, 135mm high, 60mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Specifications

Range of product	Altivar
Product or component type	Line/motor choke
Product compatibility	ATV12H018F1 - motor choke - 1 per drive, ATV12H018M2 - motor choke - 1 per drive, ATV12H018M3 - motor choke - 1 per drive, ATV12H037F1 - motor choke - 1 per drive, ATV12H037M2 - motor choke - 1 per drive, ATV12H037M3 - motor choke - 1 per drive, ATV12H055M2 - motor choke - 1 per drive, ATV12P037F1 - motor choke - 1 per drive, ATV12P037M2 - motor choke - 1 per drive, ATV12P037M3 - motor choke - 1 per drive, ATV12P055M2 - motor choke - 1 per drive, ATV312H018M3 - line choke - 1 per drive, ATV312H037M3 - line choke - 1 per drive, ATV312H037N4 - line choke - 1 per drive, ATV312H055M3 - line choke - 1 per drive, ATV312H055N4 - line choke - 1 per drive, ATV312H075M3 - line choke - 1 per drive, ATV312H075N4 - line choke - 1 per drive, ATV312H075S6 - line choke - 1 per drive, ATV312HU11N4 - line choke - 1 per drive, ATV312HU15N4 - line choke - 1 per drive, ATV312HU15S6 - line choke - 1 per drive, ATV32H037N4 - line choke - 1 per drive, ATV32H055N4 - line choke - 1 per drive, ATV32H075N4 - line choke - 1 per drive, ATV32HU11N4 - line choke - 1 per drive, ATV32HU15N4 - line choke - 1 per drive, ATV61H075M3 - line choke - 1 per drive, ATV61H075N4 - line choke - 1 per drive, ATV61HU15N4 - line choke - 1 per drive, ATV61HU30Y - line choke - 1 per drive, ATV61W075N4 - line choke - 1 per drive, ATV61W075N4C - line choke - 1 per drive, ATV61WU15N4 - line choke - 1 per drive, ATV61WU15N4C - line choke - 1 per drive, ATV71H037M3 - line choke - 1 per drive, ATV71H075M3 - line choke - 1 per drive, ATV71H075N4 - line choke - 1 per drive, ATV71HU15N4 - line choke - 1 per drive, ATV71HU22Y - line choke - 1 per drive, ATV71HU30Y - line choke - 1 per drive, ATV71P075N4Z - line choke - 1 per drive, ATV71PU15N4Z - line choke - 1 per drive, ATV71W075N4 - line choke - 1 per drive, ATV71WU15N4 - line choke - 1 per drive, ATV61HU22S6X - line choke - 1 per drive, ATV71HU15S6X - line choke - 1 per drive, ATV71HU22S6X - line choke - 1 per drive, ATV31C037N4 - line choke - 1 per drive, ATV31C055N4 - line choke - 1 per drive, ATV31C075N4 - line choke - 1 per drive, ATV31CU11N4 - line choke - 1 per drive, ATV31CU15N4 - line choke - 1 per drive, Variable speed drive ATV310 motor: 0.37 kW - line choke - 1 per drive, Variable speed drive ATV310 motor: 0.75 kW - line choke - 1 per drive, Variable speed drive ATV340 motor: 0.75 kW 380...480 V - line choke - 1 per drive, Variable speed drive ATV340 motor: 1.5 kW 380...480 V - line choke - 1 per drive, Variable speed drive ATV320 motor: 0.37 kW 380...500 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 0.55 kW 380...500 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 0.75 kW 380...500 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 1.1 kW 380...500 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 1.5 kW 380...500 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 0.18 kW 200...240 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 0.37 kW 200...240 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 0.55 kW 200...240 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 0.75 kW 200...240 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 0.75 kW 525...600 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 1.5 kW 525...600 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 2.2 kW 525...600 V - three phase - line choke - 1 per drive, Variable speed drive ATV630 motor: 2.2 kW 500...690 V - three phase - line choke - 1 per drive, Variable speed drive ATV630 motor: 3 kW 500...690 V - three phase - line choke - 1 per drive, Variable speed drive ATV630 motor: 4 kW 500...690 V - three phase - line choke - 1 per drive, Variable speed drive ATV930 motor: 2.2 kW 500...690 V - three phase - line choke - 1 per drive, Variable speed drive ATV930 motor: 3 kW 500...690 V - three phase - line choke - 1 per drive, Variable speed drive ATV930 motor: 4 kW 500...690 V - three phase - line choke - 1 per drive, Variable speed drive ATV630 motor: 600 V - three phase - line choke - 3 hp - 1 per drive, Variable speed drive ATV930 motor: 600 V - three phase - line choke - 3 hp - 1 per drive, Variable speed drive ATV310L motor: 0.75 kW, Variable speed drive ATV310L motor: 1.5 kW, Variable speed drive ATV310L motor: 2.2 kW, Variable speed drive ATV310L motor: 3.0 kW, Variable speed drive ATV310L motor: 4.0 kW, Variable speed drive ATV310L motor: 5.5 kW
number of phases	Three phase
Range compatibility	Altivar 61, Altivar 312, Altivar Process ATV900, Altivar 32, Altivar 312 Solar, Altivar Process ATV600, Altivar 31C, Lexium 62, Easy Altivar 310, Altivar Machine ATV340, Altivar Machine ATV320, Altivar 71, Altivar 12, Easy Altivar 310L
Device application	Reduction of current harmonics
Value of inductance	10 mH
[In] rated current	4 A
Thermal losses	45 W
Electrical connection	Terminal 2.5 mm² / AWG 12, 0.4…0.6 N.m
power supply frequency	50...60 Hz
Max current	1.65 x nominal current (duration = 60 s)
Maximum voltage drop at rated load	5 %
Electrical insulation class	Class F
Minimum clearance distance	5.5 mm IEC 60664
Leakage distance	11.5 mm conforming to IEC 60664
Net weight	1.5 kg
Width	100 mm
Height	135 mm
Depth	60 mm
Standards	VDE 0160 level 1, IEC 60076 (with HD398), EN 50178
IP degree of protection	Choke: IP00, Terminals: IP20
Environmental characteristic	3B1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3S1 conforming to IEC 721-3-3
Pollution degree	2 conforming to EN 50178
Vibration resistance	1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Relative humidity	0…95 %
Ambient air temperature for operation	45…55 °C (with current derating of 2 % per °C), 0…45 °C (without current derating)
Ambient air temperature for storage	-25…70 °C
Operating altitude	<= 1000 m without current derating, 1000...3000 m with current derating 1 % per 100 m
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.000 cm
Package 1 Width	20.000 cm
Package 1 Length	21.000 cm
Package 1 Weight	1.527 kg
Unit Type of Package 2	S06
Number of Units in Package 2	24
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	47.000 kg
Warranty (in months)	18
