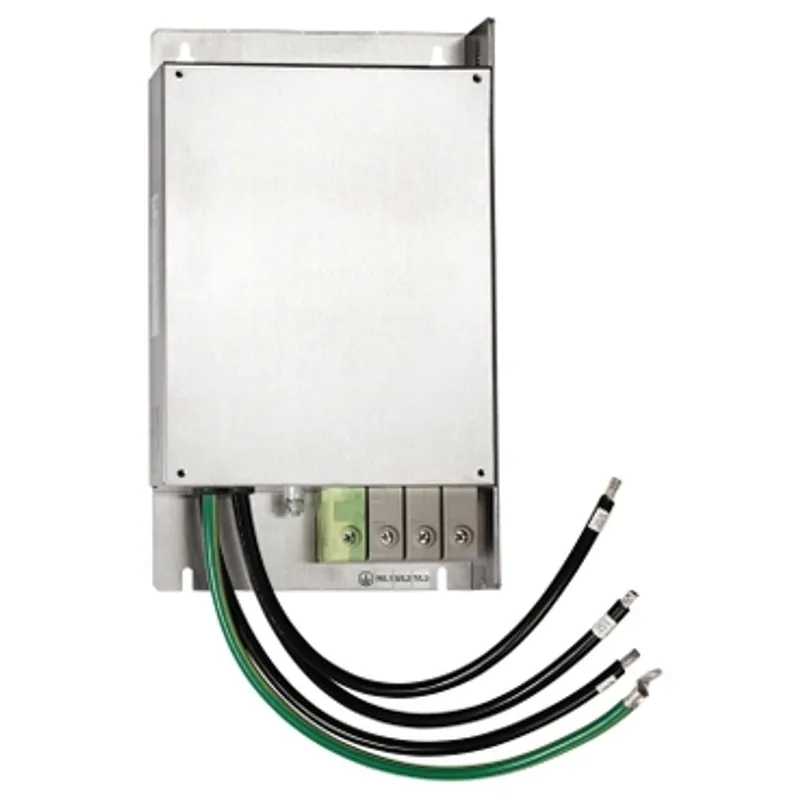

Schneider Electric VW3A4422
EMC input filter, Altivar, Lexium, 15A, 3 phases, 380 to 500V
- MPN
- VW3A4422
- EAN
- 3606480166891
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A4422?
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and ATV340, Lexium 28 and Lexium 52. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
Specifications
Specifications
| Range of product | Altivar, Lexium |
| Product or component type | EMC input filter |
| Range compatibility | Altivar 32, Altivar Machine ATV340, Lexium 32, Altivar Machine ATV320, Lexium 28, Lexium 52 |
| Product compatibility | LXM28A, ATV32, 380...500 V, 0.37...1.5 kW, LXM32, three-phase, line current 1.2...8.7 A, Variable speed drive ATV320...B at 0.37 kW, 380...500 V, three phase, Variable speed drive ATV320...B at 0.55 kW, 380...500 V, three phase, Variable speed drive ATV320...B at 0.75 kW, 380...500 V, three phase, Variable speed drive ATV320...B at 1.1 kW, 380...500 V, three phase, Variable speed drive ATV320...B at 1.5 kW, 380...500 V, three phase, Variable speed drive ATV320...B at 2.2 kW, 380...500 V, three phase, Variable speed drive ATV320...B at 3 kW, 380...500 V, three phase, Variable speed drive ATV320...B at 4 kW, 380...500 V, three phase, Variable speed drive ATV340 at 0.75 kW, 380...480 V, Variable speed drive ATV340 at 1.5 kW, 380...480 V |
| Product specific application | Radio interference input filter |
| Mounting location | At variable speed drive side |
| Network number of phases | Three phase |
| Maximum cable distance between devices | 20 m conforming to IEC 61800-3 category C1, 50 m conforming to IEC 61800-3 category C2, 100 m conforming to IEC 61800-3 category C3 |
| [In] rated current | 15 A |
| Thermal losses | 9.9 W |
| Network rated voltage | 380…500 V |
| Tolerance | - 15...10 % |
| Net weight | 0.9 kg |
| Emc filter compatibility | Type 022 |
Packaging
| Package 1 | 1 PCE, 23.200 cm × 15.800 cm × 5.200 cm (L × W × H), 933.000 g |
| Package 2 | 80 S06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 87.400 kg |
