Schneider Electric VW3A3809

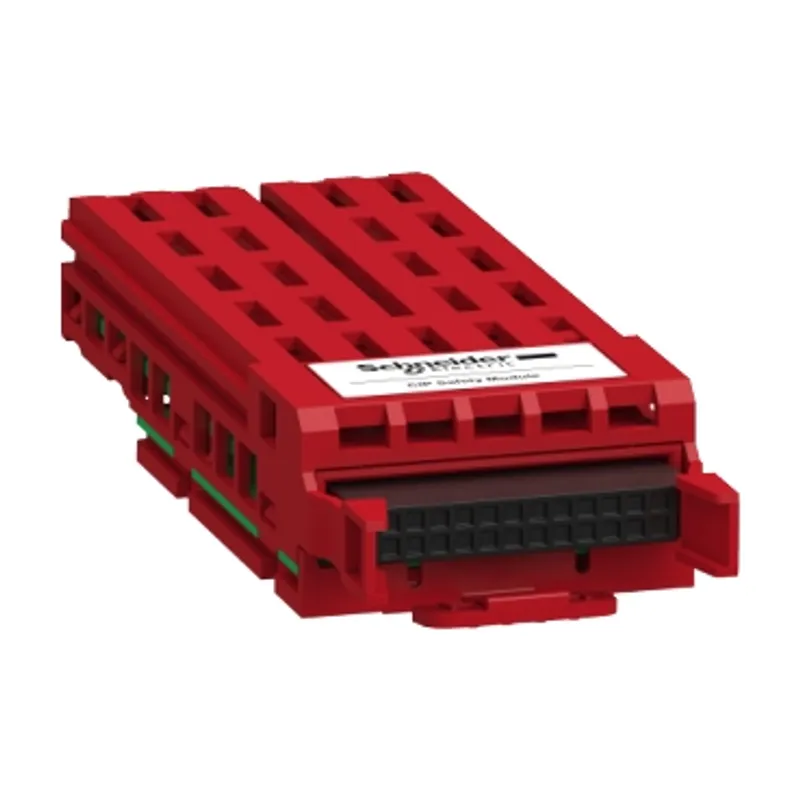

Safety over Ethernet IP option card, Altivar

MPN: VW3A3809
EAN: 3606482067882
Category: Altivar Machine ATV340

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric VW3A3809?

This safety module is an option for variable speed drives of Altivar range. It provides a fail-safe Ethernet connection between the drive and a Safey PLC using the Safety over Ethernet/IP protocol. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It includes the Safe Torque Off (STO) function SIL3/Ple. The CIP Safety module offers one Ethernet/IP (for CIP I/O) and 2 CIP Safety (one for each Safety input and Safety Output) connections. It allows Safety Open type 2a and type 2b communication protocols. It weights 0,150kg (0,331lb). Altivar Process drives include numerous advanced functions for the more complex applications in each market segment, the STO safety function is provided to help protect people and equipment. It is TUV NORD certified and conforms to the ODVA CT18-ES test. The STO safety function is compliant with the IEC/EN 61800-5-2 standard. The Altivar ATV900 drive must be equipped with an additional module support to be able to insert the CIP Safety module. Altivar Process ATV900 Drives with embedded services, high performance motor control, safety and application functionality to meet demanding applications including conveyors, cranes, mills and more in the Process Industry. Ideal for segments such as Mining & Metals, Oil & Gas, Food & Beverage, and Hoisting, with a power range from 0.75kW to 2600kW.

Specifications

Range of product	Altivar Machine ATV340, Altivar Process ATV900
Product or component type	CIP Safety over Ethernet IP module
Product specific application	Material working, Material handling, Architecture without suspended/vertical or pulling loads
Safety function	STO (safe torque off)
Input type	1 x CIP I/O, 1 x safety input, 1 x safety output
Safety level	Type 2a, Type 2b
Mounting support	Integrated in drive
Net weight	0.02 kg
Width	41 mm
Height	109 mm
Depth	23.25 mm
Standards	IEC/EN 61800-5-2
Product certifications	ODVA CT18-ES

Packaging

Package 1	1 PCE, 19.000 cm × 13.000 cm × 6.600 cm (L × W × H), 165.000 g
Package 2	16 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.372 kg
