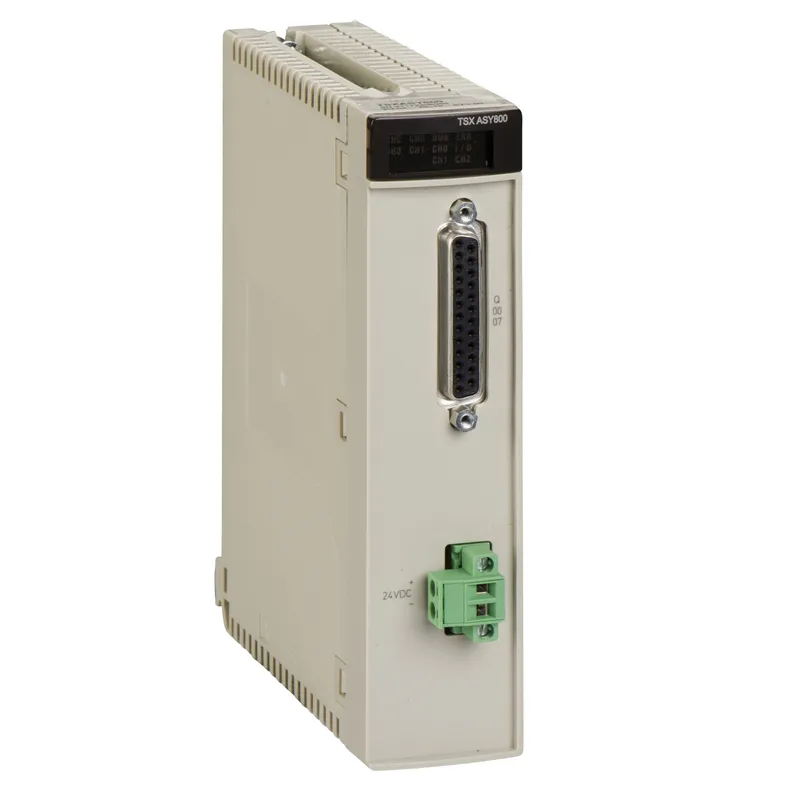

Schneider Electric TSXASY800 – analog output module Modicon Premium - 8 O multirange
Discontinued by Schneider Electric — we can still source the original TSXASY800 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Premium |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3389110876369 |
| Recommended replacement | BMXAMO0802 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXASY800 now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXASY800, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXAMO0802 as its successor — we can quote both.
When can TSXASY800 be shipped?
TSXASY800 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXASY800 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXASY800 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXASY800, subject to availability and destination.
Schneider Electric TSXASY800 — analog output module Modicon Premium - 8 O multirange. Discontinued by Schneider Electric; the manufacturer's successor is BMXAMO0802. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Premium Automation platform |
| Product or component type | Analog output module |
| Analogue output number | 8 |
| Analogue output type | Current: 0...20 mA; Current: 4...20 mA; Voltage: +/- 10 V |
| Analog/digital conversion | 13 bits + sign +/- 10 V; 13 bits 0...20 mA; 13 bits 4...20 mA |
Complementary
| Conversion time | 5 ms |
| Measurement resolution | 1.28 mV +/- 10 V; 2.56 µA 0...20 mA; 2.56 µA 4...20 mA |
| Electrical connection | 1 SUB-D 25 connector |
| Measurement error | 0.14 % of full scale +/- 10 V 25 °C; 0.21 % of full scale 0...20 mA 25 °C; 0.21 % of full scale 4...20 mA 25 °C; 0.28 % of full scale +/- 10 V 0...60 °C; 0.52 % of full scale 0...20 mA 0...60 °C; 0.52 % of full scale 4...20 mA 0...60 °C |
| Isolation between channels | Common point |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms |
| Protection type | Short-circuit protection; Overload protection |
| Output voltage limits | <= 30 V |
| Load impedance ohmic | < 600 Ohm 0...20 mA; < 600 Ohm 4...20 mA; > 1000 Ohm +/- 10 V |
| Maximum load inductance | 300 µH |
| Maximum load capacitance | 0.1 µF |
| Marking | CE |
| Current consumption | 200 mA at 5 V DC; 300 mA at 24 V DC |
| Module format | Standard |
| Terminals description PLC n°1 | (16)OUT_ANA_CUR#1; (13)IN_ANA_STD#; (24)OUT_ANA_VOLT#7; (8)OUT_ANA_CUR#4; (20)OUT_ANA_COM#4; (1)OUT_ANA_VOLT#0; (17)OUT_ANA_COM#2; (4)OUT_ANA_VOLT#2; (9)OUT_ANA_COM#5; (11)OUT_ANA_CUR#6; (19)OUT_ANA_CUR#3; PW_NEG#; (25)OUT_ANA_CUR#7; (3)OUT_ANA_COM#1; (12)OUT_ANA_COM#7; (5)OUT_ANA_CUR#2; (6)OUT_ANA_COM#3; (15)OUT_ANA_VOLT#1; (18)OUT_ANA_VOLT#3; (22)OUT_ANA_CUR#5; (10)OUT_ANA_VOLT#6; PW_POS#; (14)OUT_ANA_COM#0; (23)OUT_ANA_COM#6; (2)OUT_ANA_CUR#0; (7)OUT_ANA_VOLT#4; (21)OUT_ANA_VOLT#5 |
| Net weight | 0.46 kg |
Environment
| Standards | 93/68/EEC; CSA C22.2 No 213 Class I Division 2 Group A; CSA C22.2 No 142; 73/23/EEC; CSA C22.2 No 213 Class I Division 2 Group B; 89/336/EEC; CSA C22.2 No 213 Class I Division 2 Group D; UL 508; IEC 61131-2; 92/31/EEC; CSA C22.2 No 213 Class I Division 2 Group C |
| Product certifications | BV; RINA; DNV; LR; ABS; RMRS; GL |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation; 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSXASY800 |
