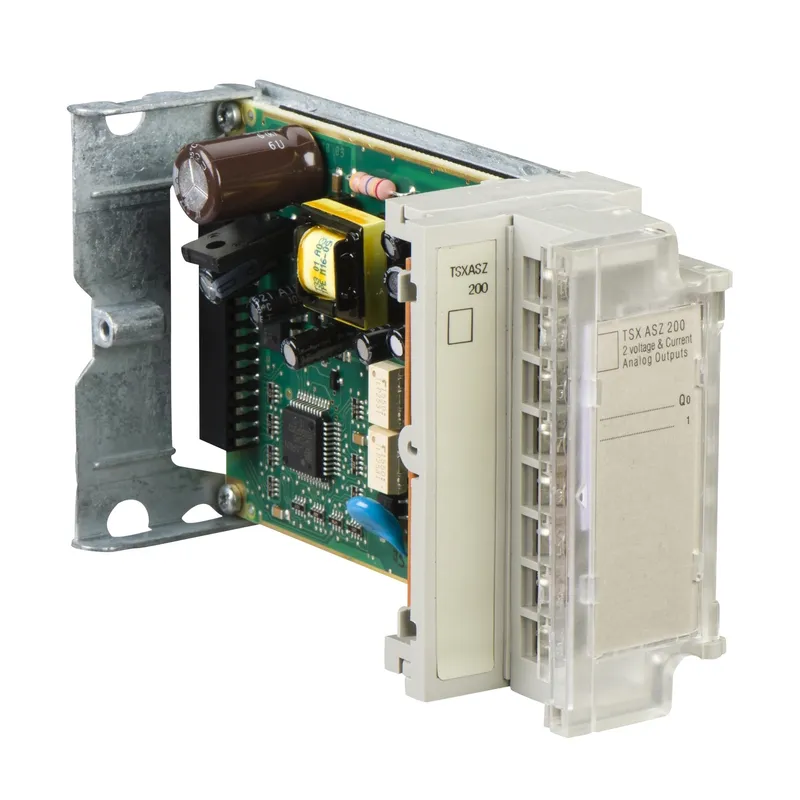

Schneider Electric TSXASZ200

TSX Micro - 2 analogue output +/- 10 V, 0-20, 4-20 mA

MPN: TSXASZ200
EAN: 3389110604528
Category: Modicon TSX Micro

Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original TSXASZ200 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXASZ200?

This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This analogue output module has 2 channels with 11bit analogue/digital conversion. It is an output module with a current consumption of 150mA. The analogue/digital conversion is 11bit + sign 0mA to 20mA or 4mA to 20mA, 11bit ±10V, measurement resolution is 0mA to 20mA or 4mA to 20mA ±10V. It weighs 0.2kg. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon TSX Micro automation platform
Product or component type	Analog output module
Number of channels	2
Analogue output type	0...20 mA or 4...20 mA; +/- 10 V

Complementary

Analog/digital conversion	11 bits + sign 0...20 mA or 4...20 mA; 11 bits +/- 10 V
Measurement resolution	0...20 mA or 4...20 mA; +/- 10 V
Output load	<= 0.6 Ohm 0...20 mA or 4...20 mA; >= 1 Ohm +/- 10 V
Protection type	Open-circuit 0...20 mA or 4...20 mA
Temperature drift	0.107 %/10 °C 0...20 mA or 4...20 mA; 0.083 %/10 °C +/- 10 V
Current consumption	150 mA
Isolation voltage	1500 V AC
Net weight	0.2 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet TSXASZ200PDF

TSXASZ200: frequently asked questions

Can I still buy the TSXASZ200 now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXASZ200, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can TSXASZ200 be shipped?

TSXASZ200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXASZ200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXASZ200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXASZ200, subject to availability and destination.
