Schneider Electric TSXAMZ600

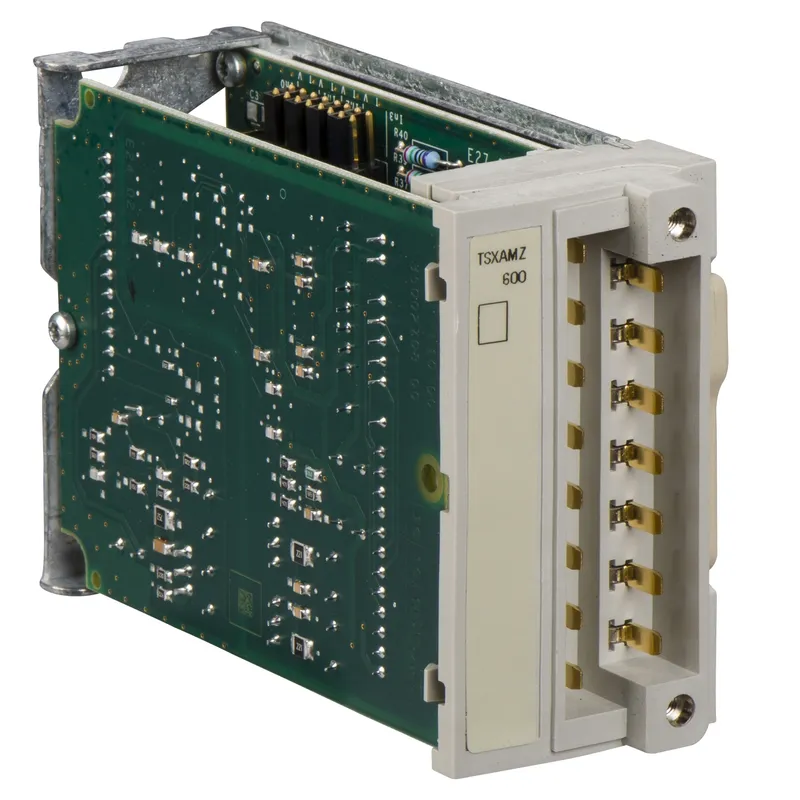

TSX Micro - analogue 4 Input/2 Output

MPN: TSXAMZ600
EAN: 3595862042093
Category: Modicon TSX Micro

Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original TSXAMZ600 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXAMZ600?

This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This analogue I/O module has 4 input channels, 2 output channels with 11bit analogue/digital conversion. It is an I/O module with a current consumption of 180mA and an isolation voltage of 1000V AC. It weighs 0.24kg. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon TSX Micro automation platform
Product or component type	Analogue I/O module
Number of channels	4 input module; 2 output module
Analogue input type	4...20 mA; 0...20 mA; +/- 10 V; 0...10 V
Analogue output type	4...20 mA; 0...20 mA; 0...10 V; +/- 10 V

Complementary

Analog/digital conversion	11 bits 0...10 V 0...10 V; 11 bits 0...20 mA or 4...20 mA 0...20 mA or 4...20 mA; 11 bits + sign +/- 10 V +/- 10 V
Measurement resolution	0...20 mA or 4...20 mA; 0...10 V or +/- 10 V
Acquisition period	16 ms 0...20 mA or 4...20 mA; 16 ms 0...10 V or +/- 10 V
Response time	400 µs +/- 10 V or 0...10 V; 400 µs 0...20 mA or 4...20 mA; 400 µs +/- 10 V
Output load	<= 0.6 Ohm 0...20 mA or 4...20 mA; >= 2 Ohm +/- 10 V or 0...10 V
Protection type	Short-circuit +/- 10 V or 0...10 V; Short-circuit 0...20 mA or 4...20 mA
Temperature drift	0.107 %/10 °C 0...20 mA or 4...20 mA; 0.054 %/10 °C 0...20 mA or 4...20 mA; 0.083 %/10 °C +/- 10 V or 0...10 V; 0.068 %/10 °C 0...10 V or +/- 10 V
Input impedance	250 Ohm 0...20 mA or 4...20 mA; 2.2 Ohm 0...10 V or +/- 10 V
Current consumption	180 mA
Isolation voltage	1000 V AC
Net weight	0.24 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet TSXAMZ600PDF

TSXAMZ600: frequently asked questions

Can I still buy the TSXAMZ600 now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXAMZ600, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can TSXAMZ600 be shipped?

TSXAMZ600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXAMZ600 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXAMZ600 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXAMZ600, subject to availability and destination.
