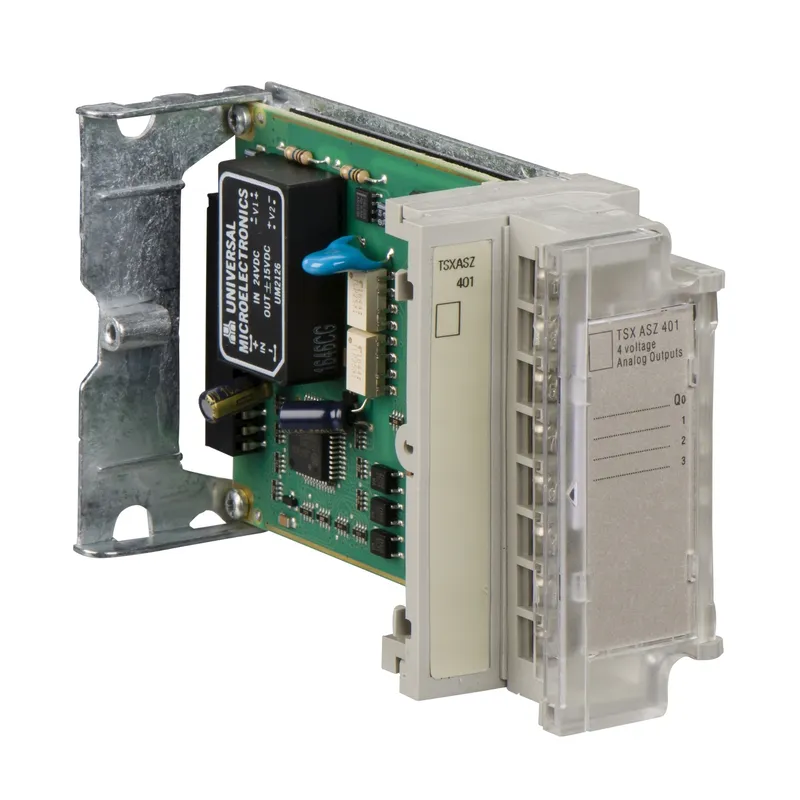

Schneider Electric TSXASZ401 – TSX Micro - 4 analogue output +/- 10 V, 0-10 V
Discontinued by Schneider Electric — we can still source the original TSXASZ401 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon TSX Micro |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3389110604535 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXASZ401 now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXASZ401, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSXASZ401 be shipped?
TSXASZ401 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXASZ401 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXASZ401 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXASZ401, subject to availability and destination.
Schneider Electric TSXASZ401 — TSX Micro - 4 analogue output +/- 10 V, 0-10 V (Modicon TSX Micro). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Analog output module |
| Number of channels | 4 |
| Analogue output type | +/- 10 V; 0...10 V |
Complementary
| Analog/digital conversion | 11 bits 0...10 V; 11 bits + sign +/- 10 V |
| Response time | 400 µs |
| Output load | >= 2 Ohm |
| Protection type | Short-circuit |
| Temperature drift | 0.096 %/10 °C |
| Current consumption | 90 mA |
| Isolation voltage | 1000 V AC |
| Net weight | 0.2 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSXASZ401 |
